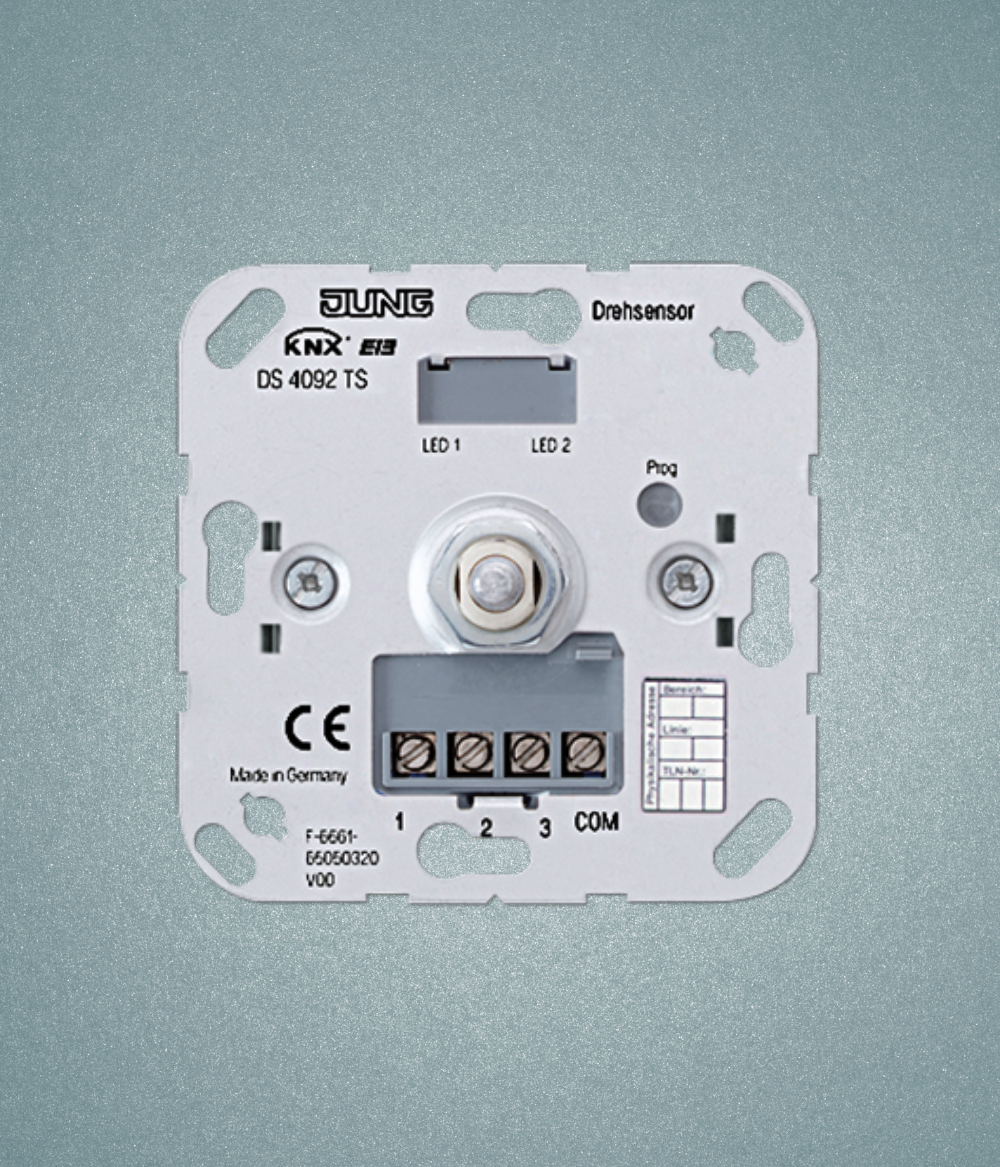

KNX ROTARY SENSOR

with integrated BCU
with integrated push-button interface 3-gang
with push-button function and acoustic signal
Function: switching, dimming, shutter control, value transmitter, scene extension

DS 4092 TS

Intended use

  • Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc.
  • Installation in flush box according to EN 60670-1



Product characteristics

  • Operation by turning or pressing the control button
  • Integrated push-button interface: Three binary inputs for potential-free contacts
  • Functions for control button and push-button interface:
    Switching, dimming, shutter control, value transmitters, calling up light scenes, etc.
  • Two red status LEDs
  • Acoustic signal transmitter, e.g. for status, operation or alarm message, ringtone or audible alert
  • Alarm function, optional with confirmation by pressing
  • Convenience function for dimming and value adjustment: Preselection of the increment by fast turning
  • Energy saving mode
  • Separated locking functions for control button and push-button interface



Centre plates:
AS / A ranges: ref.-no. A 1540 KO5 ..
CD range: ref.-no. CD 1540 KO5 ..
LS range: ref.-no. .. 1940 KO5 ..

Technical data

KNX medium: TP 256
Rated voltage KNX: DC 21 … 32 V SELV
Current consumption KNX: max. 12.5 mA
Push-button interface
    Polling voltage: approx. 20 V
    Cable length: max. 5 m
Ambient temperature: −25 … +55 °C
Storage/transport temperature: −25 … +55 °C
Relative humidity: max. 93 % (no condensation)
