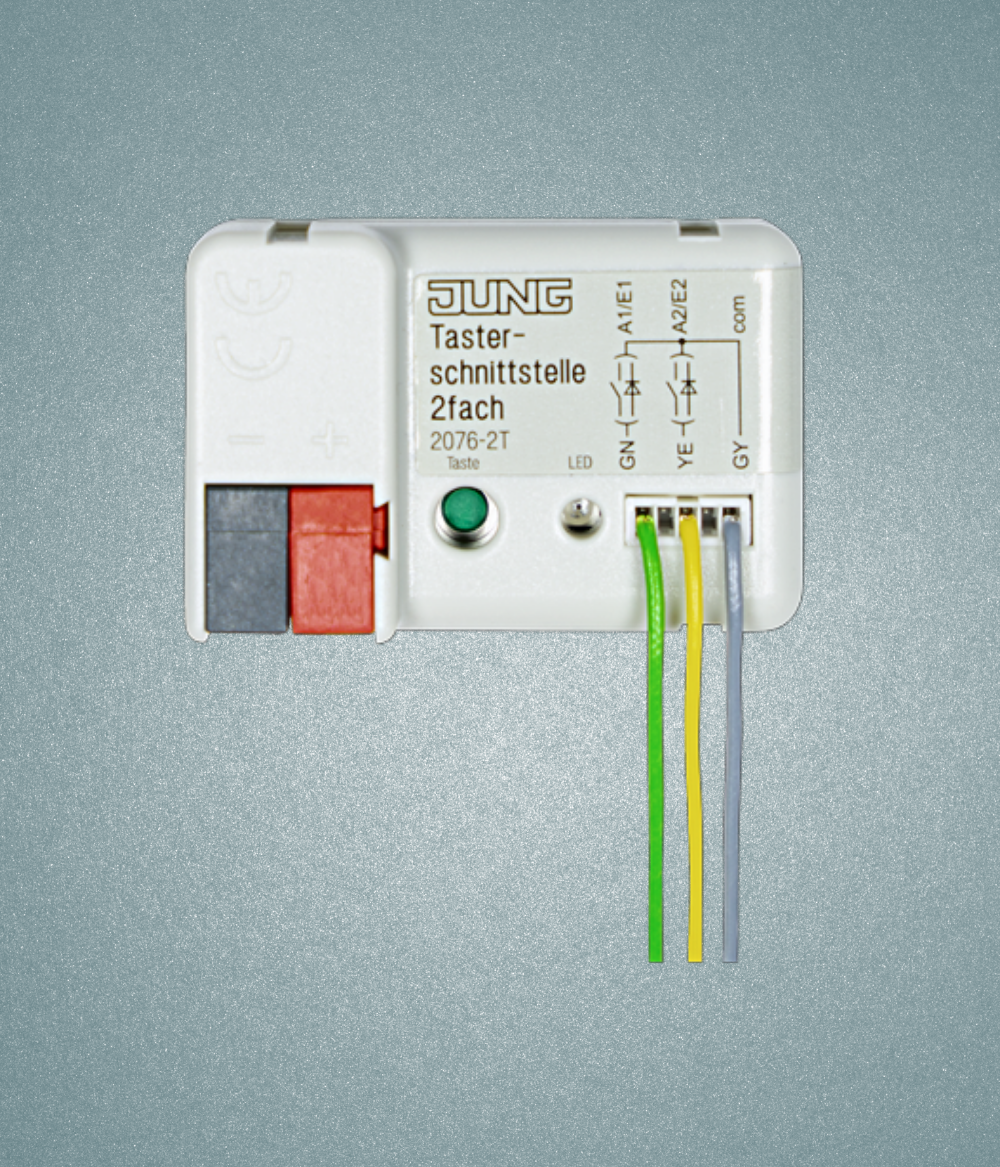

PUSH-BUTTON INTERFACE, 2-GANG

ETS product family: Input
Product type: Binary input

2076-2 T

Product characteristics

  • Can be used as binary input
  • Can be used as switching output, e.g. for LEDs, max. 0.8 mA

Technical data

KNX medium: TP 256
Inputs
    Number: 2
    Signal voltage: 5 V
    Signal current: > 1 mA
    Connection mode: branching terminal, 5 pins
    Length of input cable: 25 cm prefabricated, extendable to 5 m max
Outputs
    Output voltage: 5 V with 3.9 kΩ series resistor (open-circuit voltage)
    Output current: 2 mA for red low-current LED (at approx. 1.4 V)
Dimensions (W x H x D): 28 x 43 x 16 mm
