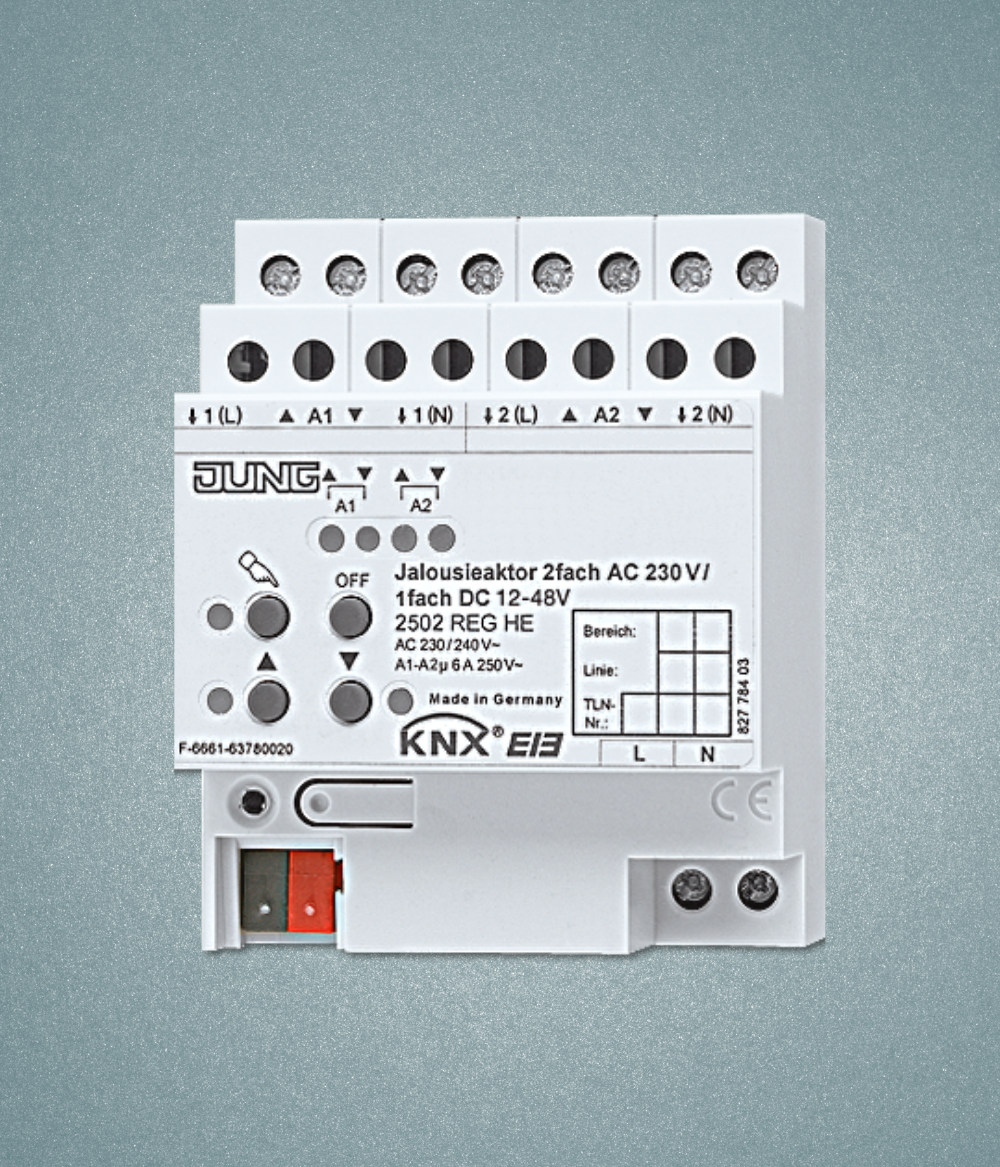

BLINDS ACTUATOR, 2-GANG AC 110-230 V, 1-GANG DC 12-48 V

rail mounting device, 4 rail units
with manual electronic operation and LED status indication
Only with the ETS 3.0d version or later versions the full functionality will be available.
ETS product family: Shutter
Product type: Shutter

2502 REGHE

Intended use

  • Switching of electrically driven blinds, shutters, awnings and similar hangings for AC 110-230 V mains voltage or DC 12-48 V extra-low voltage.
  • Mounting on DIN rail in distribution boxes



Product characteristics

  • Suitable for 110 … 230 V AC motors and 12 … 48 V DC motors
  • Automatic operation time detection for 230 V motors can be set
  • Slat position directly controllable
  • Acknowledgement of travelling state and slat position in bus and manual mode
  • Scene function
  • Top and bottom forced position via higher-level controller
  • Sun protection function

Technical data

KNX medium: TP 256
Outputs: 2 channels AC 110 … 230 V, 1 channel DC 12 … 48 V
Power supply mains: AC 110 V (−10 %) … 240 V (+10 %)
Mains frequency: 50/60 Hz
Connection
    Connection mode: screw terminals
    single wire: 1 x 0.5 … 4 mm²
    stranded without ferrule: 1 x 0.5 … 4 mm²
    stranded with ferrule: 1 x 0.5 … 2.5 mm²
Breaking capacity AC1: 6 A (230 V)
Switching current DC 12/24 V: 6 A
Switching current DC 48 V: 3 A
Max. blind/shutter running time: 20 min
Power loss: max. 4.5 W
Ambient temperature: −5 … +45 °C
Storing temperature: −25 … +70 °C
Approvals: VDE
