Intended use

  • Sensor for measuring weather data
  • Sensor signals are evaluated via additional electronics, e.g. analogue input (ref. no. 2214 REG A)
  • Detection of the horizontal wind speed
  • Vertical installation in outdoor areas, e.g. on walls of buildings, using the supplied mounting bracket

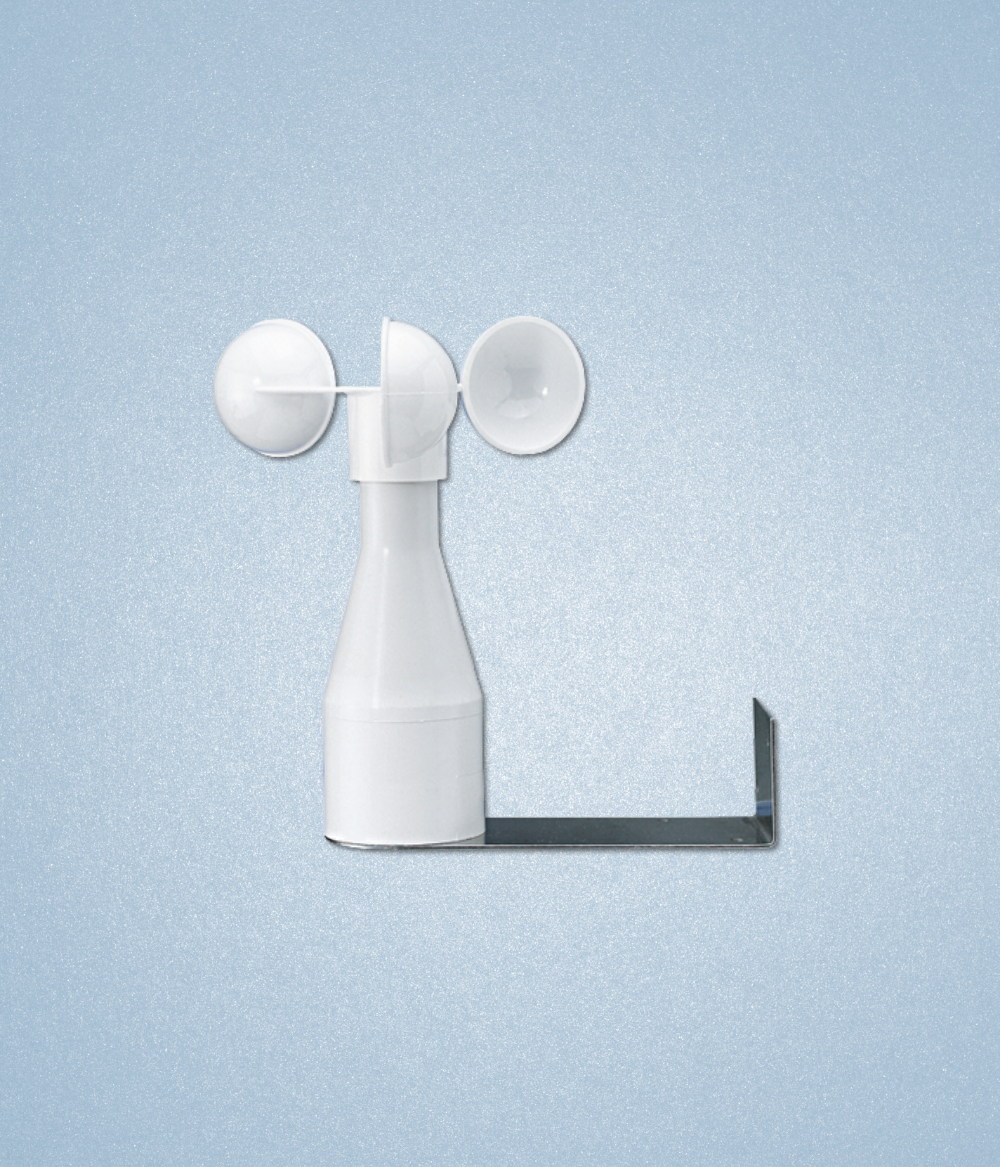

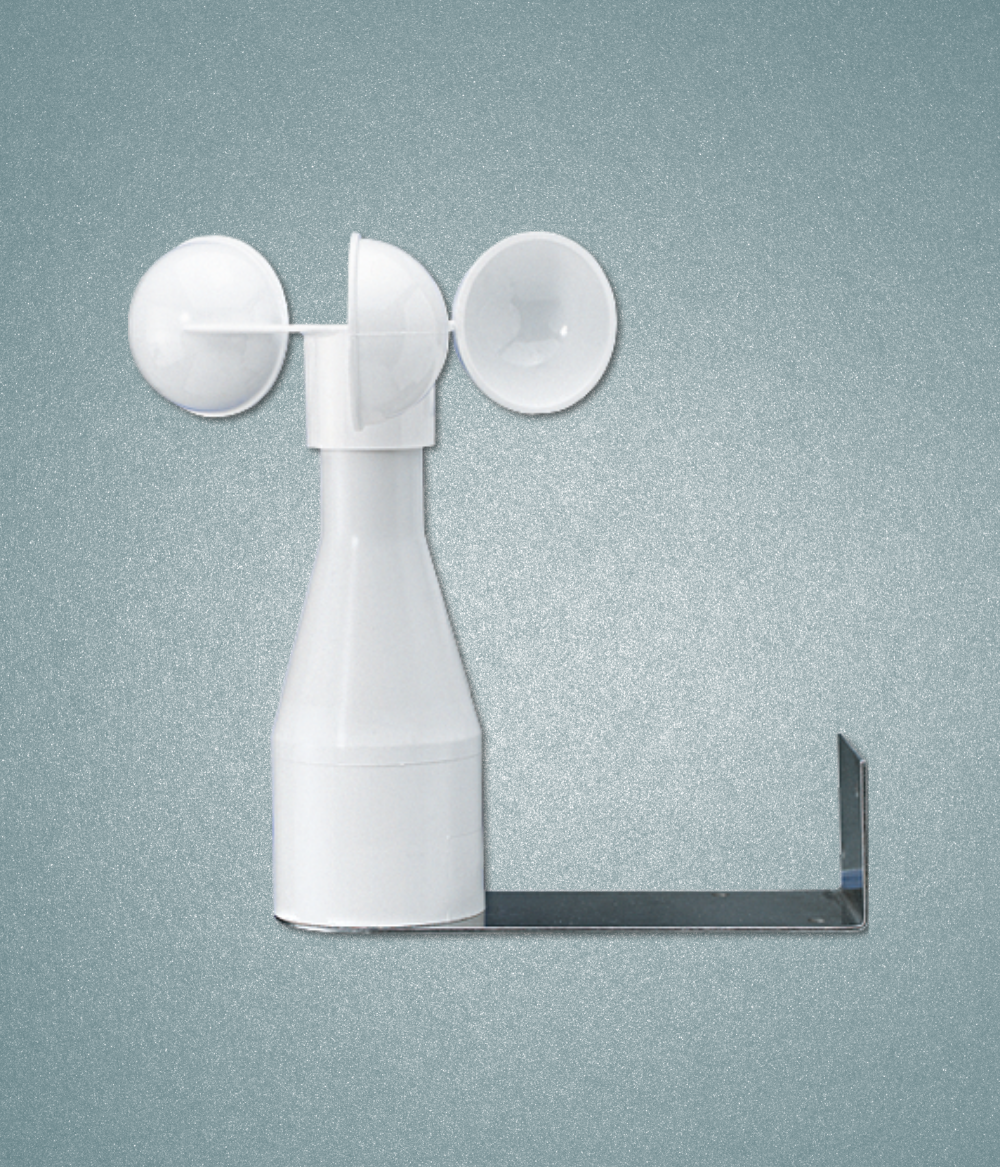

WS 10 W

Product characteristics

  • Measurement of the rotational speed of the anemometer
  • Output with analogue output signal 0 … 10 V
  • Maintenance-free
  • Operation without additional power supply possible
  • To avoid dew and condensation, use a separate power supply (ref-no. WSSV 10) for heating

Technical data

Power supply
    Rated voltage: DC 18 … 32 V SELV
    Current consumption: 6 … 12 mA
    Rated voltage: AC/DC 24 V
    Switch-on current: max. 1 A
Ambient temperature: −25 … +60 °C
Protection class: III
Protection level: IP 65 (in position for use)
Output signal
    Measuring range: 0.9 … 40 m/s
    Strain: max. 60 m/s (for short periods)
    Output voltage: DC 0 … 10 V
    Load: min. 1.5 kΩ
Cable type: LiYY 6 x 0.25 mm²
Cable length: approx. 3 m
can be extended up to: max. 100 m
Dimensions (Ø x H): 134 x 160 mm
