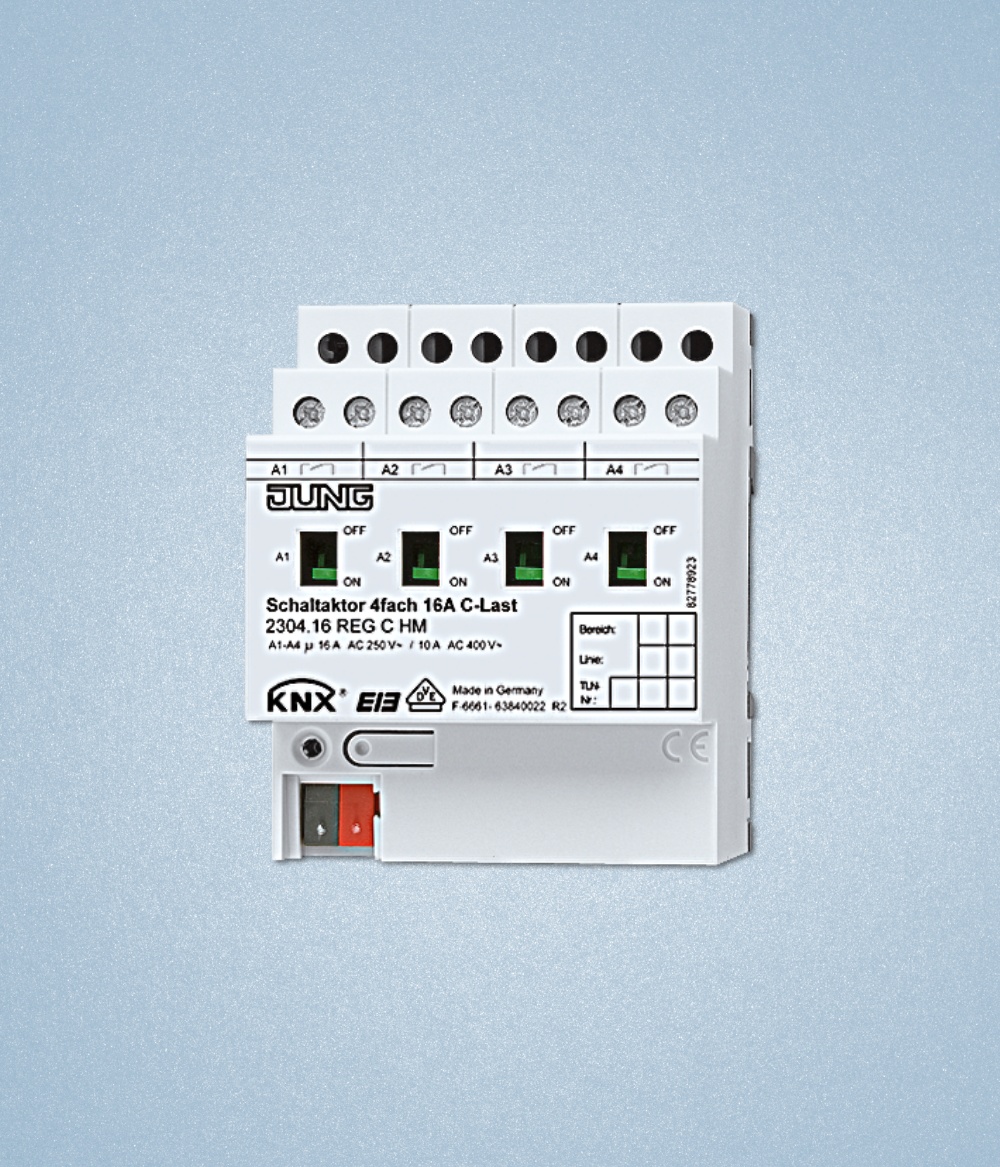

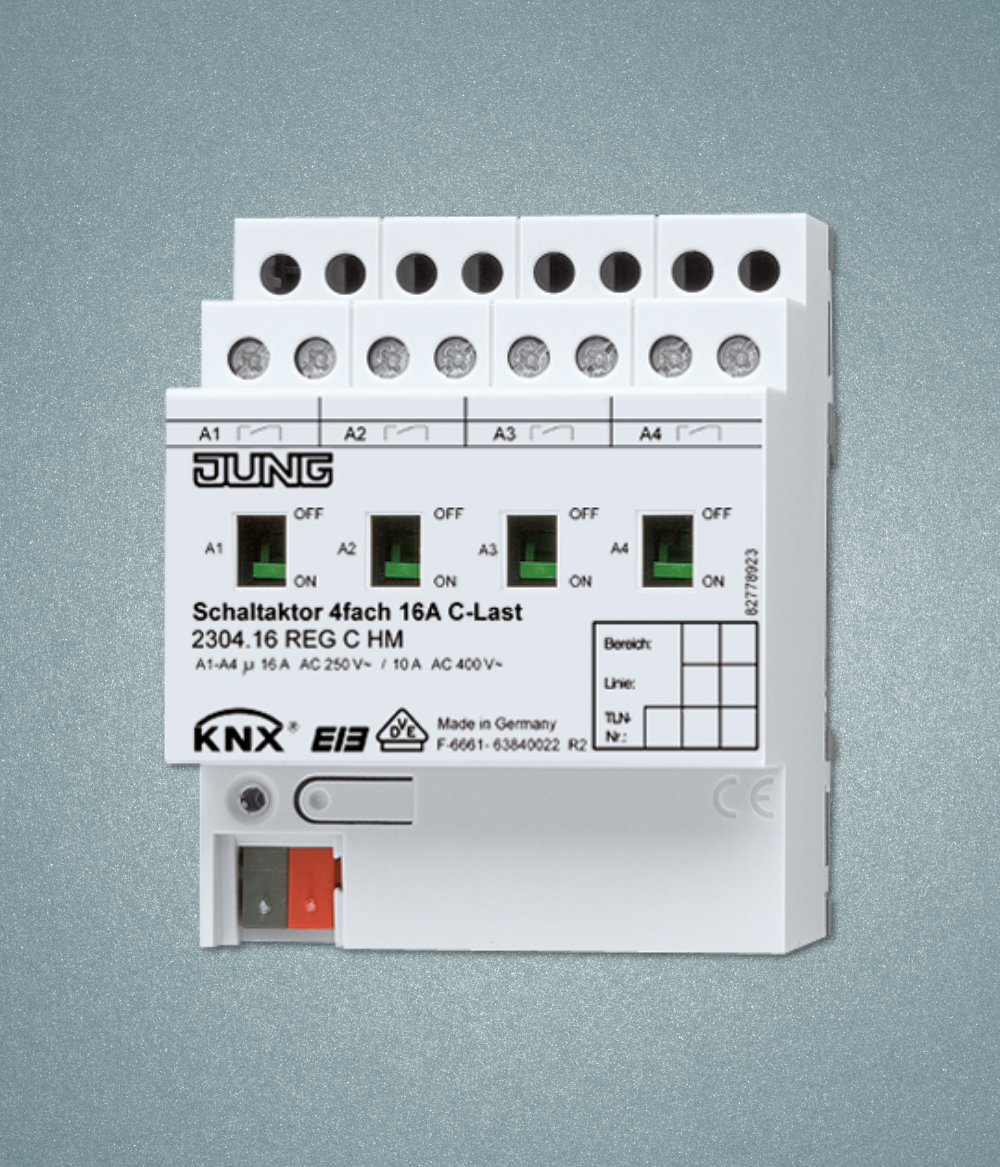

SWITCH ACTUATOR, 4-GANG, C-LOAD WITH CURRENT DETECTION AND MANUAL MECH. OPERATION, AC 110-230 V ~

with current detection
rail mounting device, 4 rail units
4 NO contacts with manual mechanical operation and status indicator
Only with the ETS 3.0d version or later versions the full functionality will be available.
ETS product family: Output
Product type: Binary output

2304.16 REGCHM

Intended use

  • Switching of 110 … 230¬†V¬†AC or 24¬†V¬†AC/DC electrical loads with floating contacts
  • Mounting on DIN rail according to EN¬†60715 in distribution boxes



Product characteristics

  • Manual switching of the relays is independent of the bus
  • Operation as NO or NC contacts
  • Logic operation and forcing function
  • Switching feedback (bus operation only)
  • Switch position display
  • Central switching function with collective feedback
  • Disabling function for each channel
  • Time functions: switch-on delay, switch-off delay, staircase lighting timer with pre-warning function
  • Integration into light scenes
  • Operating hours counter, configurable via bus
  • Input monitoring for cyclical updating with safety circuit
  • No additional power supply necessary
  • Current detection: measurement of the load current for each output
  • Monitoring of threshold values for load monitoring, e.g. for reporting load drop-out
  • Switching of capacitive loads and the resulting high switch-on currents

with current detection
rail mounting device, 4 rail units
4 NO contacts with manual mechanical operation and status indicator
Only with the ETS 3.0d version or later versions the full functionality will be available.
ETS product family: Output
Product type: Binary output

Intended use

  • Switching of 110 … 230¬†V¬†AC or 24¬†V¬†AC/DC electrical loads with floating contacts
  • Mounting on DIN rail according to EN¬†60715 in distribution boxes





Product characteristics

  • Manual switching of the relays is independent of the bus
  • Operation as NO or NC contacts
  • Logic operation and forcing function
  • Switching feedback (bus operation only)
  • Switch position display
  • Central switching function with collective feedback
  • Disabling function for each channel
  • Time functions: switch-on delay, switch-off delay, staircase lighting timer with pre-warning function
  • Integration into light scenes
  • Operating hours counter, configurable via bus
  • Input monitoring for cyclical updating with safety circuit
  • No additional power supply necessary
  • Current detection: measurement of the load current for each output
  • Monitoring of threshold values for load monitoring, e.g. for reporting load drop-out
  • Switching of capacitive loads and the resulting high switch-on currents

Technical data

KNX medium: TP 256
Rated voltage KNX: DC 21 … 32 V SELV
Connection, KNX: terminal
Power consumption KNX: typical 240 mW
Power loss: max. 4 W
Ambient temperature: ‚ąí5 … +45 ¬įC
Storage/transport temperature: ‚ąí25 … +70 ¬įC
Mounting width: 72 mm (4 rail units)

Connection, outputs

    Connection mode: screw terminals
¬†¬†¬†¬†single wire: 1 x 0.5 … 4 mm¬≤
¬†¬†¬†¬†stranded without ferrule: 1 x 0.5 … 4 mm¬≤
¬†¬†¬†¬†stranded with ferrule: 1 x 0.5 … 2.5 mm¬≤

Current detection (sine)

Mains frequency: 50/60 Hz
Measuring range: 0.25 … 16 A
Accuracy (‚ȧ 1 A): ¬Ī100 mA
Accuracy (> 1 A): ¬Ī8 % of curr. val.

Switching outputs

Contact type: floating relay contacts (őľ contact)
Switching voltage AC: AC 250 / 400 V
Switching current 230 V AC1: 16 A
Switching current 230 V AC3: 10 A
Switching current 400 V AC1: 10 A
Switching current 400 V AC3: 6 A
Fluorescent lamps: 16 AX
Ohmic load: 3680 W
Capacitive load: 16 A / 200 ¬ĶF
Switching voltage DC: DC 12 … 24 V
Switching current DC: 16 A
Min. switching current: 100 mA
Switch-on current 150 ¬Ķs: 600 A
Switch-on current 600 ¬Ķs: 300 A

Lamp loads

Incandescent lamps: 3680 W
HV halogen lamps: 3680 W

LV halogen lamps with

    inductive transformers: 2000 VA
    electronic transformers: 2500 W

Fluorescent lamps T5/T8

    non-compensated: 3680 W
¬†¬†¬†¬†parallel compensated: 2500 W / 200 ¬ĶF
¬†¬†¬†¬†lead-lag circuit: 3680 W / 200 ¬ĶF

Compact fluorescent lamps

    non-compensated: 3680 W
¬†¬†¬†¬†parallel compensated: 2500 W / 200 ¬ĶF

Mercury vapour lamps

    non-compensated: 3680 W
¬†¬†¬†¬†parallel compensated: 3680 W / 200 ¬ĶF
Approvals: VDE
