Key Features
- Amplified Channels: 11
- Processing Channels: 11 (in a 7.2.4 configuration)
- Built-in Amplified Setups: Supports a full 7.2.4 or 5.2.6 Dolby Atmos system right out of the box, as it has 11 amplifiers to power all 11 speakers.
- Supports Dolby Atmos, Dolby True-HD, DTS:X, DTS-Master, and is fully backward compatible with all previous formats, making it ideal for a complete home theater.
- Compatible with 4K, 3D, HDR, and Dolby Vision, ensuring it meets the latest video standards for exceptional picture clarity.

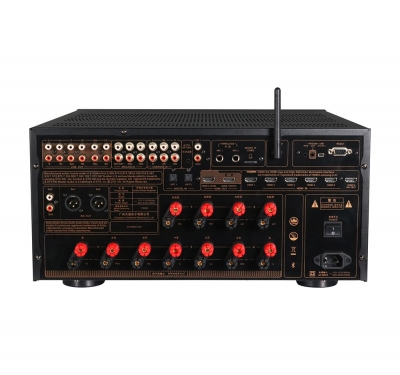

- Provides versatile device integration with 6 HDMI inputs, 2 HDMI outputs, coaxial, optical, and multiple analog inputs, plus HDMI ARC and CEC.
- Delivers a powerful 285W RMS per channel at 4 ohms, offering robust sound for all types of audio.
- Features an “Easy Test EQ” system that automatically adjusts audio settings to optimize sound for your room’s acoustics.
- Includes a built-in DSP for professional karaoke effects like echo and pitch shifting, enhancing your entertainment options.
- Equipped with Bluetooth and app control for convenient operation and settings management from your mobile device.
- Features a solid build quality, high-grade internal circuits, and a stylish design that complements any home theater setup.
- Includes a universal power supply (~100V-240V, 50/60Hz) for worldwide use.
- Support HDCP2.2.
- Support 4K/60Hz, RGB 4:4:4, 18GHz full bandwidth HD video signal.
- Support 7.2.4 decoding output.
- Built-in 7.2.4 Karaoke effect, powerful DSP digital reverberation effect and anti-howling.
- Automatic acoustic test and compensation of room EQ, speaker distance, delay, and sound pressure.
- Built-in Bluetooth digital audio receiver.
- Built-in high-quality music player; support TF card and U disk audio file playback,
- Support FLAC, APE, WAV, MP3 and other lossless and lossless highly compressed audio formats.
- Support mobile phone App operation.
- OSD on screen English menu.
- Support speaker configurations from 2.0 to 7.2.4.
- Support 5.1 channel external mixing input, and support external reverb device.
- Built-in 11x160W (8Ω, RMS) high-power Hi-Fi amplifier.
- Support RS232 protocol.
