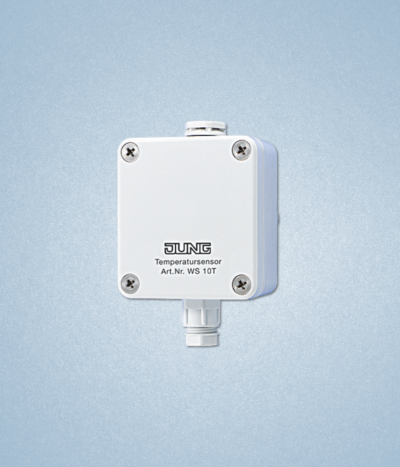

TEMPERATURE SENSOR

Rated voltage 24 V DC
range –30 °C … +70 °C, linear

WS 10 T

The brightness sensor is used for the measuring and evaluation of the brightness.

The dawn sensor is used for the measuring and evaluation of the brightness (dawn/dusk).

The temperature sensor is used for the measuring and evaluation of the temperature.

The value measured by the sensor is transmitted to an analogue output signal of 0 … 10 V by the electronics.

Connections:

Plastic housing with PG7 thread + screw and pressure / moisture compensation (recommended cable 3 x 0.25 mm2)
+UB: operating voltage 24 V DC
GND: corresponding ground
OUT: output 0 … 10 V

Technical data

Supply voltage: DC 24 V (DC 15 … 30 V)
Connection: screw terminals
Terminals for: 2.5 mm²
Connection cable: through screwed conduit entry PG 7
Recommended cable: 3 x 0,25 mm²
Cable length: max. 100 m
Output: 0 … 10 V DC (into a load of at least 1 kΩ, short-circuit protected)
Ambient temperature: −30 … +70 °C
Protection level: IP 65
Mounting position: optional
