Elipson ARCHITECT IN IC4

78.99 inc V.A.T.

The Elipson IC4 in-ceiling speaker is the most compact model in the Architect In range. Equipped with coaxial drivers, this 2-way speaker is designed to offer an optimal sonic environment.

Available on backorder

The Elipson IC4 in-ceiling speaker is part of the Architect IN range, a collection of visually discreet audio system components. This 2-way compact speaker is compatible with most hi-fi amplifiers and home theater receivers on today’s market. It handles immersive, multichannel formats while adding a vertical dimension to your home theater installation.

The in-wall and in-ceiling speakers in Elipson’s IN range have been designed for both private and public spaces. They are a testament to Elipson’s commitment to offering breathtaking audio quality. The IC4 may be used in a variety of settings: conference rooms, shopping malls, amphitheatres, restaurants, stores, hotels, offices, private screening rooms, schools, private home theaters, integrated hi-fi systems…

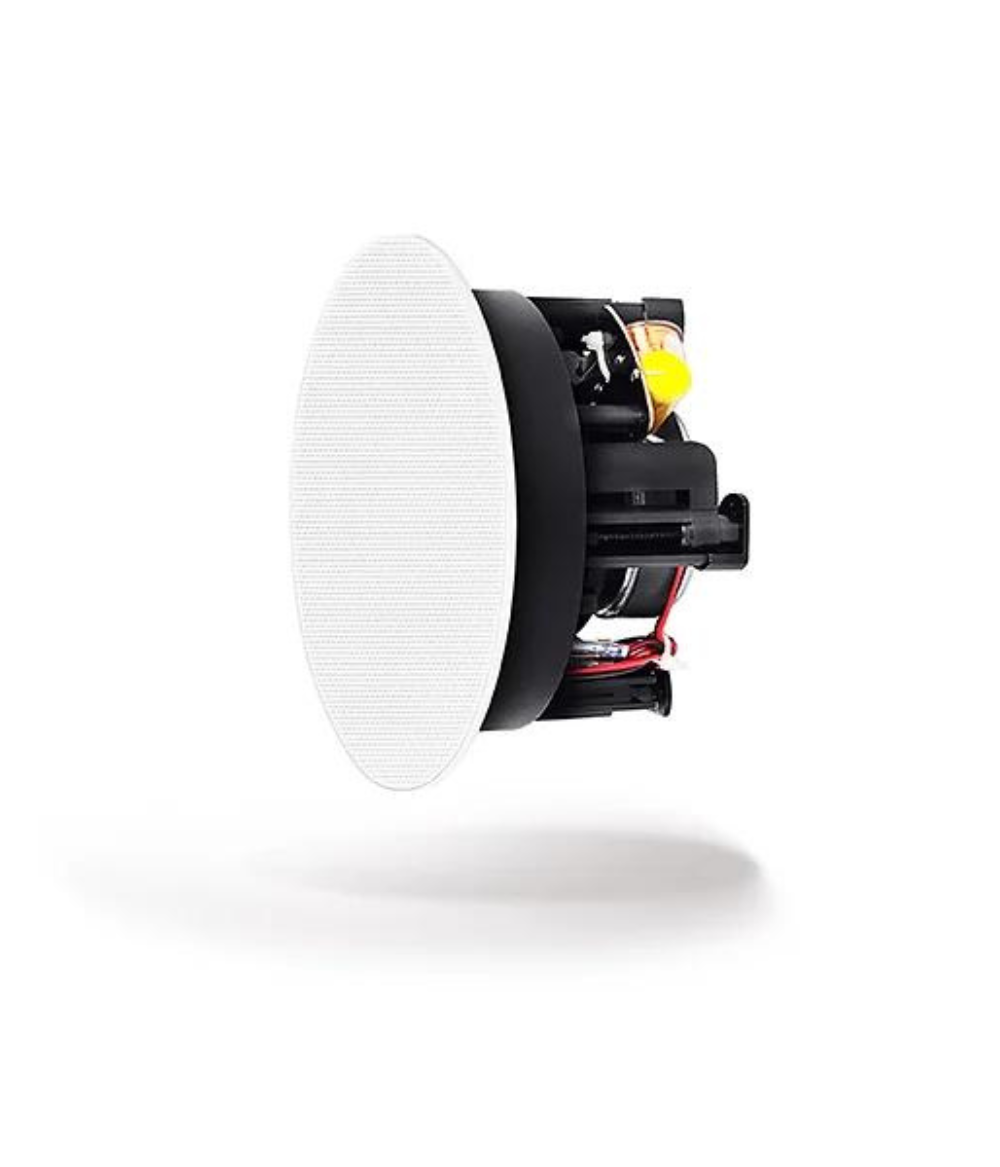

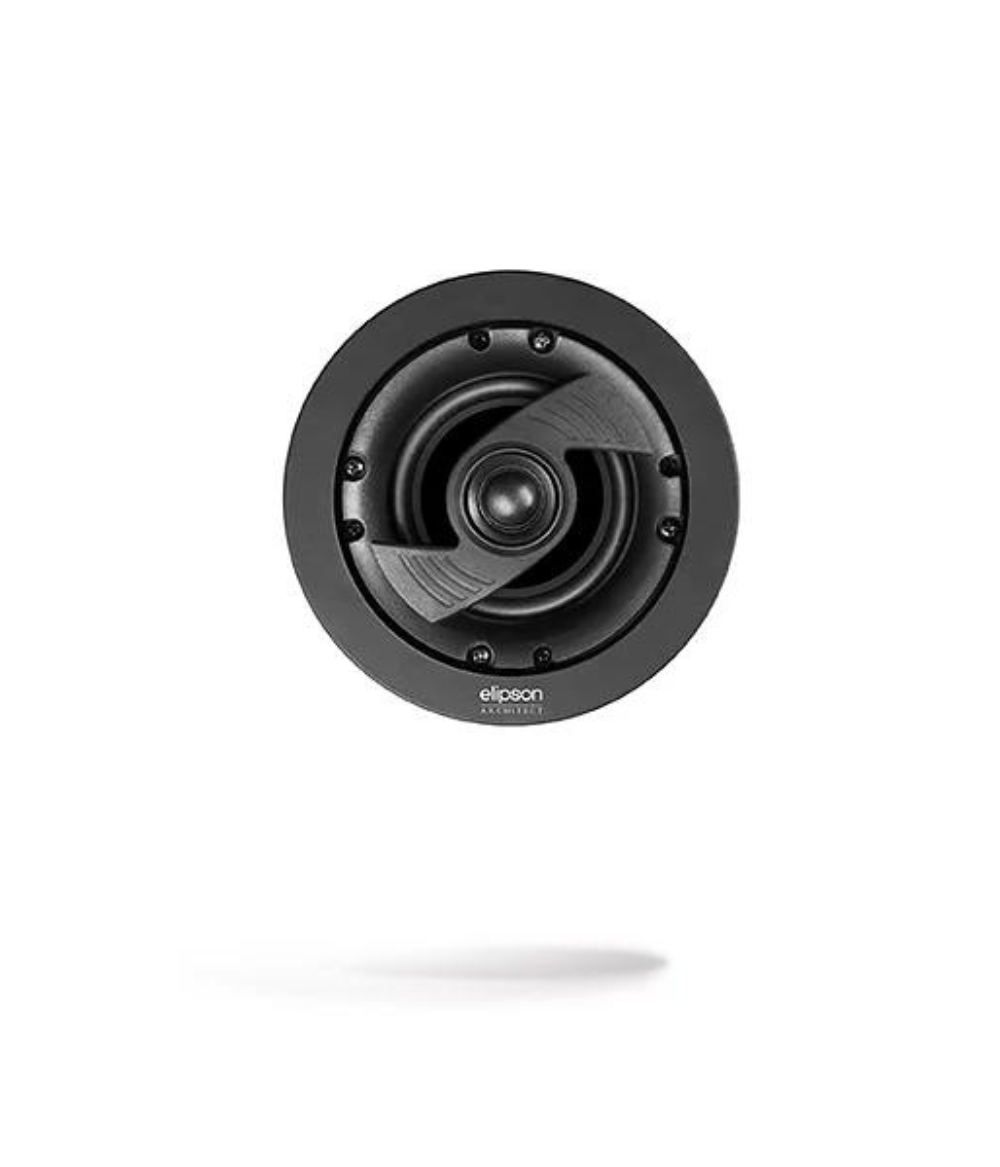

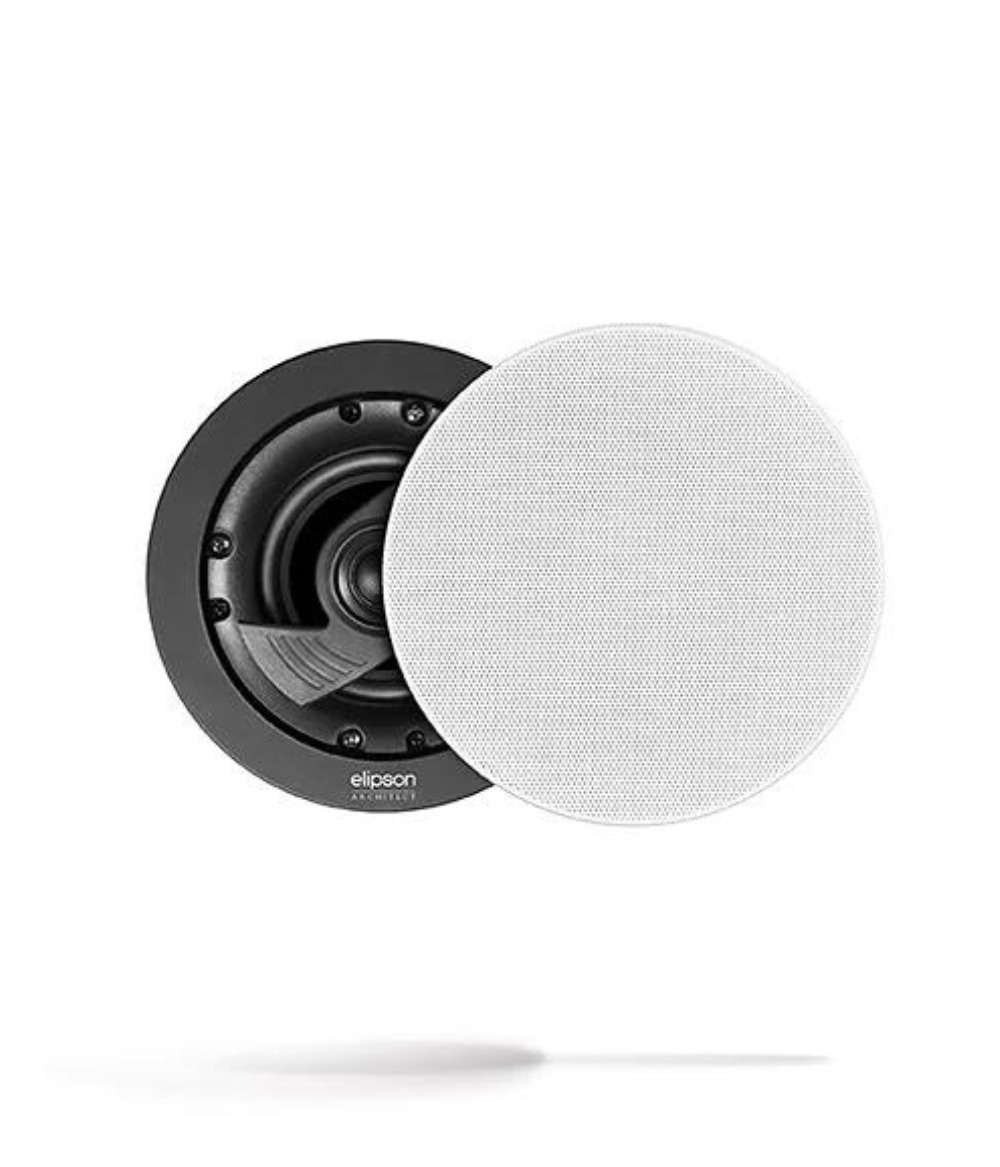

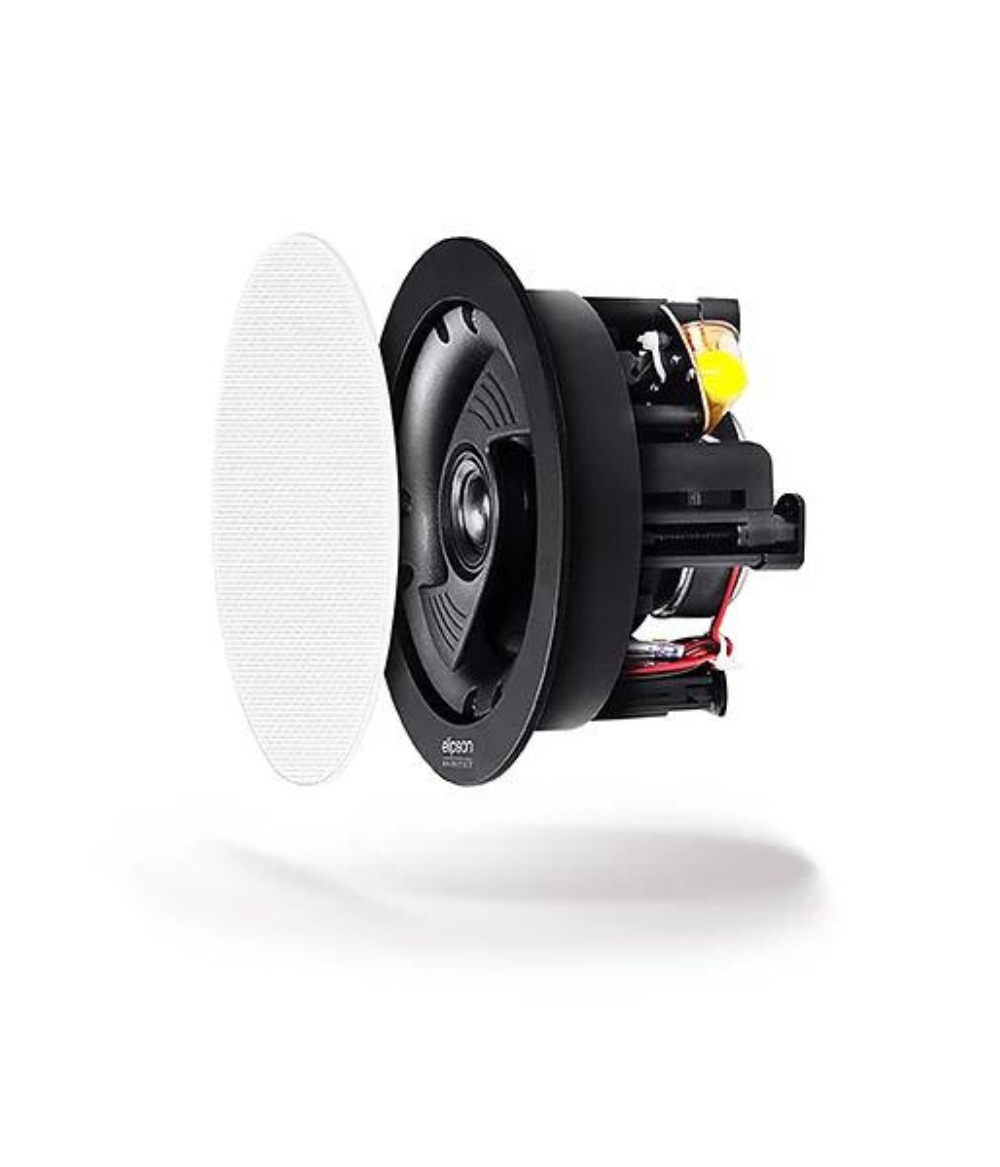

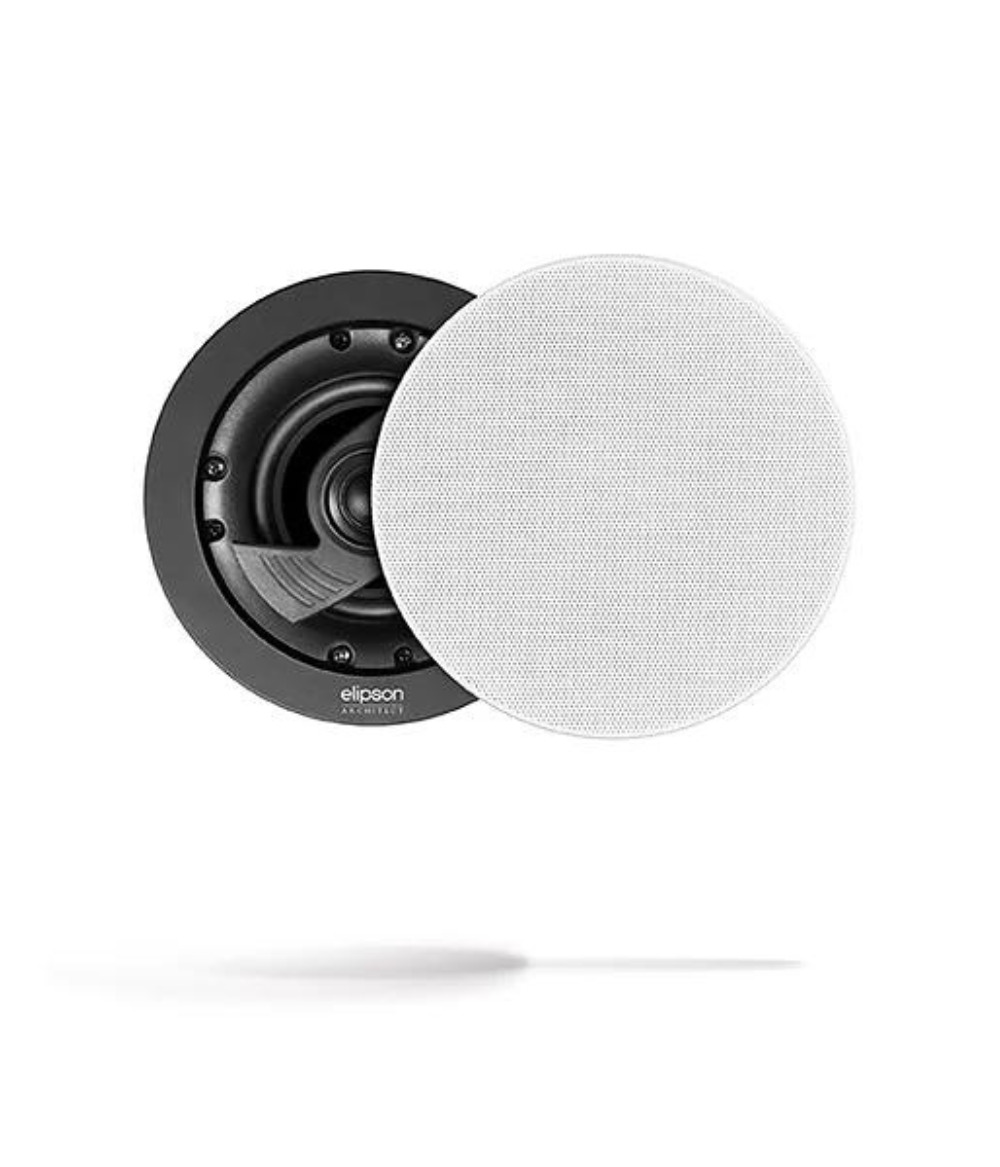

The Elipson IC4 in-ceiling speaker features a 2-way coaxial low-mid driver (10 cm) composed of cellulose fibre and two silk dome tweeters (19 mm) which can be adjusted in order to direct sound waves toward the listening area. The speaker’s white, magnetic grille may be painted to ensure perfect integration with your interior decor.

The IC4 speaker has a sensitivity rating of 84 dB and a maximum power handling of 80 W. With a frequency response ranging from 85 Hz to 20 kHz, this model is an ideal surround speaker solution for a home theater installation.

THE ARCHITECT RANGE

THE INTEGRATED SOUND


BUILT-IN SYSTEM

ELIPSON DISCRETENESS



INFINITE IN-CEILING

Taking up the aesthetic codes of the IN-CEILING, these  in-wall and in-ceiling loudspeakers allow you to provide  sound in large spaces. Developed in 2 way coaxial, the INF 6 and speakers are equipped with an 6″ and8” carbon fiber bass midrange driver, offering a rich midrange and deep, accurate bass. The 3/4″ and 1” titanium dome tweeter, which can be rotated by 30° in all directions, contribute to the richness of the sound

IN-CEILING SPEAKERS

This in-ceiling speaker system is designed for in-ceiling installation and can be powered by most hi-fi and home cinema amplifiers on the market.
5 models are available.

IN-WALL SPEAKERS

The IN-WALL series of speakers can be integrated into the walls of homes, communities and businesses. Elipson has concentrated all its know-how in these compact speakers with a stunning sound.
3 models are available.


BUILT-IN SYSTEM

ELIPSON DISCRETENESS



BELL

The Elipson Bell ceiling speakers are coaxial, 2-way bass-reflex speakers. These speakers are perfectly adapted to the sound system of large spaces with a good height under ceiling.

RAIN

The Elipson RAIN speakers are an ideal solution for providing effective sound for your indoor and outdoor living spaces without compromising on sound quality. This range of latest generation speakers is suitable for all types of environments, whatever the humidity conditions.

Speaker : In-Ceiling

Number of channels:2

Tweeter (treble):19 mm silk dome, 35 to 40° orientation in all directions

Bass :100 mm paper cone, rubber edge

Recommended amplifier:80W

Frequency Response (±3dB):85Hz – 20kHz

Cutoff frequency :2400Hz

Sensitivity:84dB / 1W / 1m

Impedance:8 Ohms

Dimensions:Ø181 x D92 mm

Cutting dimension Ø:138mm

Weight :1.1kg



PACKAGING(UNIT):
Dimensions: WxHxD : W232 x H120 x D215 mm
Weight: 2,75 kg

Pack contents :

  •  1 acoustic speaker
  • 1 aluminium grill
  • 1 cut-out template
Weight
2.75 kg
Dimensions
23.2 × 21.5 × 12 cm
