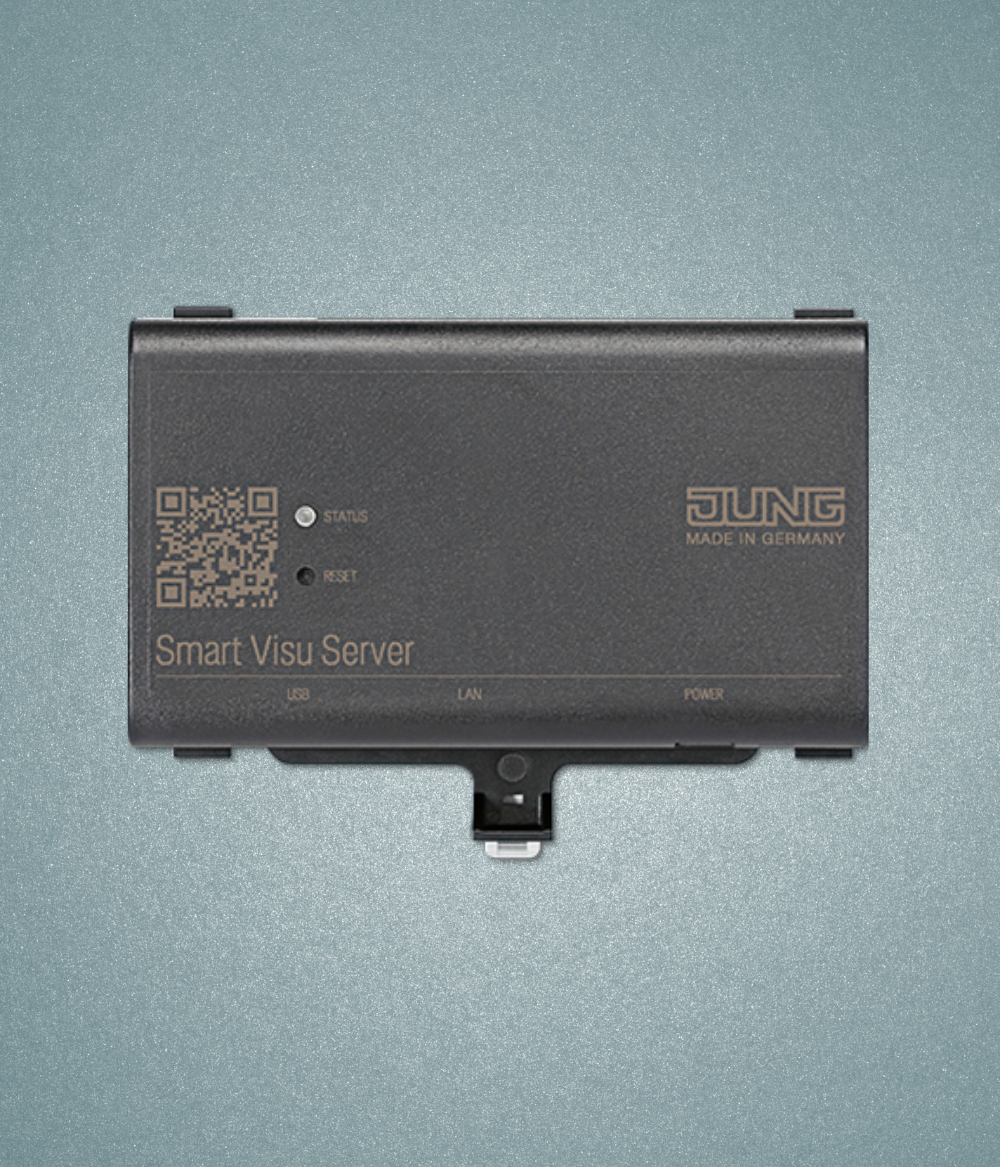

SMART VISU SERVER

with mounting plate for wall or rail mounting installation
including plug-in power supply

SV-SERVER

Intended use

  • Visualisation and operation of KNX systems via devices with HTML5 browser or app (iOS, Android), e.g. Smart Control (ref.-no.:¬†SC¬†5¬†SW,¬†SC¬†0081¬†U,¬†SC¬†10.1,¬†SC¬†15.1,¬†SC¬†19.1), smartphone, tablet, laptop, PC, etc.
  • Visualisation and operation of Philips Hue systems
  • Operation in local IP networks that support DHCP (Dynamic Host Configuration Protocol), or with static IP address (IPv4)
  • Operation indoors



Product characteristics

  • Web visualisation of KNX system for status indication and operation (SV-Home)
  • Access from max.¬†10¬†different clients to SV-Home recommended
  • Integrated web-based commissioning tool (SV-Control)
  • Easy to create a pre-configured user interface, optimised for domestic applications and small commercial facilities
  • Graphical control elements: symbols can be selected from supplied libraries
  • Import of group addresses (three-stage) via OPC import (ETS3, ETS4, ETS5)
  • Manual input of group addresses possible
  • 24 areas
  • 240 dynamic functions (max.¬†1200¬†data points)
  • 25 action groups
  • 250 configurable actions (max.¬†16¬†functions per action)
    – Customised
    – Switching times
    – Status logic
    – Depending on events
    – Astro
  • Creation of up to 24¬†users with different roles and rights
  • Storage of data (e.g. temperature values) and creation of diagrams (display of diagrams not possible with¬†SC¬†5¬†SW)
  • Connection to KNX bus via interfaces (ref.-no.¬†IPR¬†300¬†SREG,¬†IPS¬†300¬†SREG,¬†20320¬†1S¬†IPS¬†R), not included
  • Integration of Philips Hue systems in the KNX installation
  • Connection to Philips Hue via Philips Hue Bridge
  • Integration of SONOS loudspeakers in the KNX installation
  • Integration of Amazon Alexa voice control via MyJUNG account
  • Integration of Google Home voice control via MyJUNG account
  • Secure remote access via MyJUNG account
  • Update and upgrade compatible

Technical data

Rated voltage: DC 12 V SELV
Power consumption: typical 3 W, max. 7 W
Ambient temperature: ‚ąí5 … +45 ¬įC
Storage/transport temperature: ‚ąí25 … +70 ¬įC
LAN: RJ45-socket (10/100 Mbit/s Fast Ethernet)
USB: USB 2.0 Host
Dimensions: 124 x 72 x 31 mm (without mounting plate)
124 x 92 x 40 mm (with mounting plate)
Plug-in power supply
¬†¬†¬†¬†Primary voltage: AC 100 … 240 V ~
    Mains frequency: 50/60 Hz
    Rated current: max. 1 A
    Secondary voltage: DC 12 V SELV
    Protection class: II
    Length of connected cable: 1.5 m
