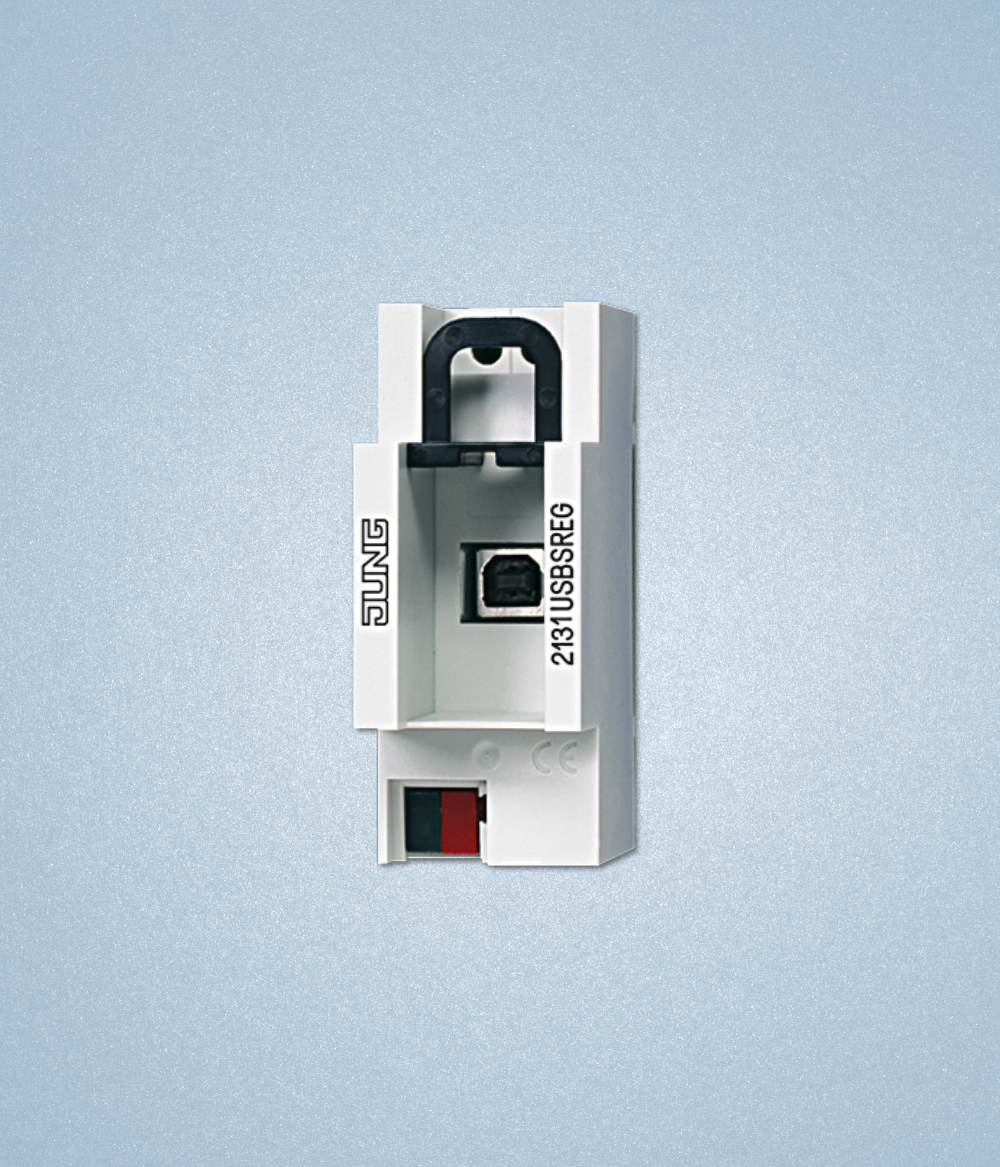

USB DATA INTERFACE FOR RAIL MOUNTING

rail mounting device, 2 rail units

Intended use

  • Connecting PCs to KNX systems
  • Addressing, programming and diagnostics of KNX devices
  • KNX Data Secure compatible with ETS 5.7.3 or higher
  • Support of long frames for ETS5
  • Mounting on DIN rail according to EN 60715 in distribution boxes

2131 USBS REG

Product characteristics

  • Connection with device connection terminal
  • Electrical separation of KNX and USB
  • Temporary operation in unmounted condition permissible
  • The firmware in the USB data interface can be updated via the ETS product database
  • Power supply exclusively via the USB port

Technical data

KNX medium: TP 256
Power supply: via USB port of the PC
Connection
    Connection, KNX: terminal
    USB port: USB socket, type B
Transfer rate: 9600 Baud
Transmission protocol: compatible with USB 1.1/2.0
Length of USB cable: max. 5 m
Ambient temperature: −5 … +45 °C
Storing temperature: −25 … +70 °C
Protection class: II
Mounting width: 36 mm (2 rail units)

Product documentation

Download

Product data sheet

Download

Database ETS4 + ETS5

Download

Operating instructions

Download

SKU: 2131 USBS REG Categories: ,
