Subwoofers are a fundamental part of a home cinema installation. The Elipson SUB8 is the element of choice to bring breadth and depth to your films. It is equipped with a 26 cm driver installed in a bass-reflex configuration. As such, it is designed to produce a considerable amount of sound pressure and offer a physical listening experience.

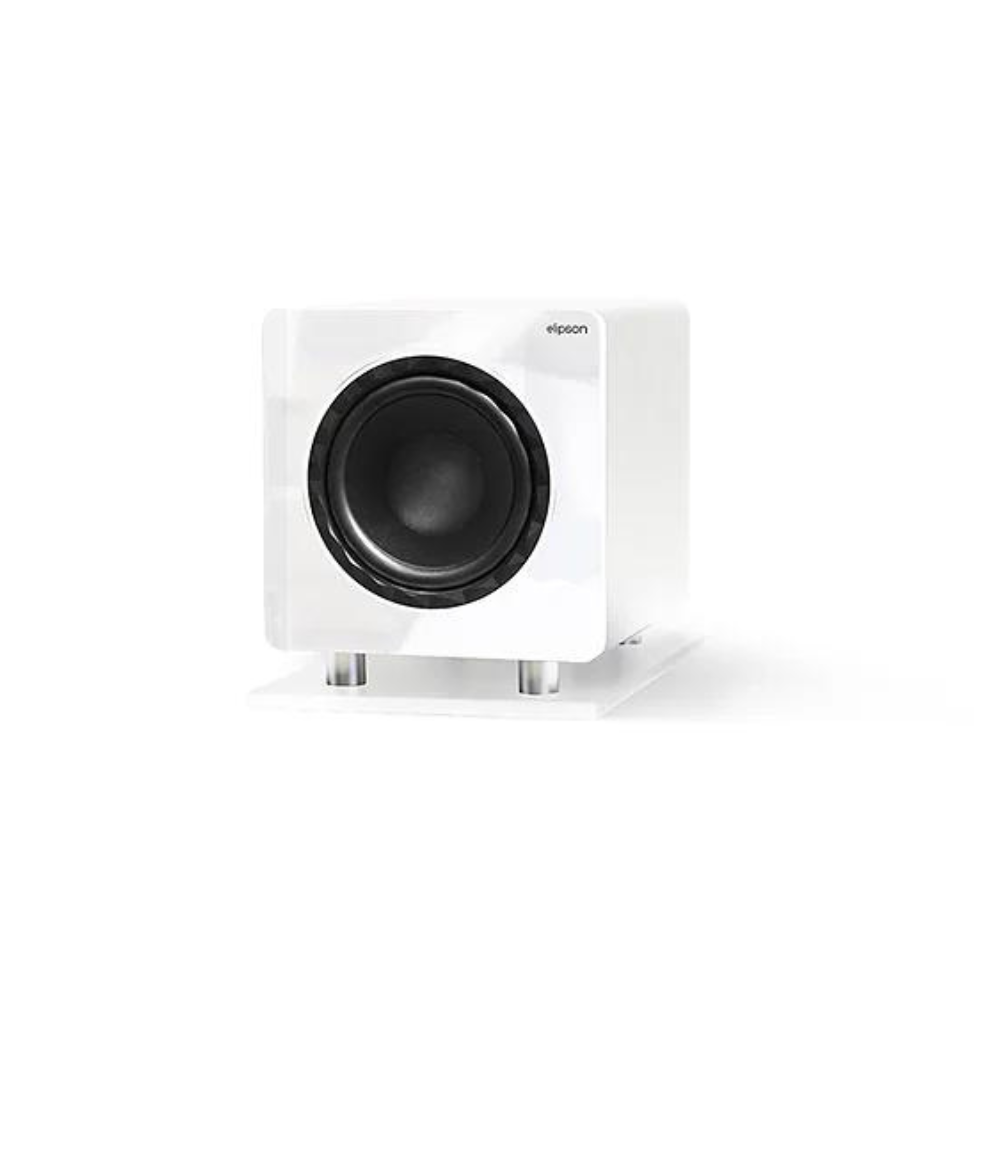

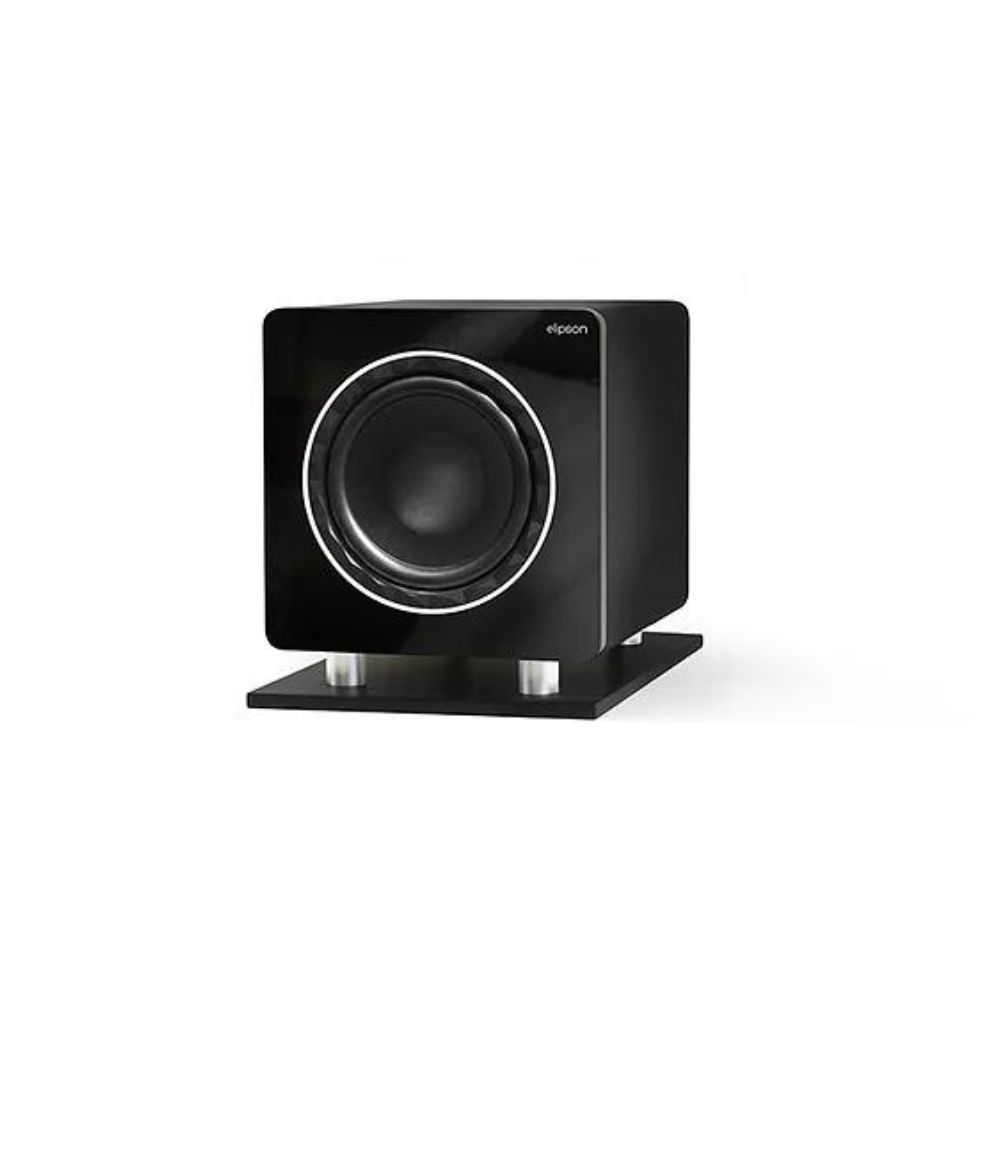

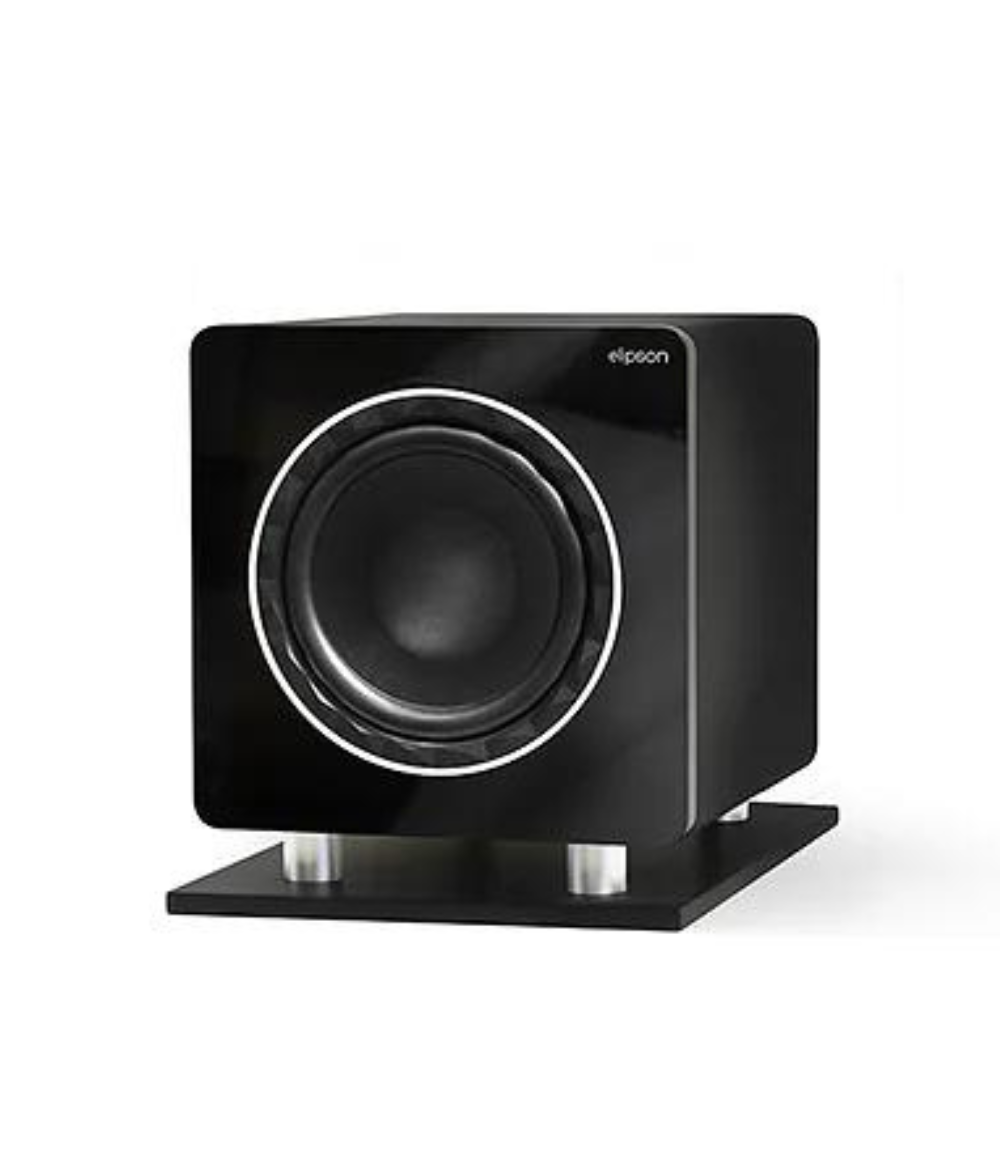

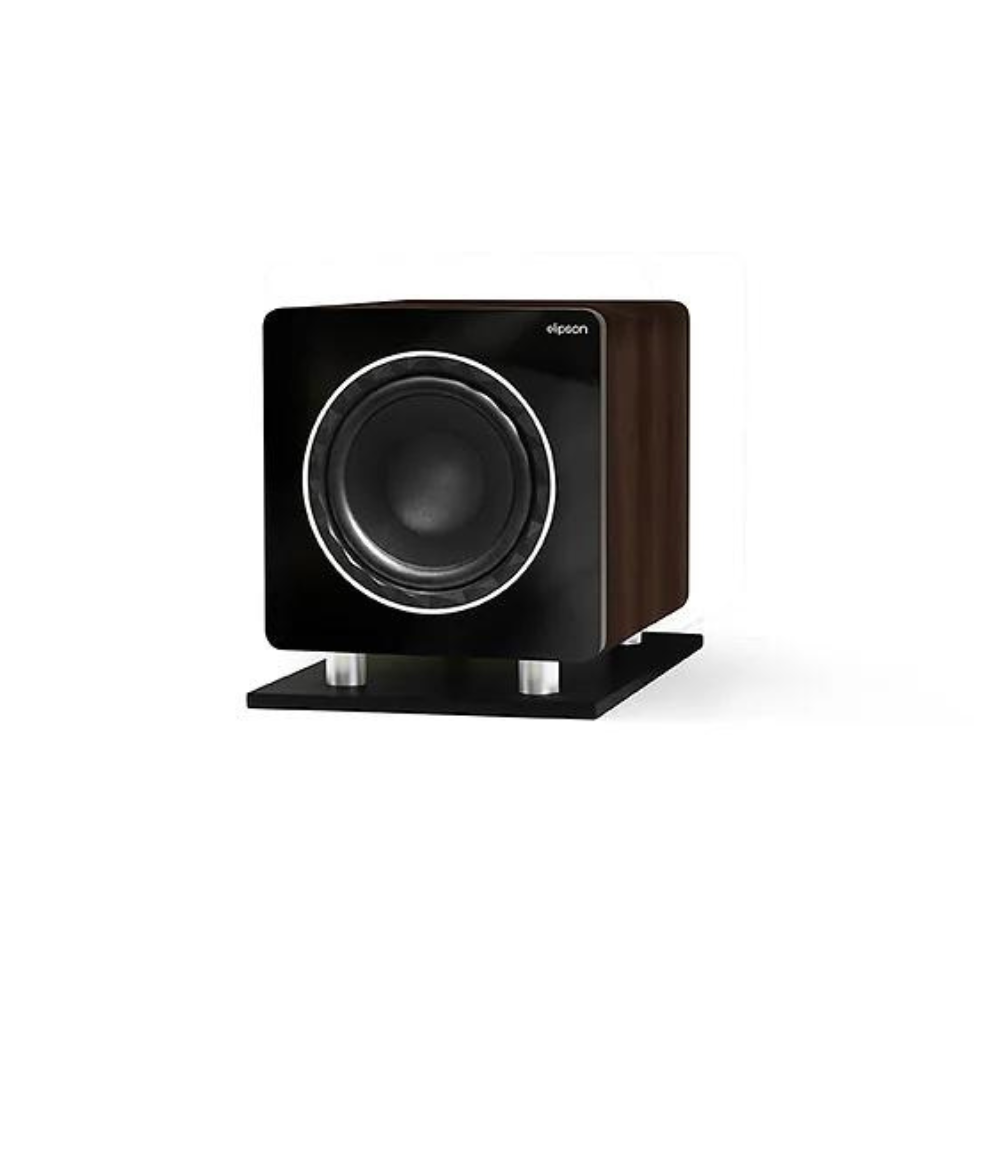

The Elipson SUB8’s elegantly designed cabinet inherits exclusive technologies from the Prestige Facet family and is available in black, white or walnut.
The subwoofer’s very linear frequency response ranges from 35 Hz to 150 Hz (± 3 dB). Its multifaceted, sculpted silicone surround ring limits diffractions and minimizes the baffle effect. The frequency response curve is thus more gradual and the listening experience more comfortable. The bass-reflex port situated beneath the subwoofer improves the diffusion of low and infrabass frequencies throughout the entire listening room regardless of where the subwoofer is placed. The integrated Class D amplifier develops 150 watts of power.
The diameter of its driver and its performance make the Elipson SUB8 an element of choice to complete your home cinema installation and bring it all the intensity required by the Seventh Art.
AN AUDIOPHILE DESIGN
The faceted crown surrounding each speaker is made of custom-cut synthetic rubber. It surrounds each speaker in order to limit the baffle effect and diffractions.
The response curve is thus less disturbed, more linear, for a softer listening experience.
An innovation made in Elipson.
NEUTRALITY AND ACCURACY
Devoid of any coloration, the Prestige Facet speakers deliver their music without adding or subtracting anything from the original recording.
The listening experience reveals a sensation of softness and serenity, each piece being faithfully reproduced with mastery and without aggression.
SMOOTHNESS AND PRECISION
In order to eliminate internal vibrations and resonances as much as possible, our engineers made the choice of a front panel made of two materials of different density and thickness, but also of a box with numerous internal reinforcements.
As for the steep filtering, it uses audiophile components.
The finish is not to be outdone, with a lacquered front panel and a high-quality vinyl cover.
DOLBY ATMOS® CERTIFIED
DOLBY ATMOS® is a surround sound reproduction technology for cinema and home theatre.
The DOLBY ATMOS® process allows the management of vertical sound in addition to the Dolby 5.1 or 7.1 (horizontal plane) formats, and thus creates total sound immersion.
To access the DOLBY ATMOS® experience, you need to equip your 5.1 or 7.1 system with dedicated speakers to emit sound vertically.
Design
21cm speaker
Load type: Bass Reflex down firing
Subsonic filter: 24 dB at 20 Hz
Variable crossover frequency: 50 Hz to 150 Hz
Auto standby, 2 sensitivity levels
Measures
Amplifier power: 150 watts
Amplifier Type: Class D
Bandwidth: 35 – 150 Hz (± 3 dB)
Connectors
Line L/R inputs
LFE input (shared with L channel)
General
Dimensions (W x H x D): 350 x 374 x 383 mm
Weight: 15.5kg
Packaging(unit):
Dimensions: W445 x H500 x D440 mm
Weight: 17 kg
