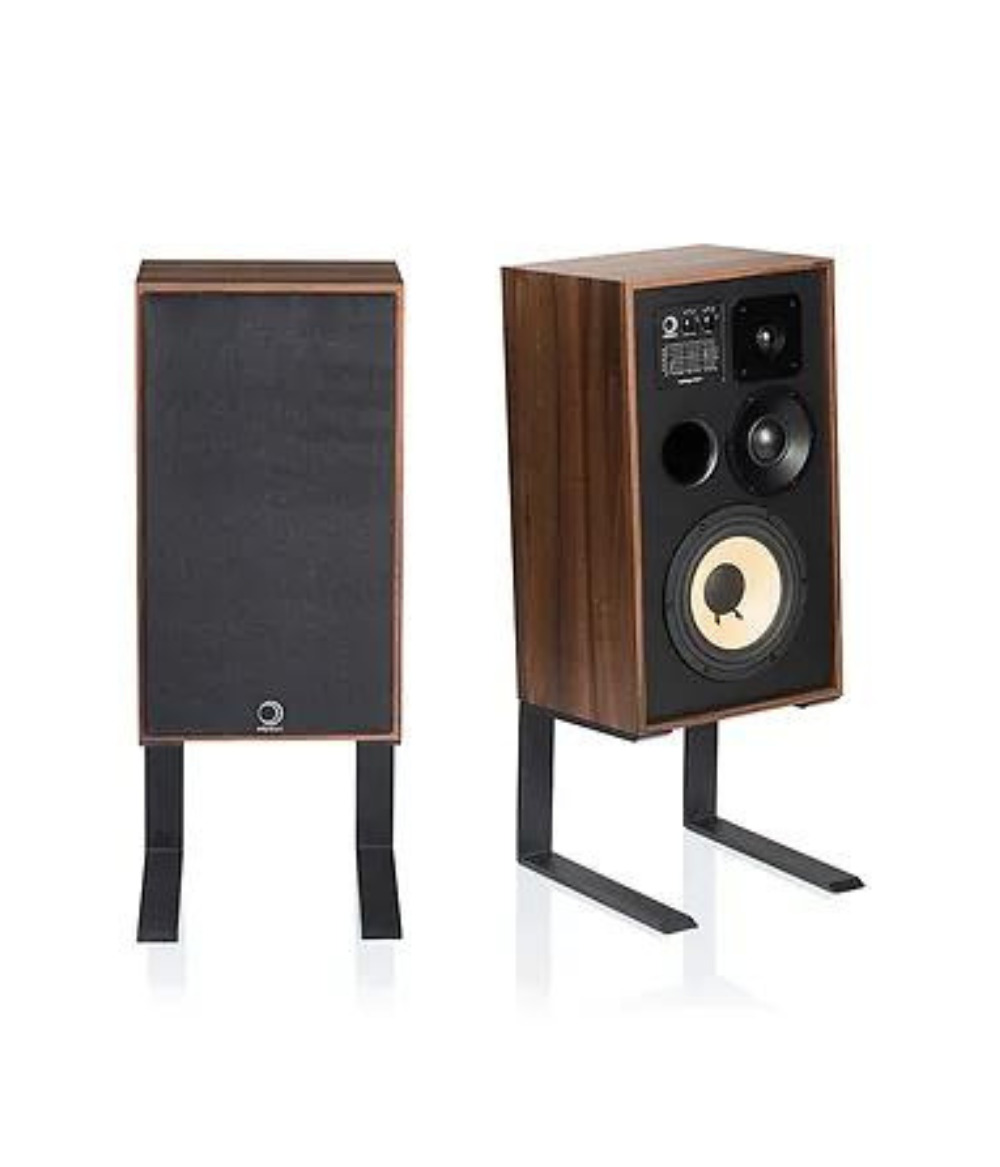

This new loudspeaker takes up a resolutely vintage aesthetic code in an even more compact, more discreet and also elegant format. But beyond its form, it is still its musicality that challenges.
This 3-way model with very compact dimensions and tuned front bass-reflex load benefits from a new 21 cm diameter bass speaker in cellulose derived from the 30 cm of the XLS 15 model, the other speakers are identical, except namely: a 55 mm diameter treated dome midrange covering nearly three octaves and finally a 22 mm diameter silk dome tweeter derived from the famous tweeter fitted to our flagship model in the Prestige Facet series.
A fine adjustment of 2dB amplitude makes it possible to adjust the registers of the medium and the treble according to its listening room or its auditory affinity.
There is also the possibility of inserting an optional 5° inclined metal stand (Elipson Heritage XLS Stand 1) for perfect acoustic phasing, raising it by 22 cm in addition to this inclination.
Rapidity and control of the bass, definition and relief of the midrange, delicacy and extension of the treble register characterize the sonic pleasure of this Elipson Heritage XLS11 loudspeaker.
DISCOVER THE REVIEW
ALL OF ELIPSON’S EXPERTISE
An aesthetic code resolutely vintage and adjustable thanks to its two bases provided. But beyond its shape, it is its musicality that appeals.
This 3-way model of compact dimensions and tuned front bass-reflex load benefits from a new 30 cm diameter cellulose woofer with a powerful magnetic system, a new 55 mm diameter treated dome midrange covering nearly three octaves and finally a 22 mm diameter silk dome tweeter derived from the famous tweeter equipping our flagship model of the Prestige Facet series.
DEEP AND POWERFUL BASS
The 30cm woofer of the Elipson Heritage XLS 15 ensures powerful and deep bass.
Its membrane is made of cellulose fiber, which allows you to enjoy a speaker that ideally combines rigidity and lightness to move the air very efficiently and very quickly..
An AMT (Air Motion Transformer) tweeter tops the upper part of the sphere and allows to combine lightness, large emissive surface and perfect respect of transients.
To ensure an optimal restitution and to match the expectations of the listener, the source or the listening room, the Elipson Heritage XLS 15 speaker allows to easily adjust the midrange and treble. To do this, it has two switches on its front panel: the first is dedicated to the highs, while the second is in charge of the mids.
Each selector allows to adjust by + or – 1 dB the gain of the speaker in the medium or high register.
H x W x D: 560 x 320 x 270/278 mm
- Weight : 17 kg (piece)
- Packaging dimensions:
H x W x D: 715 x 455 x 415 mm
- Gross weight: 20.5 kg
- Type :
Compact speaker – 3 ways – Bass – reflex
- Event :
Flared – front face – Freq.d’accord: 37 Hz
- Power :
- Grave-medium :
210 mm cellulose pulp Medium: 55 mm treated dome
- Drive-units :
- Tweeter : 22 mm silk dome
- Crossover filter – Fc :
850 & 5000 Hz – 12dB/12dB-12dB/18dB
- Frequency response :
(+/- 3dB) : 45-25,000 Hz
- Fine control of medium & treble levels on the front panel:
-1dB / 0dB (Ref) / +1dB
- Recommended power:
50 – 150 W
- Sensitivity :
90dB / 1W / 1m
Nominal impedance :
6 Ohms (min 3 Ohms @2400 Hz)
2. Protective cover
4. User Manual
