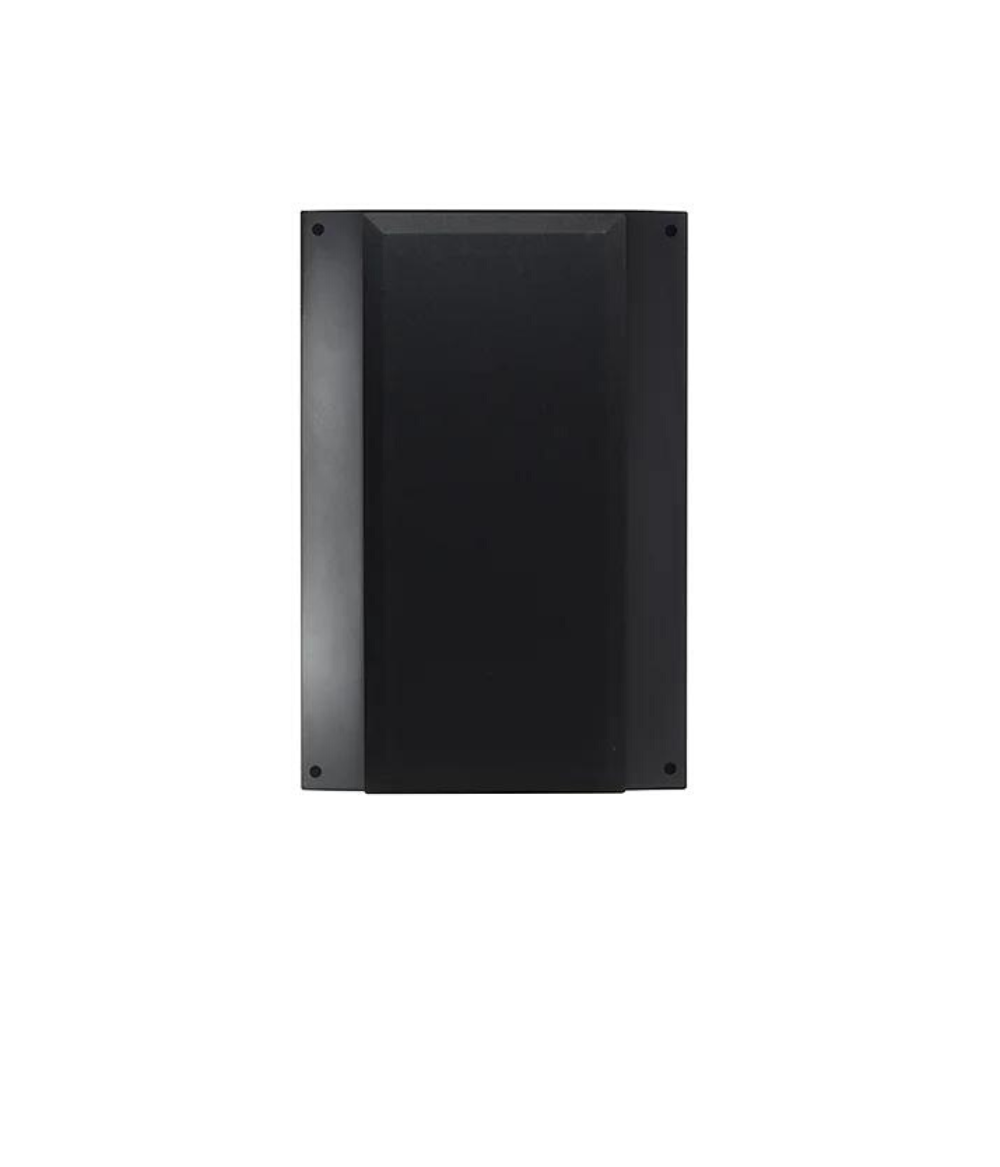

The Elipson Infinite 8 surround speaker is a 2-way model featuring a sealed enclosure. Designed to be placed on or in a wall or ceiling, it handles the immersive surround sound effects associated with Dolby Atmos and DTS:X technologies.
Since the speaker’s box is compact and not very deep, it is discrete and easy to install. The satin black and brushed metal finish adds to the its charm and discretion.
The Elipson Infinite 8 is equipped with a 17 cm Rohacell® and carbon fibre mid-low driver. The 29 mm tweeter features a silk dome and ring.
Very energetic, these speakers offer a frequency response ranging from 75Hz-30kHz for an output power of 100W RMS. Consequently, they can receive a signal at high volume.
They are perfect for a dedicated home cinema installation. Powerful, energetic and very clear, they offer an incredibly intense listening experience.
THE ARCHITECT RANGE
THE INTEGRATED SOUND
DEDICATED TO CINEMA
Elipson’s new Infinite cinema speaker range consists of three types of in-wall and surface-mounted speakers.
Developed for use in dedicated cinema rooms, our designers and acousticians have combined stunning sound with a simple, strong design.
The shallow cabinet is easy to install and fits discreetly into the wall or ceiling.
A PROFESSIONAL STANDARD
The dynamics required for cinema sound are at the level of professional requirements, guaranteeing you a sound quality unknown to date in home cinema.
The internal technology of the cabinets, the composite membranes of Rohacell® and carbon fibre, and the size of the magnets allow the speakers to deliver incredible sound performances that will make the magic of the cinema work as if you were there.
EXAMPLES OF MULTICHANNEL CONFIGURATIONS
For a multichannel home theatre installation There are several possible configurations to consider:
Elipson Infinite 8 speakers and Dolby Atmos
The Infinite 8 speakers are compatible with immersive audio formats including Dolby Atmos, DTS-X and Auro 3D. To ensure optimal performance, we recommend mounting the Infinite 8 speakers on the ceiling with the drivers facing the listening area. Your retailer will be able to advise you on where and how to correctly place your Elipson Infinite 8 speakers for an immersive listening experience.
INSTALLING YOUR FRONT AND CENTRE LOUDSPEAKERS
Recommendations for placing loudspeakers around your TV display.
If you have a wall-mounted flat screen display, we suggest placing the front left and front right loudspeakers at a distance of 50 cm from either side of the display and centring them with the middle of the screen. The centre loudspeaker should be placed as close as possible to the bottom of the screen, centred once again with the middle of the screen.
For the Infinite 14 speakers, we suggest mounting them horizontally and centring the tweeter with the middle of the TV display.
Recommendations for placing loudspeakers around an acoustically transparent screen.
To begin, we recommend installing the centre loudspeaker in the middle of the screen and the front left and front right loudspeakers on either side, a third of the way down from the top of the screen. Use the middle of the speaker as a reference point (or the middle of the tweeter for the Infinite 14) and line up the speakers along the same horizontal axis.
Make sure to leave at least 20 cm between the edge of the screen and the outer edge of the speakers. As for the subwoofers, try to ensure that their front-firing ports are not covered by the screen. For this configuration, we recommend removing the grills from the speakers.
Built-in cinema speaker
Satin aluminum front panel
Speakon connectors and terminal blocks
1x 17cm Rohacell / carbon speaker
1x 29mm ring tweeter
Power handling: 100 W (200 W peak)
Frequency response: 75Hz to 30kHz
Impedance: 8 ohms (4 ohms min)
Dimensions (W x H x D): 330 x 440 x 125 mm (138 mm with grille)
Cut-out dimensions (W x H): 280 x 420 mm
Installation depth: 112 mm
Dimensions(L x W x H): 535 x 425 x 250 mm
Net/ Gross Weight: 10 kg / 12 kg
Box contents :
- One loudspeaker
- Removable magnetic grill
- Template for In/On-Wall mounting
- User manual
- Elipson logo nameplate
- Screws for In-Wall mounting for wooden wall panels
