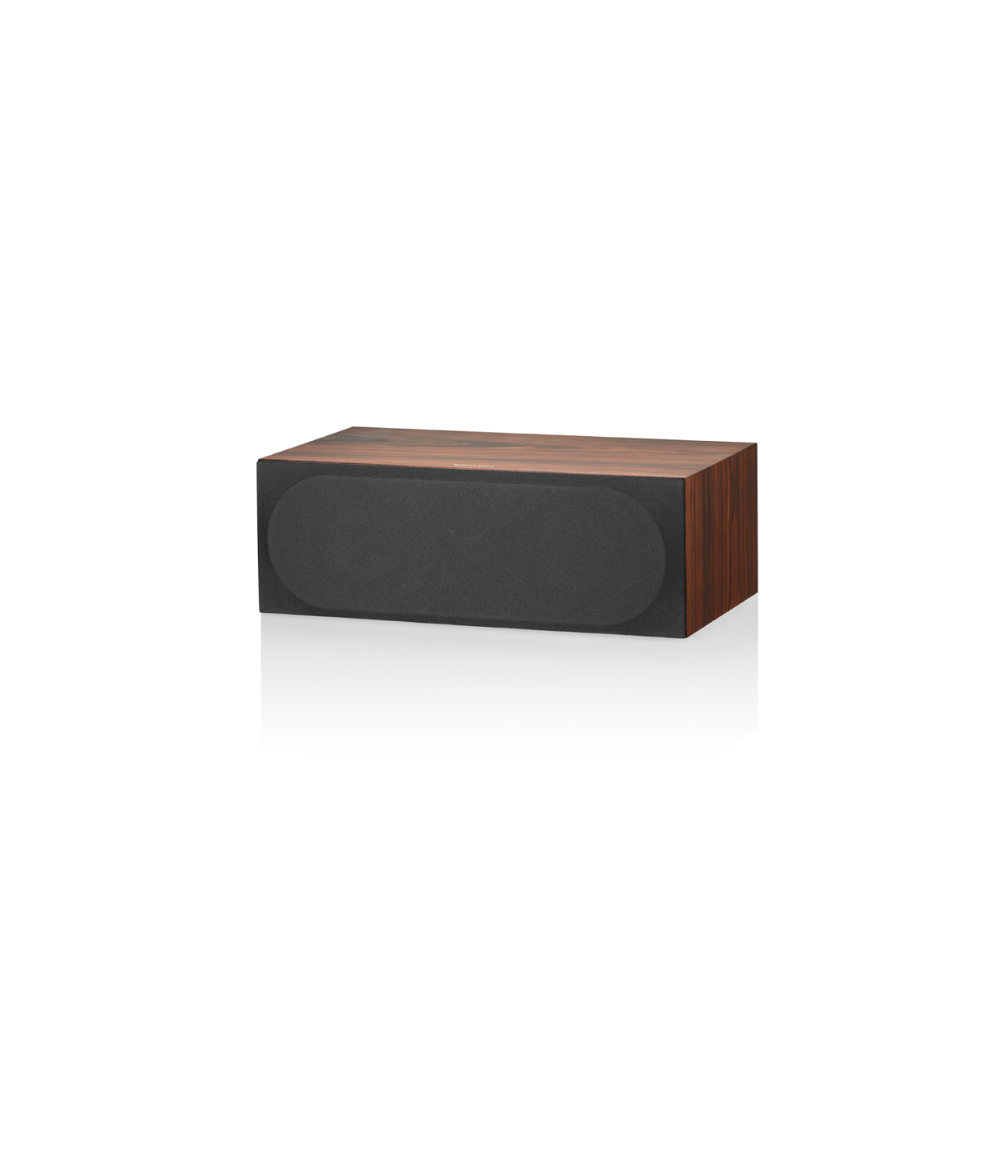

HTM72 S3
HTM72 S3 is the more compact centre-channel speaker in the new 700 Series. It features a Carbon Dome tweeter and twin Continuum cone Mid/Bass drivers. It’s the perfect partner for a home theatre system based around the 704 S3, 706 S3 or 707 S3.
Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Size & weight
Dimensions
Height: 165 mm (6.5 in) cabinet only
Width: 477 mm (18.8 in) Cabinet only
Depth: 266 mm (10.5 in) Cabinet only
302 mm (11.9 in) including grille and terminals
Net Weight
9.66kg (21.3 lb)
Technical details
Technical features
Decoupled Carbon Dome tweeter
Continuum™ cone bass / midrange
Flowport™
Drive Units
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
2x ø130mm (5 in) Continuum cone bass / midrange
Frequency responce (+/-3dB from reference axis)
70Hz – 28kHz ±3dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz – 22kHz
<0.5% 200Hz – 22kHz
Recommended amplifier power
30W – 120W into 8Ω on unclipped programme
Description
2-way vented-box system
Frequency range
48Hz and 33kHz
Sensitivity
87dB spl (2.83Vrms, 1m)
Nominal impedance
8Ω (minimum 4.3Ω)
Max recommended cable impedance
0.1Ω
Finishes
Cabinet finishes
Gloss Black
Satin White
Mocha
Grille finishes
Black (Black)
Grey (White and Oak)
