JUNG sockets ÔÇô functional and versatile

Our sockets offer numerous benefits. With “Safety Plus”, they reduce the risk of electrical accidents. Equipped with extra surge voltage protection, they prevent damage to electric devices. As a socket with integrated USB charger, they can be used in multiple ways at home, in the office and in public buildings. Manufactured in Germany and tested for 100% quality, our sockets always provide the best contacts with safety.

JUNG SCHUKO® sockets for interior spaces

Electricity makes life convenient

So that you can use electricity safely, there are our SCHUKO® sockets. High-quality contact springs inside the sockets ensure your safety in daily use. They reliably enclose the SCHUKO® plug and thus ensure that the protective earthing takes effect before the current flows.

Tested safety

Every new socket is tested multiple times during production for functionality and quality. Our high quality standards require SCHUKO® sockets to withstand twice as many repeated plug insertions as required by the standard. SCHUKO® sockets with the "Safety Plus" designation are equipped with an integrated shutter for increased safety.

Safety Plus: SCHUKO® sockets with shutter

JUNG SCHUKO® sockets with enhanced contact protection (shutter) offer more safety. An internal locking mechanism, the shutter, reduces the risk of contact with conductive parts. The shutter is a fixed part of the socket and cannot be removed. Naturally, all JUNG SCHUKO® sockets are also VDE tested with the "Safety Plus" designation.

SCHUKO® socket with integrated inscription field

You can keep track with our inscribable sockets. The inscription field is protected by a transparent cover and is also available in a backlit version. For areas with particularly high hygiene requirements, we provide SCHUKO® sockets with spray-mist-protected labelling fields.

SCHUKO® socket 45°

45-degree sockets are particularly suitable for the combination of multiple sockets and for use in underfloor systems. The 45-degree rotation makes it easier to connect devices with angled plugs or power supplies, such as those found on printers or laptops.

SCHUKO® socket with marking "Nur für EDV"

Fail-safe or specially shielded circuits for data processing are separated from the general power supply. The JUNG SCHUKO® sockets with the marking "Nur für EDV" are available for the clear and permanent identification of these connections.

SCHUKO® socket with pilot light

SCHUKO® sockets with pilot light are indispensable everywhere that sockets are switched on and off with a separate switch. The green LED shows whether voltage is connected and can be replaced from the front for maintenance without interrupting the power supply.

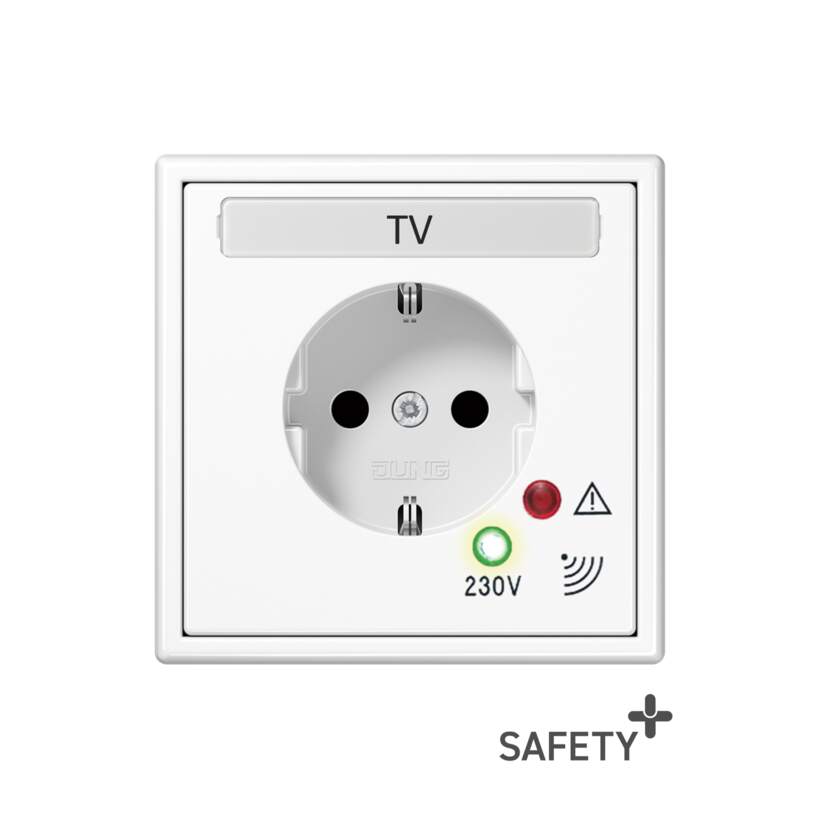

SCHUKO® socket with surge voltage protection

Well protected from voltage spikes: sockets with surge voltage protection protect electronic devices from overvoltage caused by lightning strikes and faults in the power network. JUNG SCHUKO® sockets with surge voltage protection are an effective component for fine protection within the three-stage protection concept for buildings.

SCHUKO® socket with hinged lid

At the cooker, in the worktop or as a ceiling cutout: the hinged lid protects against dust and dirt and at the same time discreetly relegates the socket to the background. Hinged lids with safety lock offer a further benefit. They ensure greater safety when using electricity and prevent unauthorised use.

SCHUKO® socket with IP44 protection

From the bell push-button at the main door to the socket on the covered terrace: if you want a consistent switch design throughout the house, the retrofittable IP44 protection can be used. With a separately available sealing gasket, you can extend our products for the required protection against splash water, wind and weather.

JUNG SCHUKO® socket: the good made even better

Optimised mounting and more safety. These are the main characteristics of the JUNG SCHUKO® socket. We have significantly increased the advantages for the electrician with this development.

The focus for the safety optimisation of the JUNG SCHUKO® socket is on the integration of the supporting frame, claws, claw screws and earthing bracket into the earth protection. This avoids leakage currents, voltage carry-over, etc. and thus creates more safety for the installer during flush mounting. Furthermore, the ribs in the base allow easy guiding of the cable material with damage to the cable during installation being prevented by the claw enclosure. The supporting frame of the socket consists of a zinc-magnesium alloy that has high corrosion protection. All SCHUKO® sockets are of course certified by VDE and are therefore absolutely safe. In addition, the JUNG socket also meets the strict Netherlands TNO standard.

1. Diagonal slots for individual mounting especially in Swiss wall boxes
2. Claw screws: single-thread, combi-head PZI for precise adjustment during installation
3. Cross hair marking / notch in the supporting frame simplifies the exact alignment for multiple combinations
4. Large release lever with low pressure forces for easy removal of the cable material
5. Keyholes for cavity wall and international device socket installation

1. The earthing rail integrates supporting frame, claws, earthing bracket and claw screws into the earth protection
2. The enclosure of the claws prevents damage to the cable
3. Easy insertion of the cables into the clamping cage with a firm hold at the same time
4. The guide ribs incorporated in the base allow reliable guidance of the cable

Easy installation

We have simplified installation for the installer with many details in the SCHUKO® sockets. The compact base design makes a significant contribution to this. This provides a better view into the flush-mounted box and of the cable material. Our SCHUKO® sockets are available in plastics such as thermoplastic or duroplastic, in metal versions such as aluminium, stainless steel or brass and in various colours from white to black. In addition, we offer versions with a hinged lid and USB ports.

SCHUKO® sockets for surface-mounted ranges

For increased demands on the electrical installation.

WG 800 | WG 600 | AP 600

Splash-proof and robust: our WG 800 and WG 600 surface-mounted ranges are intended for use in cellars and garages, attics and terraces. The robust plastic housing of the surface-mounted socket meets the IP44 standard, retains its protective function even at low temperatures and is predestined for use in protected outdoor areas. The AP 600 surface-mounted range is ideal for new installation and retrofitting in dry interiors: on concrete, wood or exposed masonry.

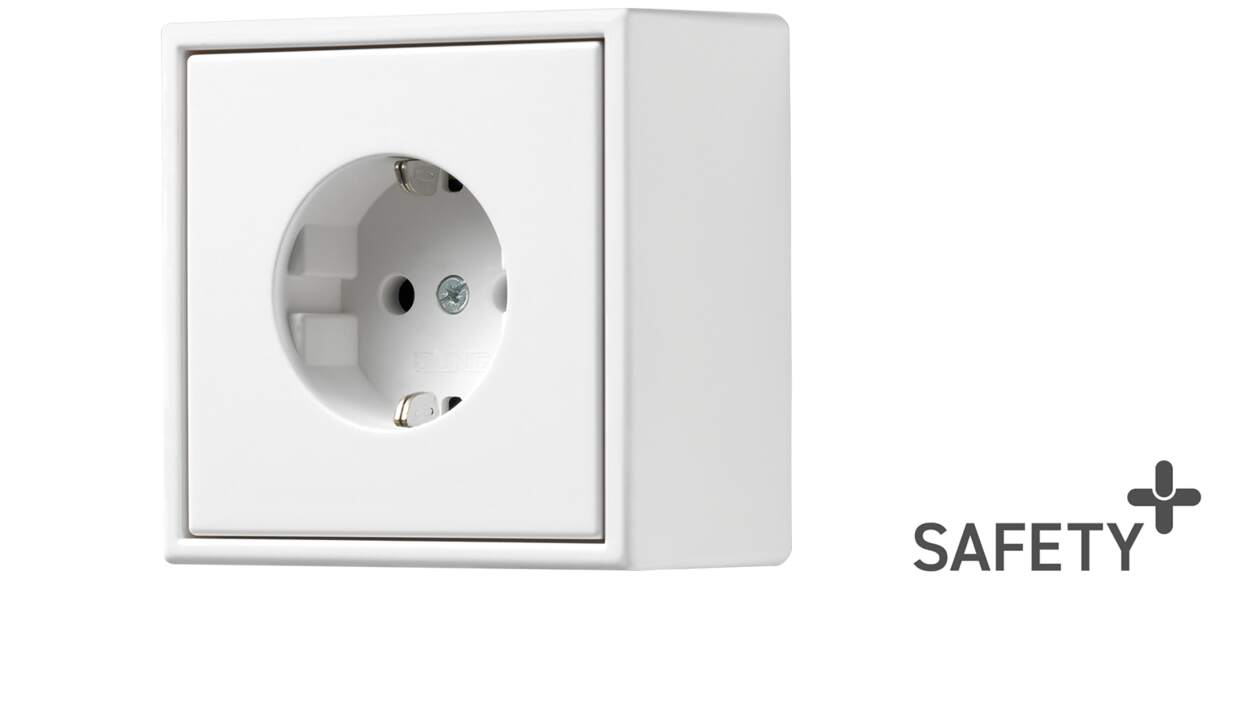

LS CUBE

LS CUBE is the surface-mounted version of our classic LS 990 switch. The cube-shaped range for installation in dry rooms enables surface-mounted installation of inserts for conventional and KNX-based applications. As a stylish element in an industrial design, LS CUBE is a striking eye-catcher ÔÇô in rooms with loft character, on wood, exposed concrete, brick or natural stone walls.

SCHUKO® sockets with USB ports

The JUNG SCHUKO® sockets with USB ports recharge every battery quickly. The devices are available with the USB type-A and type-C sockets. Like all other SCHUKO® sockets, these are naturally also "Made in Germany" and certified by VDE.

In addition to the version with a single USB port, JUNG also provides a SCHUKO┬« socket with two USB ports (type A and type C) including "Safety Plus". If multiple devices are connected, the charging current of 3 amperes (15 watts) is divided evenly into 1.5 ampere per USB socket ÔÇô the optimal 3-in-1 solution. The version with JUNG Quick Charge┬« provides electric power of 18 watt and recharges mobile devices in the shortest possible time.

SCHUKO® sockets with USB type A

SCHUKO® sockets with USB type C

SCHUKO® sockets with USB type A and type C

JUNG Quick Charge®

Ideal for everywhere you need quick energy for a smartphone or tablet: the version with JUNG Quick Charge® has either a single USB-A or USB-C port. Depending on the connected mobile device, JUNG Quick Charge® increases the voltage level to up to 9 volts. The JUNG SCHUKO® sockets with USB port support the following standards:

- Apple 2.4 A
- Samsung Adaptive Fast Charging
- Qualcomm Quick Charge 3.0
- USB Battery Charging and USB Power Delivery

We also offer the sockets including USB port in the French / Belgian system and they are also equipped with "Safety Plus".

Socket in the French / Belgian system with USB type A in A FLOW in white

Socket in the French / Belgian system with USB type A and type C in A 550 in white

Socket in the French / Belgian system with USB type C in LS 990 in white

Socket in the French / Belgian system with USB type A and type C in LS 990 in white

More charging capacity with USB charger

The USB chargers with ports for USB type A and type C charge smartphones and tablets with an electrical power of 15 watts.

Smartphone, Bluetooth headphones and a smart watch as well: mobile devices need energy. Our USB chargers with USB type A and type C provide exactly the same flexibility and integrate themselves ideally into the electrical installation. Snap-on covers allow a flat and harmonious design and thus fit very well into multiple frames alongside conventional SCHUKO® sockets.

USB charger with USB type A and type C in LS 990 in white

USB charger with USB type A and type C in A FLOW in white

SCHUKO® socket with LED floor pilot light

As the inventor of the SCHUKO® socket with pilot light, we have continuously optimised this concept. The result is an LED light integrated flush into the design cover and with a defined, downward shining light cone. The socket with pilot light is available in the JUNG switch ranges of the A and LS design ranges.

Decorative and functional: the sockets with LED floor pilot light for our A and LS switch ranges. The socket and pilot light fit particularly flush in the wall in combination with the flush-mounted LS ZERO installation range.

Discrete design

The socket base with integrated LED floor pilot light fits flush onto the design cover. The neutral white LED shines downwards and achieves a homogenous light distribution across the entire surface of the lens. Sockets with LED floor pilot light provide on the one hand a safe, non-glare orientation in the dark and on the other a uniquely stringent look. They are available in numerous colours in the JUNG ranges.

Illuminate according to need

The LED socket with pilot light optionally has an integrated brightness sensor. When the environmental light falls below a specified threshold value, the LED illuminates the socket. As a result, the LED only shines when the light is needed. An important factor in properties where no pilot light is needed or wanted during daylight.

LED floor pilot light

LED floor pilot lights are also available without a socket. Matching the JUNG switch ranges, they provide stylish light accents on stairs and in corridors. The integrated brightness sensor activates the light source at twilight and switches it off again as soon as it is dawn.

SCHUKO® socket with LED floor pilot light in LS 990

SCHUKO┬« socket with LED floor pilot light in AÔÇëCREATION

LED floor pilot light

International sockets

Connections in accordance with country-specific standards

Other countries, other plug types. For worldwide use, we provide standardised sockets for country-specific plugs and power supplies. Numerous international connection modes are available thanks to the JUNG modular system. Every individual socket takes account of the respective regional requirements. The international sockets from JUNG can be implemented in virtually all design ranges ÔÇô they can also be combined in multiple frames. This makes a uniform design possible.

G + I socket

The JUNG G + I socket is impressive: it combines the British type G plug with the type I plug that is widely used in Australia, China and Argentina and other countries. It thus covers the connection options of over a third of all countries worldwide. In combination with a SCHUKO® socket, it is even over 75 percent. Germany's largest testing company DEKRA attested optimum safety for the JUNG G + I socket. The following standards have been tested: IEC60884-1: 2002 + A1: 2006 + A2: 2013 and BS1363-2: 1995 + A4: 2012.

Guests and travellers from numerous countries can connect their devices with the combination of G + I socket and SCHUKO® in a two-gang frame. The use of SCHUKO® sockets with USB ports enables even greater flexibility - in the version with JUNG Quick Charge® with a particularly high charging capacity.

Combinability of bedside and deskside panels

If the G + I socket is installed in a wall box according to DIN VDE, combinations in one-gang to five-gang frames are possible. This results in numerous combination and function options, such as installation together with a network connection, USB charger or SCHUKO® socket with hinged lid.

G + I in device socket according to DIN VDE

Combinations in one-gang to five-gang frames are possible in a wall box in accordance with DIN VDE. This results in numerous design possibilities.

1. Wall box (round)
2. Wall box (rectangular)
3. Flush-mounted adapter LS ZERO
4. G + I socket with supporting frame 71 x 71 millimetre
5. Frames in the JUNG LS range
6. Frames in LS ZERO
7. Centre plate for the JUNG LS range

G + I in British Standard

The G + I socket is also available with a supporting frame with the dimensions 80 x 80 millimetre. This makes it ideal for countries where British Standard wall boxes are installed.

1. Wall box according to British Standard
2. G + I socket with supporting frame 80 x 80 millimetre
3. Frames in LS DESIGN
4. Centre plate for the JUNG LS range

French/Belgian sockets

The socket with male earth pin is suitable for devices with plug type E.

- CEE Publ. 7, standard sheet V, 16 A 250 V ~
- with "Safety Plus"
- with screw terminals for cores up to 2.5 mm2 according to NFC 61-314
- in the design of the A, CD, LS and SL ranges
- Plug type E

Socket with earth pin and hinged lid

At the cooker, in the worktop or as a ceiling outlet: the hinged lid protects against dust and dirt and discreetly relegates the socket to the background. Available in the design of the A and LS switch ranges.

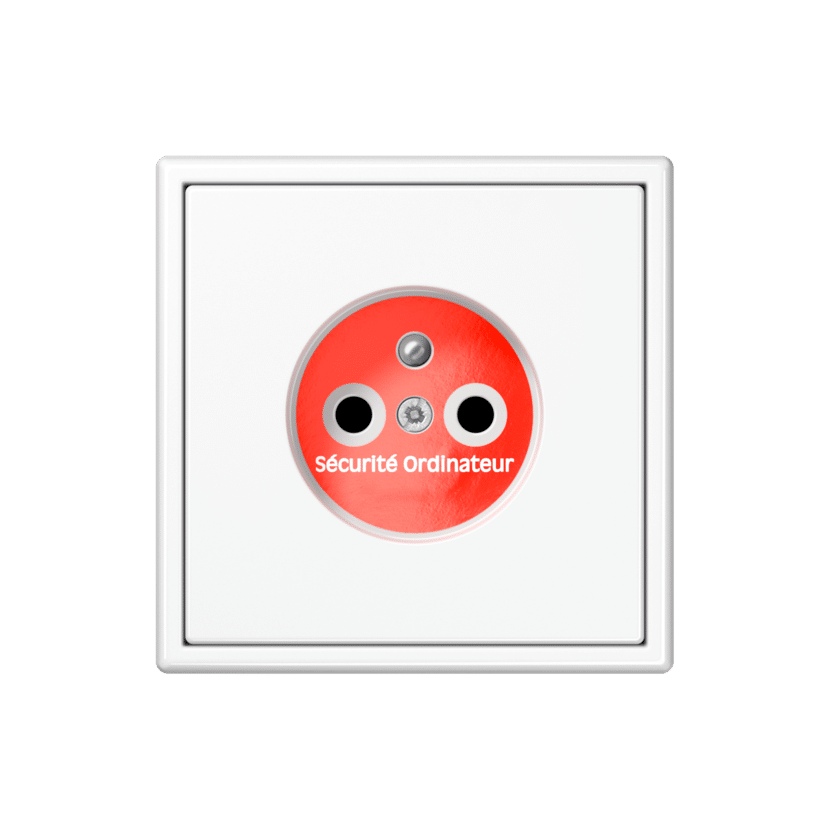

Socket for special circuits (backed up networks)

JUNG provides colour-coded sockets for clear identification of connections in special electrical circuits. Available in the design of the A and LS switch ranges.

WG 800 | WG 600

Splash-proof and robust: our WG 800 and WG 600 surface-mounted ranges are intended for use in cellars and garages, attics and terraces. The plastic housing meets the IP44 standard and is suitable for protected outdoor areas.

LS CUBE

LS CUBE is the surface-mounted version of the LS 990 switch range. The cube-shaped range is suitable for surface-mounting in dry rooms. LS CUBE is a striking eye-catcher, e.g. on wood, exposed concrete, brick or natural stone walls.

Socket in the British system

We offer numerous solutions for international areas. Such as sockets that can be installed in the British Standard markets as well. There are plug types in our portfolio for electrical currents of 5 ampere, 13 ampere and 15 ampere. Furthermore, we offer various design ranges for the British wall boxes.

- socket 13 A 250 V ~
- 2-pin + E, with "Safety Plus"
- British Standard 1363:1995

- with screw terminals for cores of up to 4 mm2 according to BS 1363-1
- available in the A and LS design ranges
- plug type G

Switchable socket British Standard, 13 A

The British Standard socket is suitable for plug type G and also available without a switch. It meets British Standard 1363:1995. Available for the A and LS switch ranges.

Switchable socket with switch with indicator light British Standard, 13 A

The British Standard socket with indicator light is suitable for plug type G. It meets British Standard 1363:1995. Available for the A and LS ranges.

British Standard, 5 A socket

The British Standard 5 A socket is suitable for plug type M. It is available in the A and LS design ranges.

Switchable socket British Standard, 15 A

The switchable British Standard 15 A socket is suitable for plug type D.

Sockets are the basis of every electrical installation. For smooth and fast mounting, JUNG supplies British sockets from the factory with the appropriate supporting frame. The well-thought-out modular system makes it possible to install a socket and cover into a British wall box without complication. The large supporting frame in the dimensions 80 x 80 millimetre provides the basis for every electrical installation in the British connection system.

British Standard 1-gang

Sockets are the basis of every electrical installation. For a smooth and fast mounting, JUNG supplies British sockets from the factory with the appropriate supporting frame. The well-thought-out modular system makes it possible to install a socket and cover into a British wall box without complication.

1. Rectangular wall box according to British Standard
2. Flush-mounting insert with supporting frame 80 x 80 mm
3. Design frames
4. Cover

British Standard 2-gang

For the installation of a two-gang wall box in the British Standard system, JUNG offers various 2-gang sockets with a large supporting frame. Modern design for dual electrical installation: JUNG makes a special appearance possible in interior design with the A 550, A FLOW or LS-DESIGN ranges.

1. Rectangular wall box according to British Standard
2. Flush-mounting insert with supporting frame 80 x 140 mm
3. Design frames
4. Cover

British Standard with adapter frame

With this method, installers can install versatile building technology, without extensive restoration work or a reconfiguration of the electrical installation under the plaster. With the adapter frame you can install components such as the JUNG USB socket or an F 40 push-button sensor and much more. The adapter frame compensates for the different dimensions between wall box and insert.

1. Rectangular wall box according to British Standard
2. Adapter frame
3. Flush-mounted insert
4. Design frames
5. Cover

In accordance with DIN VDE standard

The DIN standard of VDE allows high flexibility. This means that installers can implement an individual electrical installation in a new construction. With the normal rounded flush-mounted boxes in Germany or with the rectangular wall boxes, they can use all JUNG products from conventional switch inserts up to smart KNX push-buttons.

1. Round flush-mounted box
2. Rectangular wall box
3. Flush-mounted insert
4. Design frames
5. Cover

More international sockets

Socket without earth

- socket 16 A 250 V ~
- with screw terminals for cores up to 2.5 mm2 according to CEE 7
- in the design of the A, CD, LS and SL ranges
- Plug type C

Chinese Standard

- with "Safety Plus"
- with screw terminals for rigid and flexible cores up to 4 mm2
- in the design of the A and LS ranges
- Plug type A and I

Indian Standard

- 16 A / 250 V ~
- for plugs BS 546 5A (Type D) and BS 546 15A (Type M)
- with "Safety Plus"
- with screw terminals for rigid and flexible cores up to 4 mm2
- in the design of the A and LS ranges

Socket to Swiss Standards type 13

- 10 A 250 V ~, L + N + PE
- with screwless terminals for cores up to 2.5 mm2 in accordance with SEV 1011-1998/IEC 884-1
- for installation in socket in accordance with DIN 49 073
- not suitable for installation in surface caps
- in the design of the LS range
- Plug type J

Socket US NEMA Standard

- Configuration: 5 ÔÇô 20 R, 2-pin + E, 15 + 20 A 125 V ~
- with screw terminals for cores up to 4 mm2 in accordance with US NEMA
- in the design of the A, CD and LS ranges
- plug type B

Special sockets

Solutions for hotels and healthcare facilities

Shaver socket

Stylish hotel design can be achieved with shaver sockets matching the JUNG switch ranges. They are available for the US NEMA-1 and Europlug two-pin connector systems and are equipped as standard with "Safety Plus".

SCHUKO® sockets for special circuits

JUNG provides colour-coded SCHUKO® sockets with additional pilot light or inscription field for the clear identification of connections in special circuits.

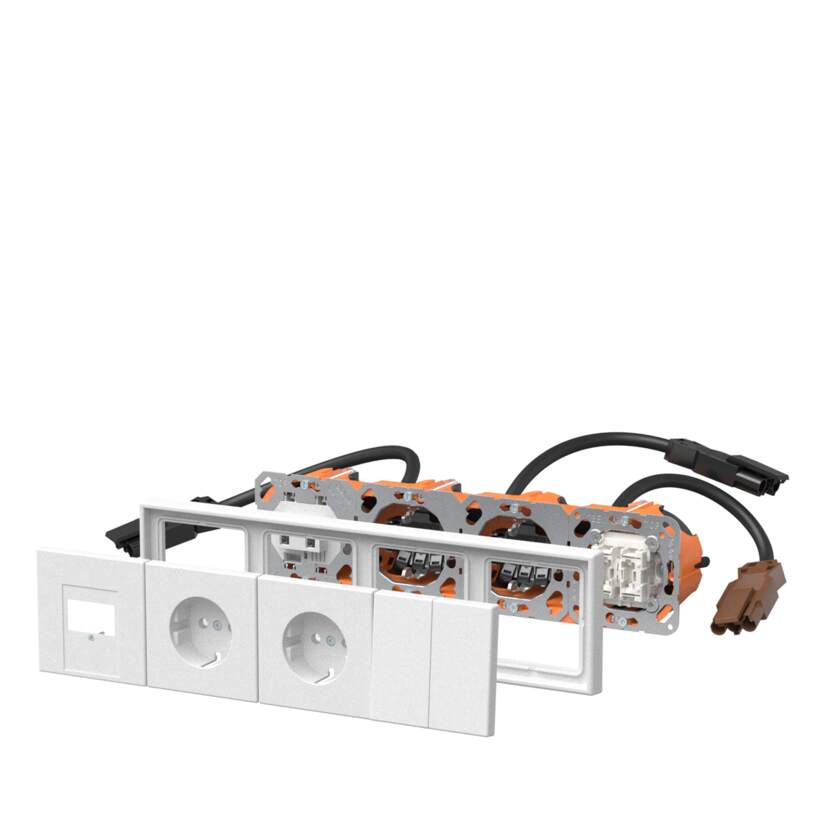

plug + go

Ideal for installation in buildings with serial equipment: the plug + go modular system is the clever pre-assembled solution for quick and safe electrical installation with a modular design.

Technical details

In JUNG SCHUKO® sockets with the "Safety Plus" designation, the shutter provides additional safety. It is part of the cover of the socket and is intended to remain closed until a plug for the intended use is inserted. In this way, improper or erroneous use, such as inserting items other than plugs, can be prevented. As a result, the shutter provides enhanced contact protection in the best way possible and reduces the risk that people with conductive items come into contact with the socket and as a result possibly get an electric shock.

All sockets with the "Safety Plus" designation are equipped with an integrated shutter and, with further design measures, fulfil the more demanding, enhanced safety requirements of DIN standard VDE 0620:2021-02. This means they meet the current technological standards.

Safety Plus ÔÇô enhanced safety using a shutter

With an integrated shutter, we give the JUNG sockets extra safety. The shutter reduces the risk of making direct contact with live parts. Furthermore, the USB ports fulfil the increased, safety-relevant requirements of DIN standard VDE 0620:2021-02 and thus meet the current technological standards.

Tested to the highest safety standards

JUNG SCHUKO® sockets with USB port are certified by the German VDE (Verband der Elektrotechnik Elektronik Informationstechnik e. V. - Association for Electrical, Electronic & Information Technologies). The VDE approval certifies product quality at the latest state of technology and safe use in accordance with the increased test criteria of VDE. JUNG SCHUKO® sockets with USB port meet the following European and international standards and requirements:

DIN VDE 0620-1(VDE0620-1):2016-01 | DIN VDE 0620-1/A1(VDE0620-1/A1):2017-09 | IEC 60884-1(Third Edition) + A1.2006 + A2:2013 | IEC 61558-2-16:2009, AMD1:2013 used in conjunction with IEC 61558-1:2005, AMD1:2009 | EN 55032:2015 and EN 55035:2017 (EMC)

JUNG Quick Charge®

Ideal for caf├ęs, hairdressing salons, hotels or, of course, in your own four walls and in the office ÔÇô wherever you need new energy for your smartphone or tablet quickly: the version with JUNG Quick Charge┬« has either a single USB-A or USB-C port and provides electric power of 18 watt. Depending on the connected mobile device, JUNG Quick Charge┬« increases the voltage level to up to 9 volts. The JUNG SCHUKO┬« sockets with USB port support the following standards:

Apple 2.4 A
Samsung Adaptive Fast Charging
Qualcomm Quick Charge 3.0
USB Battery Charging
USB Power Delivery
