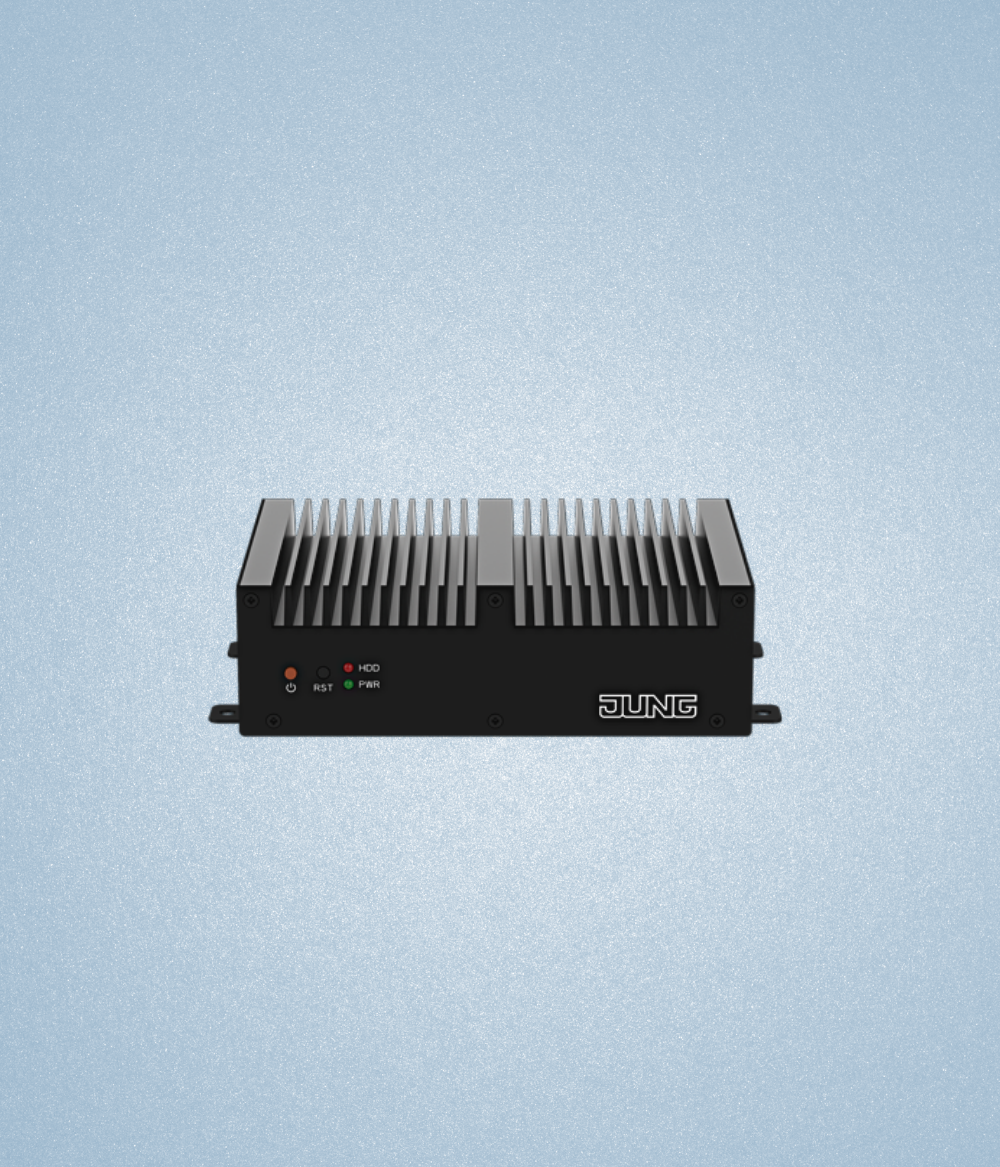

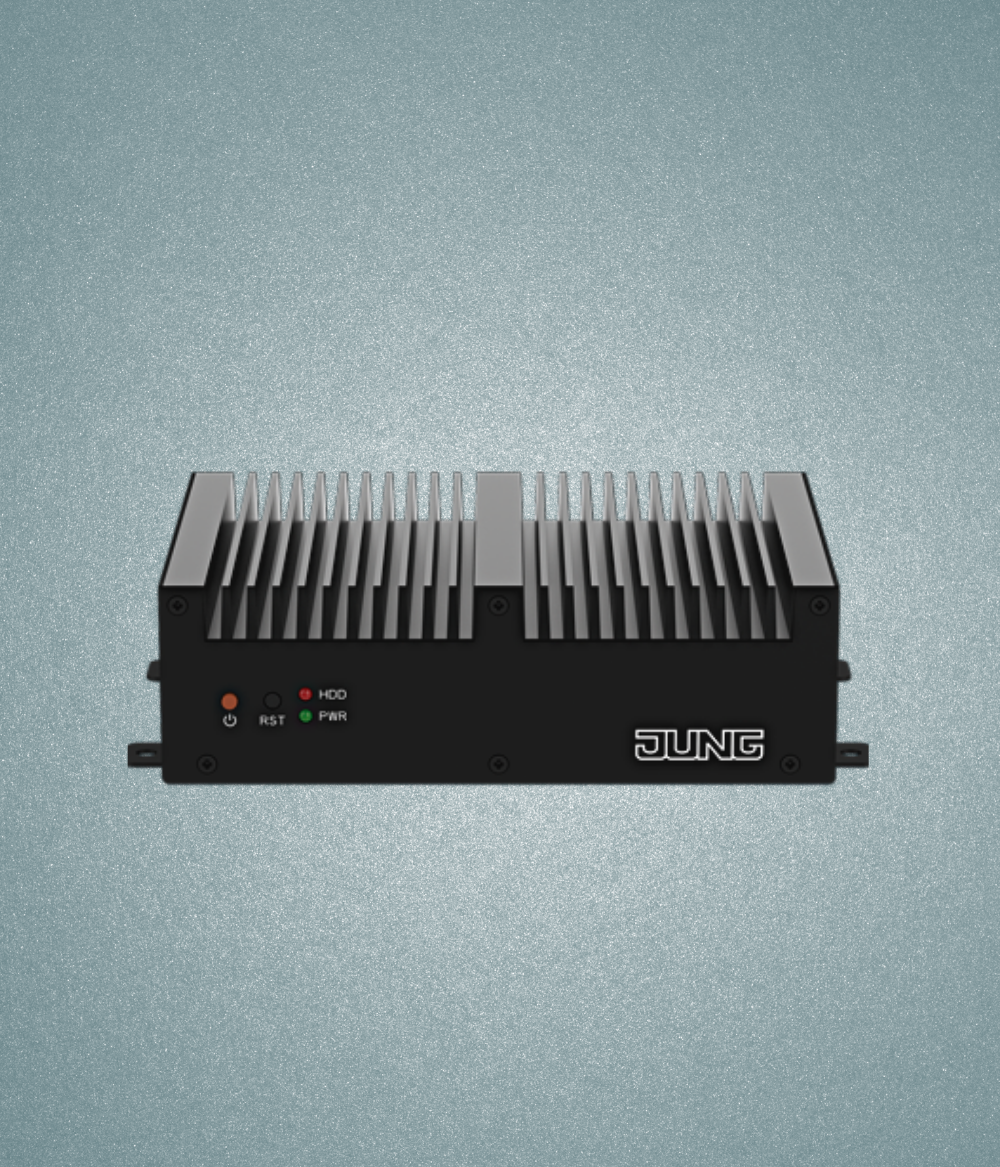

VISU PRO SERVER

fanless, without rotating parts
including plug-in power supply

JVP-SERVER-H2

Intended use

  • Visualisation and operation of KNX systems via devices with HTML5 browser or app (iOS, Android), e.g. Smart Control (ref.-no.:¬†SC¬†5¬†SW,¬†SC¬†0081¬†U,¬†SC¬†10.1,¬†SC¬†15.1,¬†SC¬†19.1), smartphone, tablet, laptop, PC, etc.
  • Support of KNX IP¬†Secure and KNX Data Secure (as of version 4.5)
  • Operation in local IP networks that support DHCP (Dynamic Host Configuration Protocol), or with static IP address (IPv4)
  • Desktop device, mounting on DIN rail according to EN¬†60715 possible
  • Max. size of the visualisation project as template in JUNG Smart¬†Assistant
  • Connection to KNX bus via interfaces (ref.-no.¬†IPR¬†300¬†SREG,¬†IPS¬†300¬†SREG,¬†20320¬†1S¬†IPS¬†R,¬†2131¬†USBS¬†REG,¬†2131¬†USBS), not included



Product characteristics

  • Fanless mini PC
  • JUNG Visu¬†Pro software pre-installed and activated
  • Windows¬†10¬†pre-installed
  • Quadcore Intel Celeron processor
  • 4¬†GB¬†RAM
  • 64¬†GB internal memory, partly used by operating system
  • 1 x HDMI
  • 4 x USB¬†3.0
  • 2 x LAN¬†RJ45 (LAN¬†1: static IP¬†address, LAN¬†2: DHCP)
  • The visualisation can be realised with devices with a browser suitable for HTML5 (e.g. latest version of Chrome, Firefox or Safari)
  • Access from max.¬†10 different clients possible
  • Integration of Amazon Alexa voice control via MyJUNG account
  • Integration of Google Home voice control via MyJUNG account
  • Secure remote access via MyJUNG account
  • Update and upgrade compatible



Process connections

  • KNX editor/ KNX editor 2.0
  • instalight editor
  • Device editor
  • vitaLED editor
  • XPL editor
  • SENEC energy storage
  • Process model
  • Visualisation editor
  • Work sheet generator
  • Calendar
  • JUNG Visu Pro Starter



Data import from ETS

  • ETS5: use of project export of ETS
  • ETS4: use of project export of ETS
  • ETS3: use of OPC¬†export of ETS
  • ETS2 version¬†1.1, 1.2 and 1.3: files generated by “print export” can be read
  • Previous ETS versions: not possible

Technical data

Rated voltage: DC 12 V
Power consumption: typical 6 W, max. 12 W
Ambient temperature: ‚ąí5 … +45 ¬įC
Storage/transport temperature: ‚ąí25 … +70 ¬įC
Dimensions (W x H x D): 168 x 106 x 45 mm
Protection class: II
Plug-in power supply
¬†¬†¬†¬†Primary voltage: AC 100 … 240 V ~
    Mains frequency: 50/60 Hz
    Secondary voltage: DC 12 V SELV
    Secondary current: 2 A
    Protection class: II
