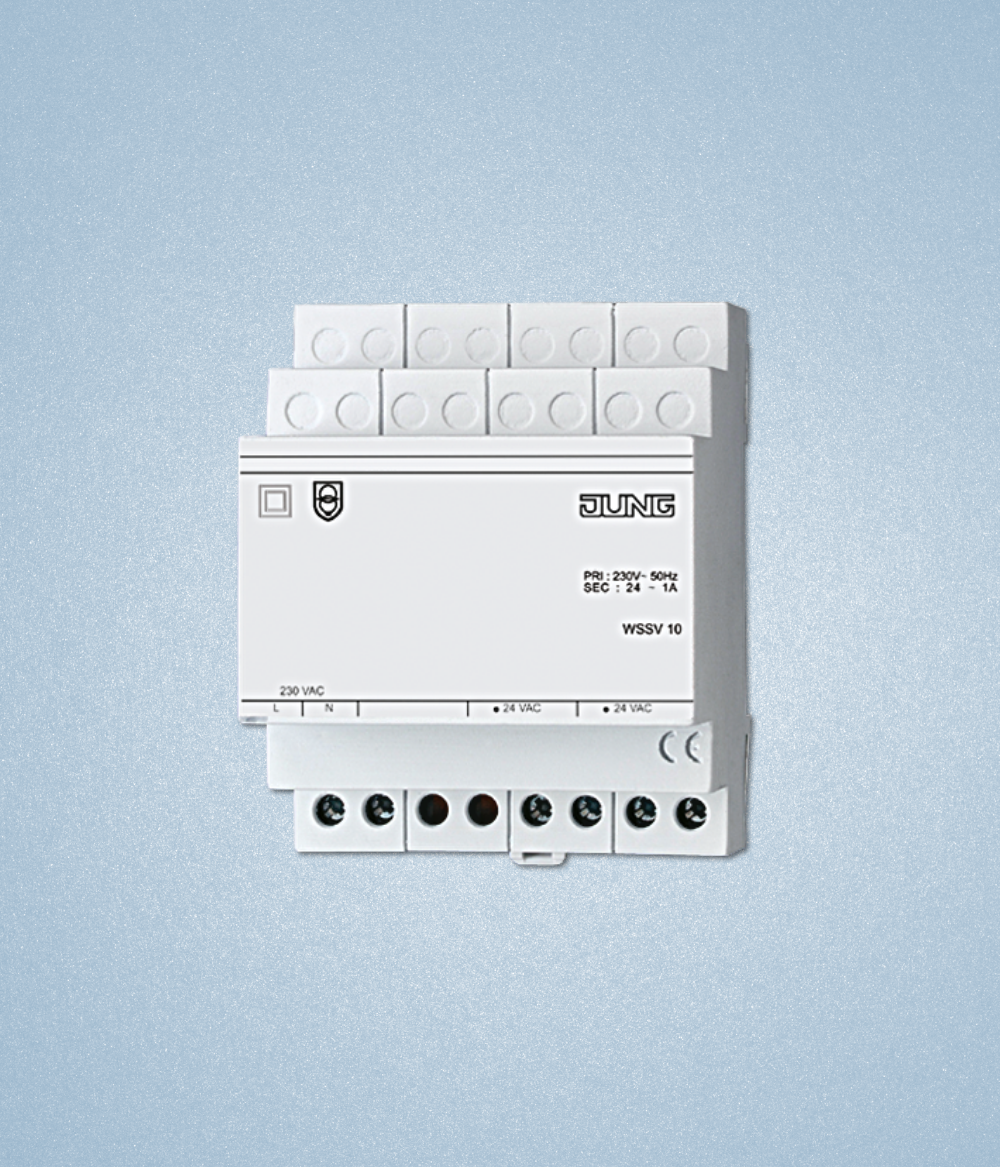

WSSV 10
Product characteristics
- Two internally connected 24 V outputs
- Overload and short-circuit protection via thermo switch
Technical data
| Rated voltage: | AC 230 V ~, 50/60 Hz |
| Output current: | max. 1 A |
| Output voltage: | AC 24 V ~ |
| Storage/transport temperature: | −25 … +70 °C |
| Ambient temperature: | −5 … +40 °C |
| Relative humidity: | max. 93 % r. h., no condensation |
| Mounting width: | 72 mm (4 rail units) |
| Connection: | screw terminals |
| single wire: | 1 x 0.5 … 4 mm² |
| stranded with ferrule: | 1 x 0.14 … 2.5 mm² |
| stranded without ferrule: | 1 x 0.34 … 4 mm² |
