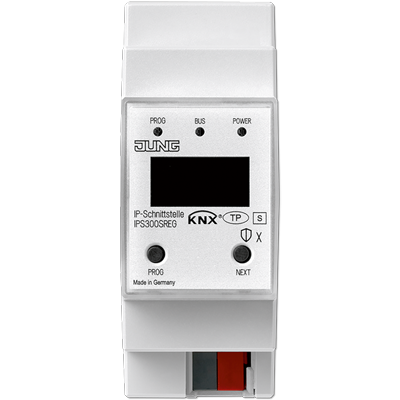

IP INTERFACE

rail mounting device, 2 rail units
Project design and commissioning with ETS5 or a more recent version

IPS 300 SREG

Intended use

  • Connection between KNX devices and PC or other data processing devices via IP
  • Operation as data interface
  • Mounting on DIN rail according to EN┬á60715 in distribution boxes



Product characteristics

  • KNX Data┬áSecure compatible with┬áETS┬á5.7.3 or higher
  • KNX IP┬áSecure compatible with┬áETS┬á5.7.3 or higher
  • 48 telegrams per second in IP┬ásecure mode
  • LED display for KNX communication, Ethernet communication and programming mode
  • Configuration via ETS, Telnet or software tool
  • SNTP server, buffered
  • Commissioning with display support
  • 8┬áconnections to IP┬áterminal devices, e.g. for simultaneous visualisation and configuration
  • Outage message of the KNX system to the IP┬ásystem
  • Electrical isolation between KNX and IP┬ánetwork
  • Power consumption max.┬á1┬áW

V05 or higher and in combination with remote access licence (ref.-no. IPS-L):

  • Encrypted access to KNX┬ádevices for configuration and maintenance outside the local network
  • Enabling access via communication objects
  • Feedback on access and programming processes via communication objects

Technical data

KNX medium: TP 256
Rated voltage KNX: DC 21 … 32 V SELV
Connection, KNX: terminal
Current consumption: max. 20 mA
Power consumption: max. 1 W
IP communication: Ethernet 10/100 BaseT (10/100 Mbit/s)
IP connection: RJ45 socket
Resolution: 128 x 64, OLED display
Ambient temperature: Ôłĺ5 … +45 ┬░C
Storage/transport temperature: Ôłĺ25 … +70 ┬░C
Relative humidity: max. 95 %
Mounting width: 36 mm (2 rail units)

Product documentation

Download

Product data sheet

Download

EC Declaration of Conformity

Download

Operating instructions

Download

How-to

Download

Software

Download

Database ETS5 Secure

Download

SKU: IPS 300 SREG Categories: ,
