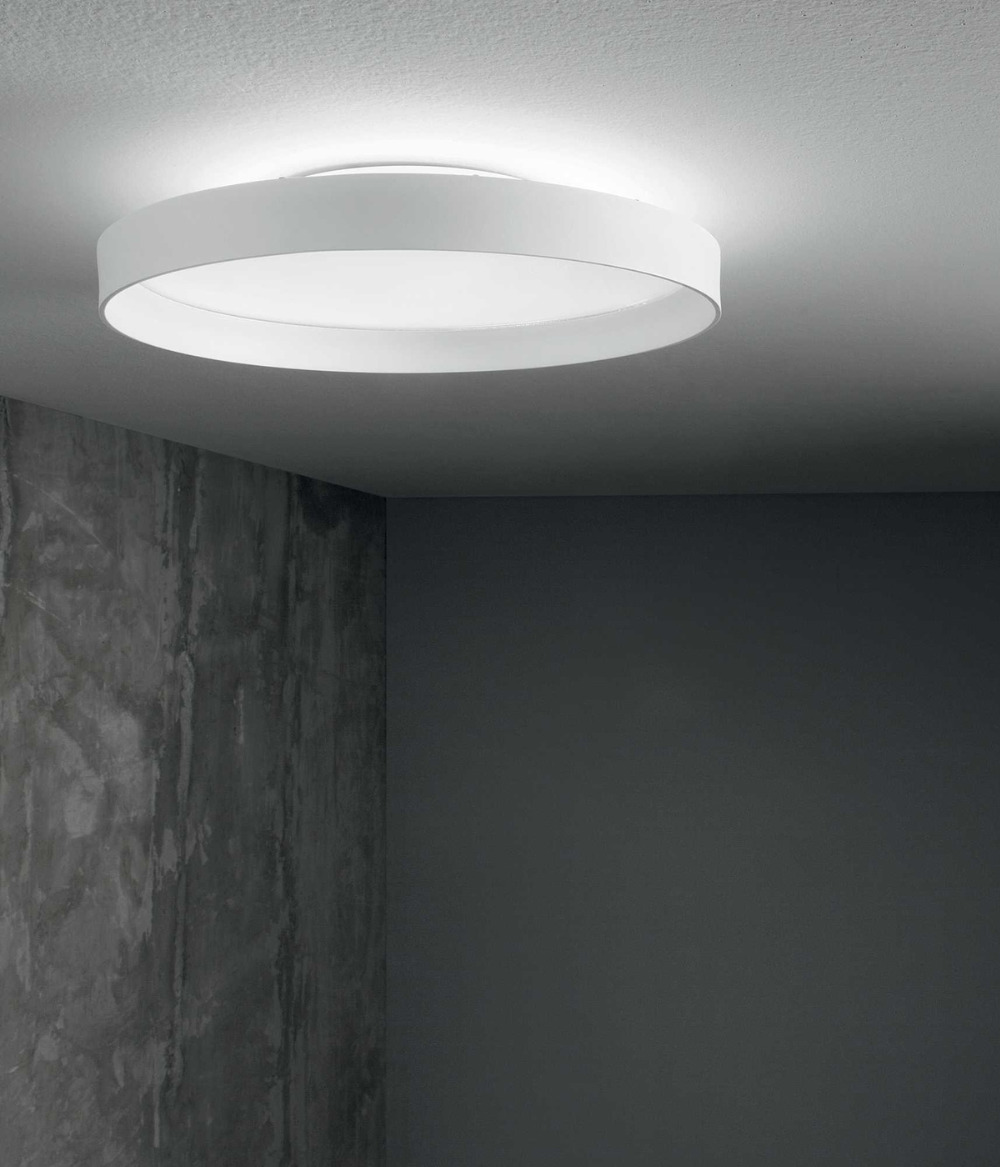

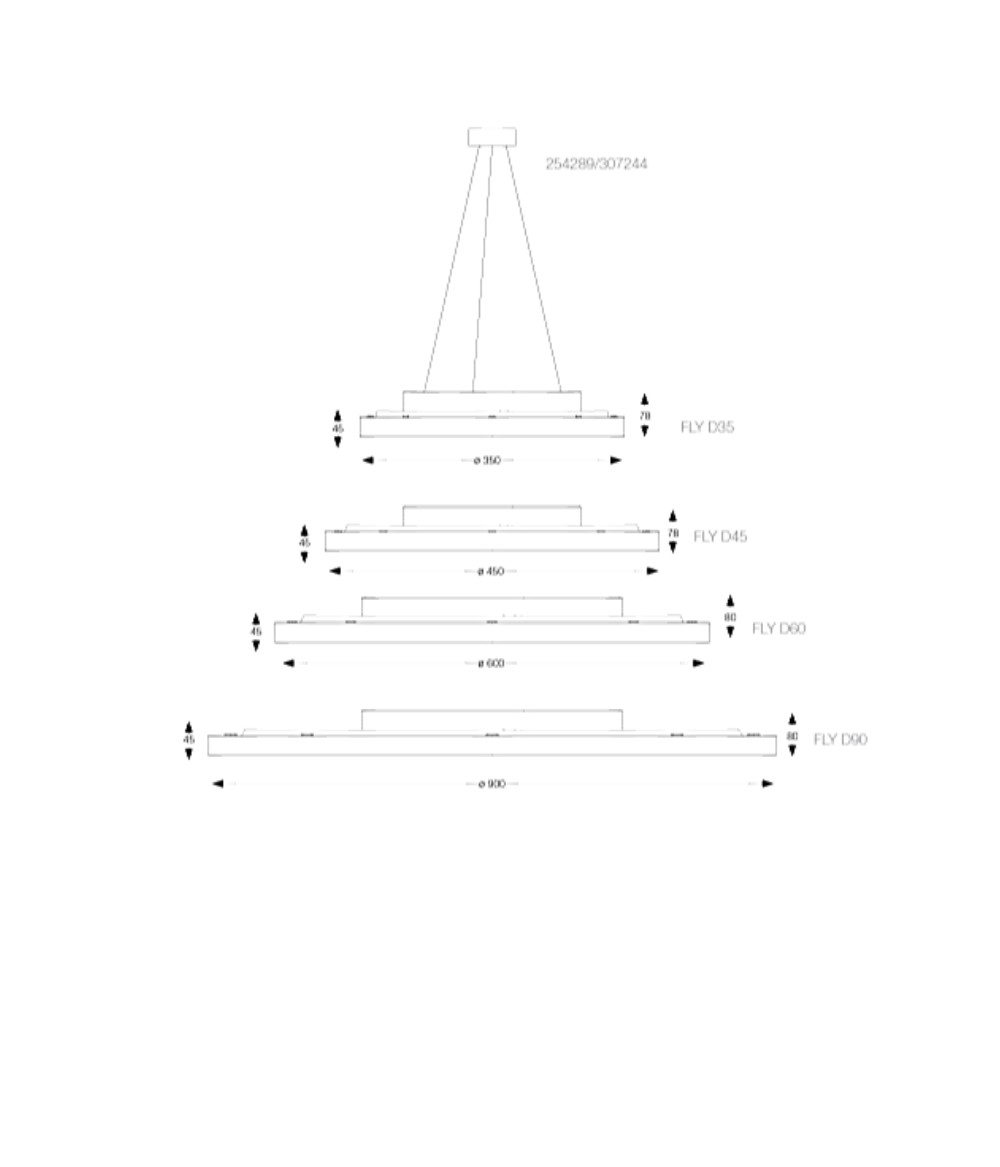

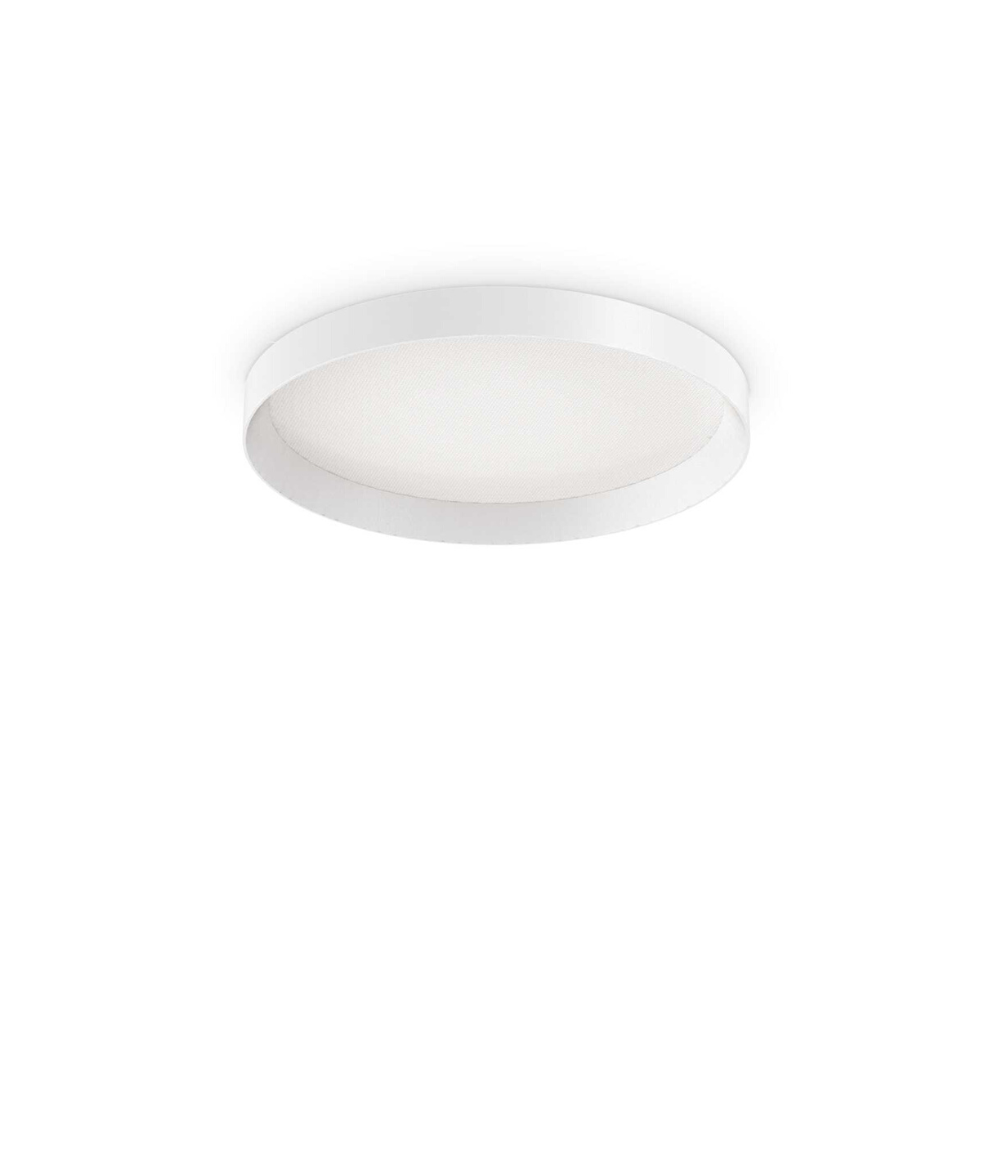

Family composed by ceiling lamps with circular base, available with four different diameters. Powder coated body with white finish, recessed optics with PMMA microprismatic diffuser with glare control.
|
INFORMATION |

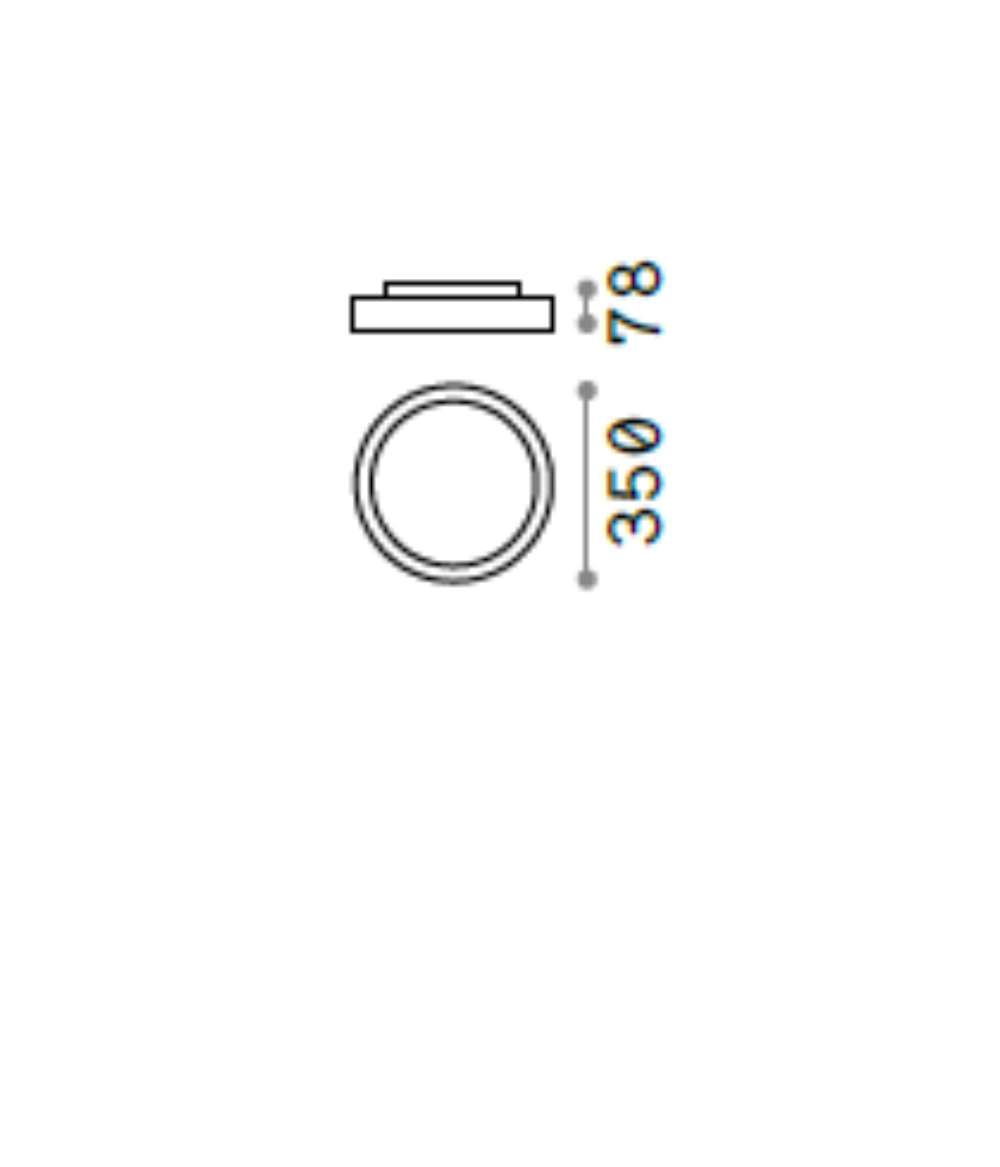

Fly pl d35 |

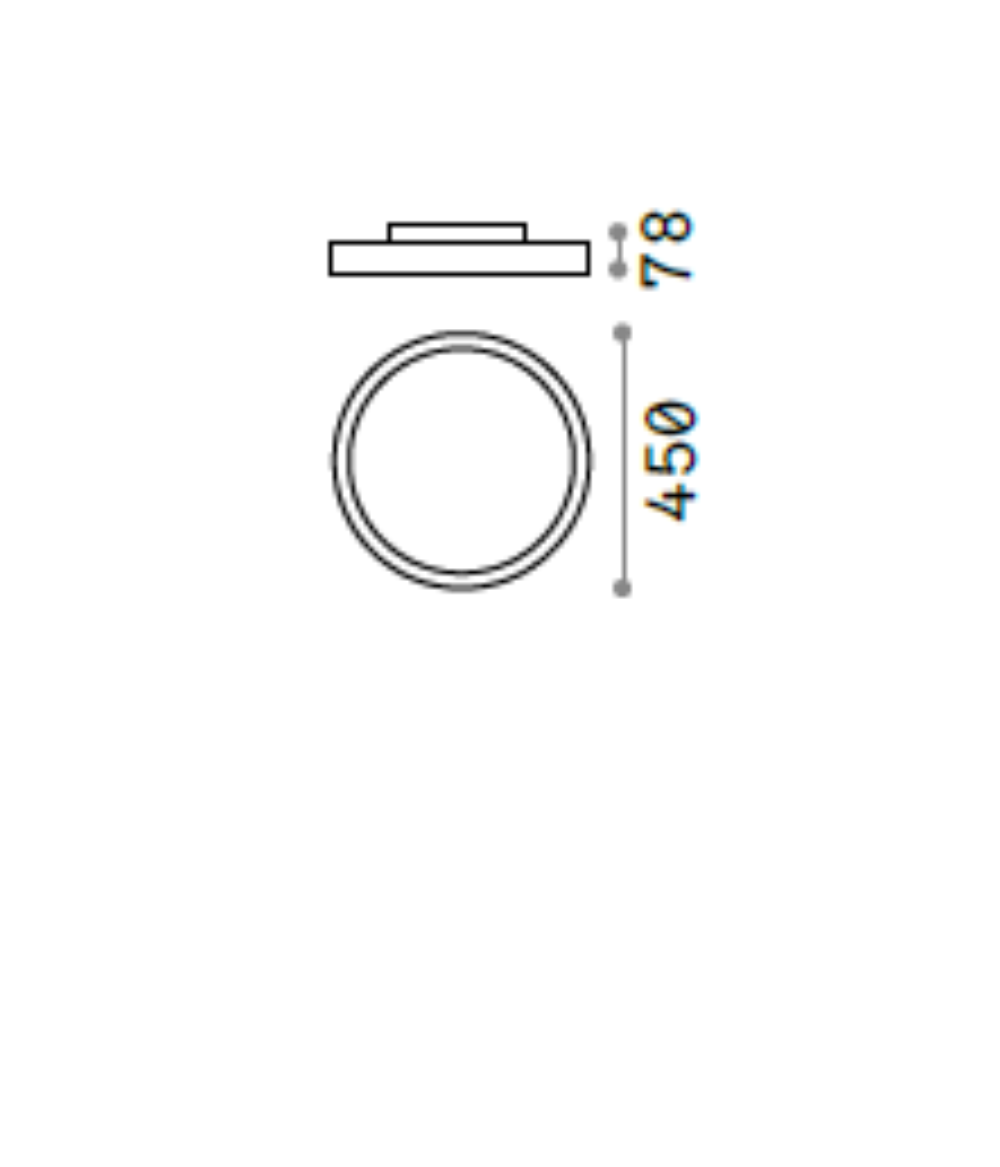

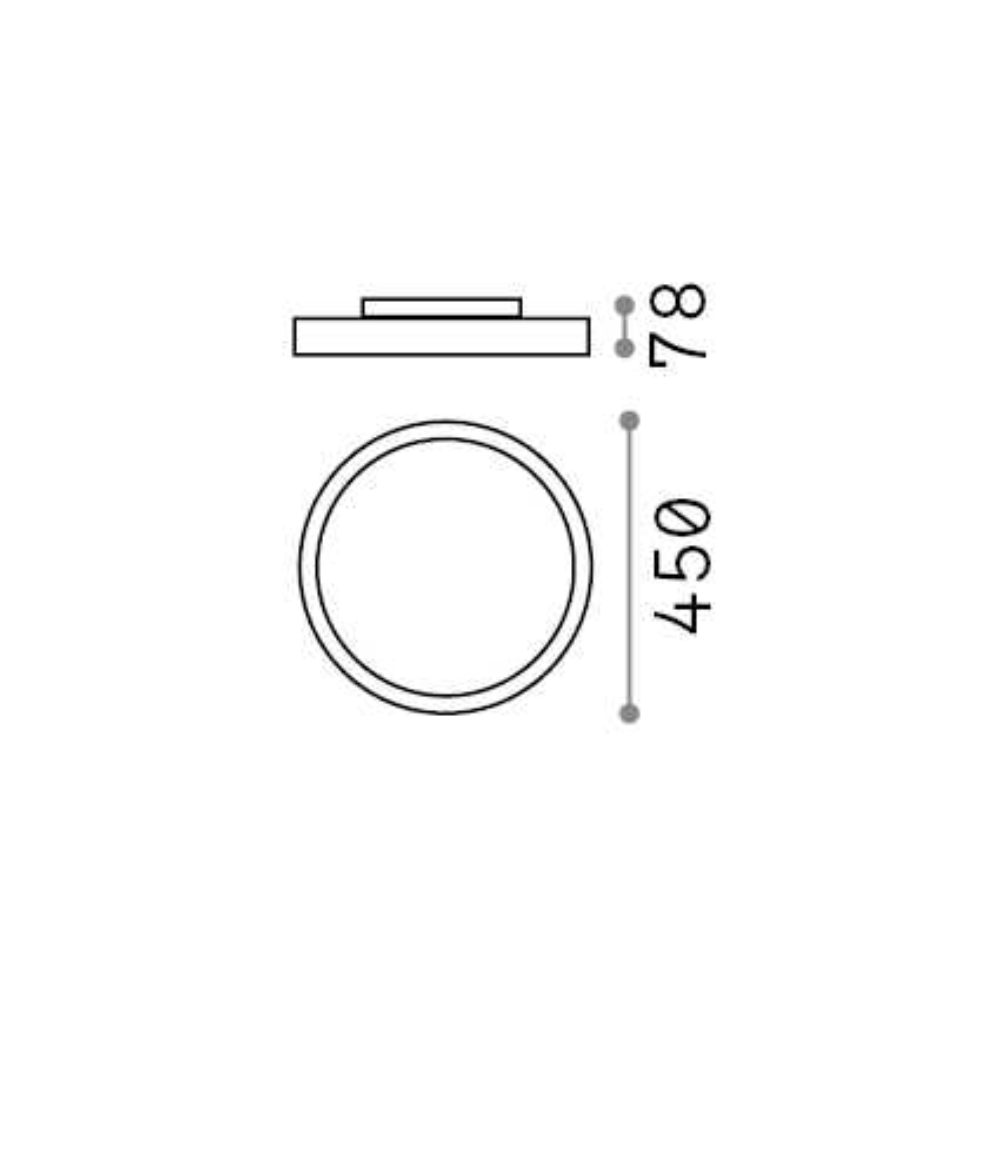

Fly pl d45 |

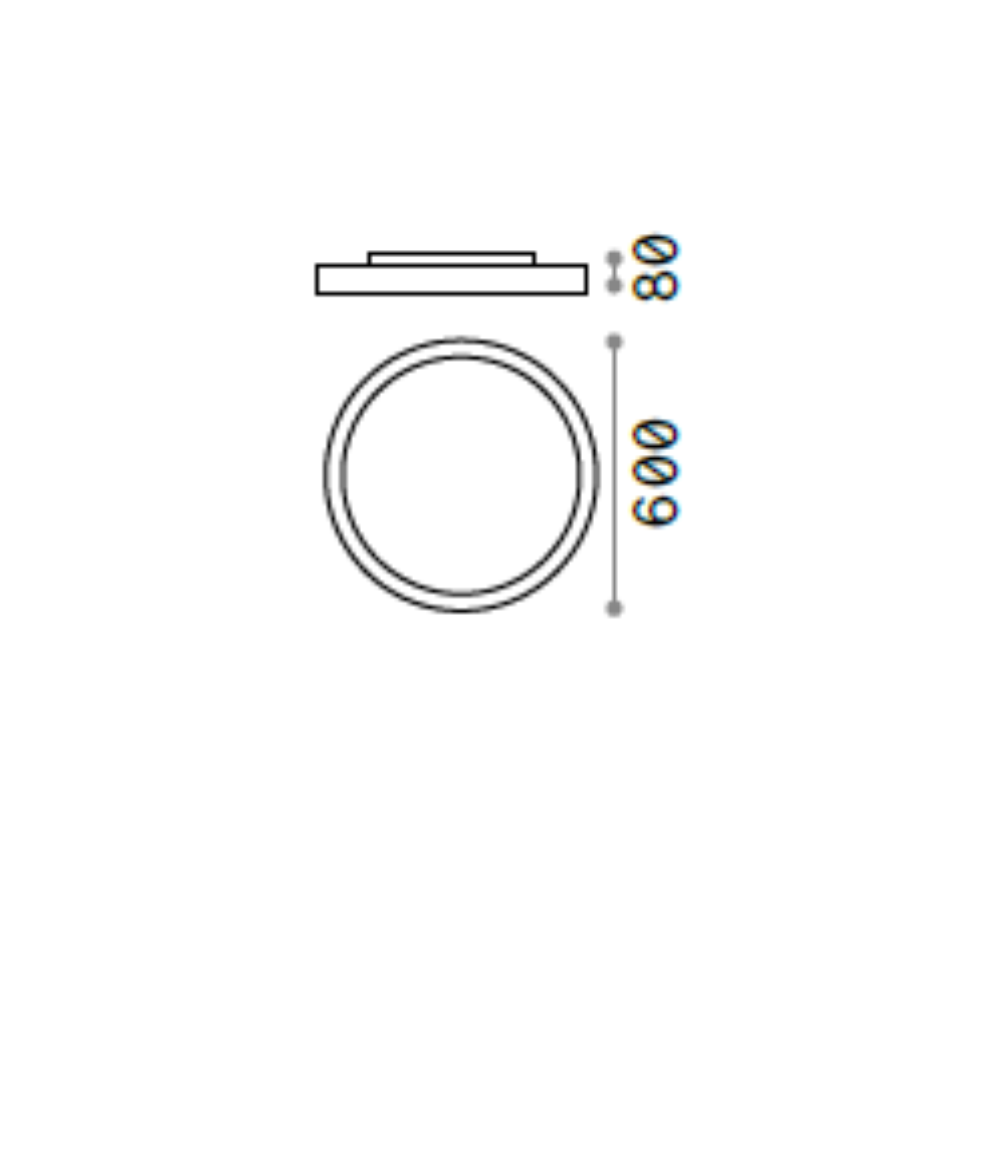

Fly pl d60 |

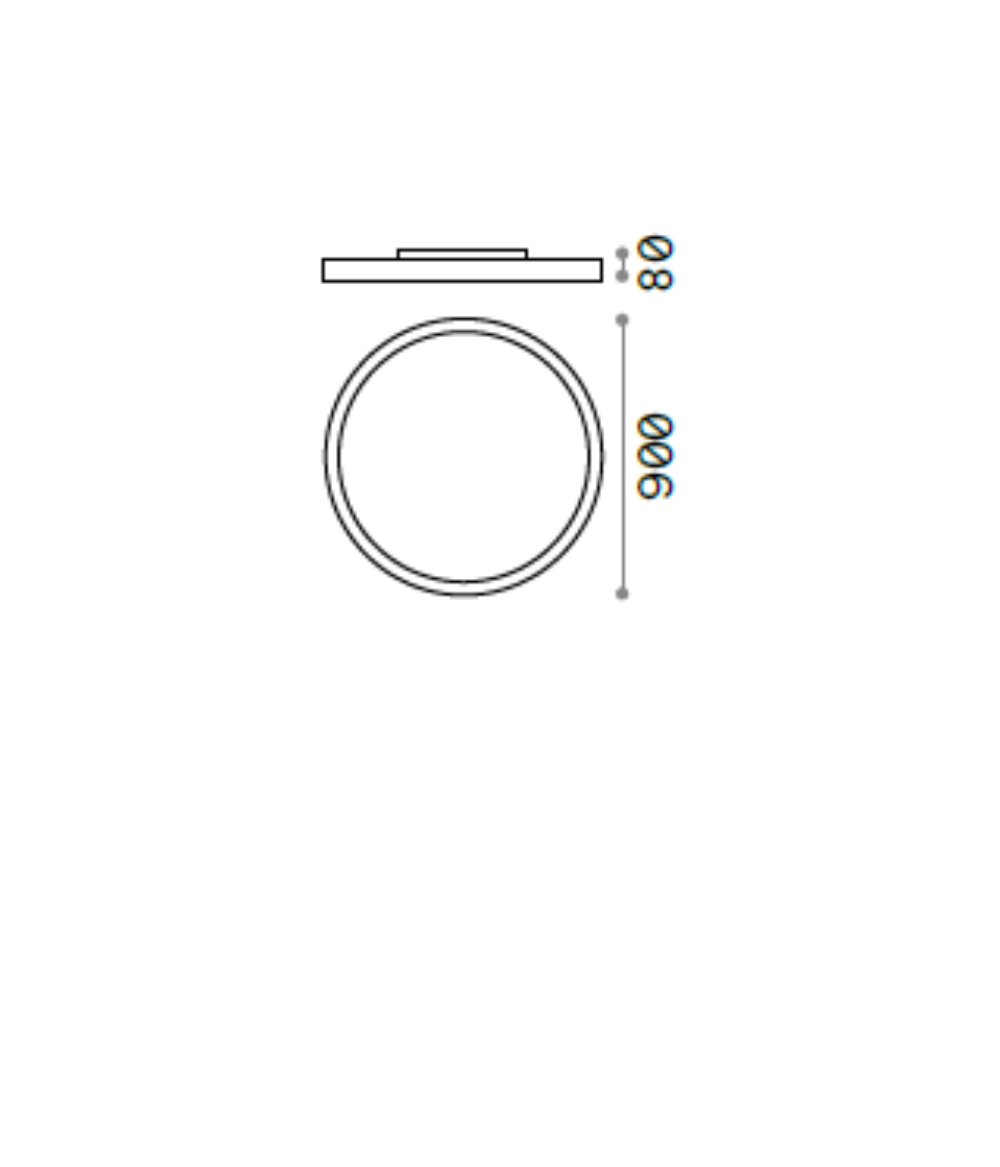

Fly pl d90 |
||||
|
CCT |
3000K |
4000K | 3000K | 4000K | 3000K | 4000K | 3000K |
4000K |
|
Power output |
220-240 V AC 50/60 Hz | 220-240 V AC 50/60 Hz | 220-240 V AC 50/60 Hz | 220-240 V AC 50/60 Hz | 220-240 V AC 50/60 Hz | 220-240 V AC 50/60 Hz | 220-240 V AC 50/60 Hz | 220-240 V AC 50/60 Hz |
|
Power supply |
In-built, included YES (by qualified operators only), electronic, tridonic | In-built, included YES (by qualified operators only), electronic, tridonic | In-built, included YES (by qualified operators only), electronic, tridonic | In-built, included YES (by qualified operators only), electronic, tridonic | In-built, included YES (by qualified operators only), electronic, tridonic | In-built, included YES (by qualified operators only), electronic, tridonic | In-built, included YES (by qualified operators only), electronic, tridonic | In-built, included YES (by qualified operators only), electronic, tridonic |
|
Protection index (Insulation Class) |
IP40 ( I ) | IP40 ( I ) | IP40 ( I ) | IP40 ( I ) | IP40 ( I ) | IP40 ( I ) | IP40 ( I ) |
IP40 ( I ) |
|
Integrated source |
Integrated LED module | Integrated LED module | Integrated LED module | Integrated LED module | Integrated LED module | Integrated LED module | Integrated LED module | Integrated LED module |
| Repleaceable source | – | – | – | – | – | – | – |
– |
|
Power |
18W | 18W | 26W | 26W | 53W | 53W | 65W | 65W |
| Emission | Direct | Direct | Direct | Direct | Direct | Direct | Direct |
Direct |
| Max consuption | Max 18W |
Max 18W |
Max 26W | Max 26W | Max 53W | Max 53W | Max 65W | Max 65W |
|
Features LED |
LED SMD SAMSUNG | LED SMD SAMSUNG | LED SMD SAMSUNG | LED SMD SAMSUNG | LED SMD SAMSUNG | LED SMD SAMSUNG | LED SMD SAMSUNG | LED SMD SAMSUNG |
| Duration LED (t. 25°c) | 50000 h | 50000 h | 50000 h | 50000 h | 50000 h | 50000 h | 50000 h |
50000 h |
|
CRI |
> 80 | > 80 | > 80 | > 80 | > 80 | > 80 | > 80 | > 80 |
|
Light beam flux |
2650 lm | 2800 lm | 3700 lm | 3900 lm | 7500 lm | 8000 lm | 9400 lm |
9900 lm |
| Useful light flux | 2110 lm | 2230 lm | 2970 lm | 3140 lm | 6050 lm | 6390 lm | 7490 lm |
7920 lm |
|
Standby power |
< 0.50 | < 0.50 | < 0.50 | < 0.50 | < 0.50 | < 0.50 | < 0.50 |
< 0.50 |
