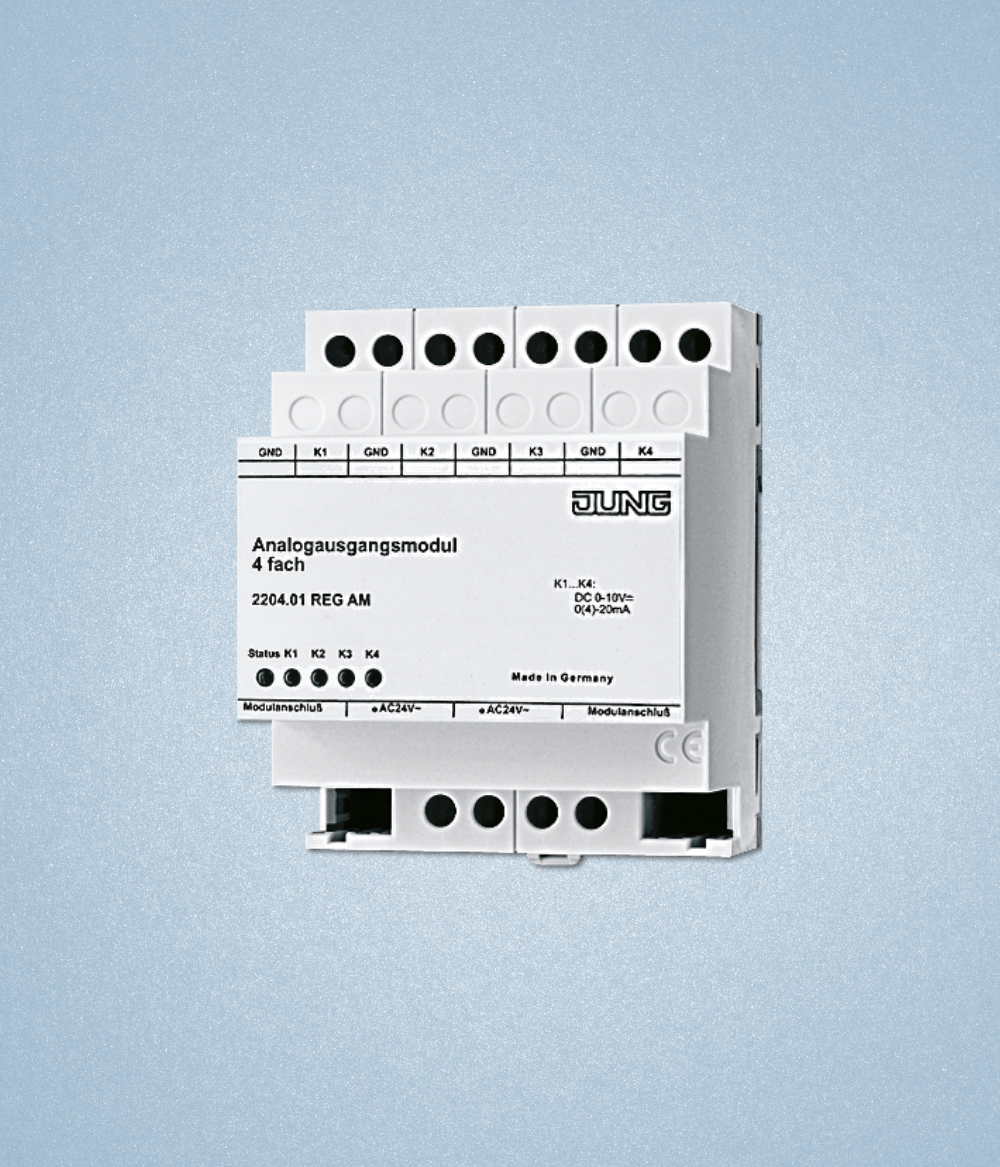

ANALOGUE ACTUATOR MODULE, 4-GANG

rail mounting device, 4 rail units

2204.01 REGAM

Extension module for analogue actuator 4-gang ref.-no.: 2204.01 REGA
Function

  • The analogue actuator module extends a KNX analogue actuator 4-gang by four additional sensor outputs, which can be parameterised by software.
  • Received data are converted into the output signals 0¬†…¬†1¬†V, 0¬†…¬†10¬†V, 0¬†…¬†20¬†mA, or 4¬†…¬†20¬†mA
  • The analogue output signals enable heating, ventilation and air conditioning units to adapt their output values to information received from the bus and thus to take part in control processes.
  • The output variables can be forced.
  • The evaluation of the module data itself and the processing of the forced operation takes place in the KNX analog output.
  • The analogue output module is connected to the KNX device via a system plug included in the scope of delivery.
  • Outputs that are not required can be switched off.
  • Voltage outputs are monitored for short circuits.
  • The output state is indicated by status LEDs.

Connectable analogue actuators

  • Do not connect electronic ballasts or electronic transformers with 1-10 V control input to the outputs.
  • Do not connect external voltages to the outputs. All connected components must ensure safe separation from other voltages.
  • Current outputs may be loaded with 500¬†‚Ą¶ max.
  • Voltage outputs must be loaded with 1¬†k‚Ą¶ min.
  • The GND terminals of the outputs K1 … K4 are connected internally.
  • In the event of a short-circuit between a voltage output K1¬†…¬†K4 and GND, the respective output is deactivated.

Technical data

Power supply
¬†¬†¬†¬†Supply voltage: AC 24 V ~ ¬Ī 10 %
    Current consumption: max. 120 mA
    Current consumption at system connector: 6 mA
Ambient temperature: ‚ąí5 … +45 ¬įC
Storage/transport temperature: ‚ąí25 … +70 ¬įC
Humidity
    Ambient/storage/transport: max. 93 % r. h., no condensation
Mounting width: 72 mm (4 rail units)
Weight: approx. 155 g
Terminals
    Outputs, power supply: screw terminals
¬†¬†¬†¬†single wire: 1 x 0.5 … 4 mm¬≤
¬†¬†¬†¬†stranded without ferrule: 1 x 0.5 … 4 mm¬≤
¬†¬†¬†¬†stranded with ferrule: 1 x 0.5 … 2.5 mm¬≤
Connection KNX device: system connector, 6-pole
Analogue outputs
    Number: 4
¬†¬†¬†¬†Ranges: 0 … 1 V DC, 0 … 10 V DC,
0 … 20 mA DC, 4 … 20 mA, DC
¬†¬†¬†¬†Voltage signal load: ‚Č• 1 kW
¬†¬†¬†¬†Current signal load: ‚ȧ 500 W
