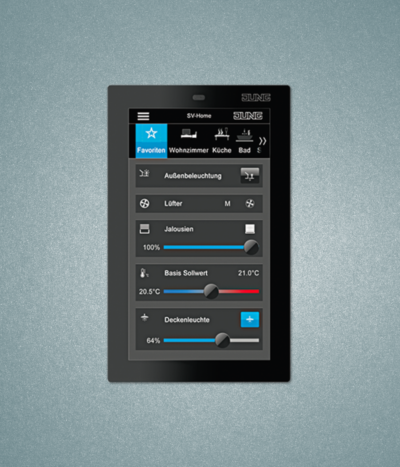

SMART CONTROL 8

Intended use

  • Visualisation and operation of system statuses and information on building automation
  • For horizontal installation (recommended) or vertical installation
  • Mounting in flush-mounted recessed box (ref.-no. EBG 24 or SC 7 EBG) or on flush box according to EN 60670-1 (recommendation: approx. 60 mm deep)

SC 0081 U

Product characteristics

  • High performance HD screen
  • Proximity sensor
  • Capacitive touchscreen
  • Cleaning mode with touch screen lock
  • Fanless, without rotating parts
  • KNX visualisation in combination with Visu Pro Server (ref.-no.: JVP-SERVER-H2)
  • KNX visualisation in combination with Smart Visu Server (ref.-no.: SV-SERVER-INT)
  • eNet visualisation in combination with eNet server for rail mounting (ref.-no.: ENET-SERVER) with software version 2.2 or higher
  • Door call function only in combination with Siedle Smart Gateway SG 650-.. or SG 150-..
  • Display of up to six IP camera images
  • Image memory integrated in Smart Gateway



Accessories:
Flush-mounted recessed box ref.-no.: EBG 24
Flush-mounted recessed box ref.-no.: SC 7 EBG
Power supply ref.-no.: NT 2415 REG VDC

Technical data

Screen diagonal: 203 mm / 8’’
Resolution: 1280 x 800 (WXGA)
Aspect ratio: 16:10
Overall dimensions (W x H): 225 x 145 mm
Profile height: 16 mm
Installation depth: 22 mm
Power consumption: max. 16 W
Power supply: DC 12 … 32 V SELV via external power supply (ref.-no. NT 2415 REG VDC, not included)
Operating system: Android 6
Processor: Cortex-A53
Main memory: 2 GB
Mass storage: 16 GB Flash (available disc space depends on operating system)
Loudspeaker: integrated
Microphone: integrated
USB ports: 1 x USB 2.0 type A
1 x Mini-USB OTG
LAN connections: 1 x 10/100/1000 Mbit/s
Ambient temperature: 0 … +30 °C
Atmospheric humidity: 5 … 80 % (no condensation)
