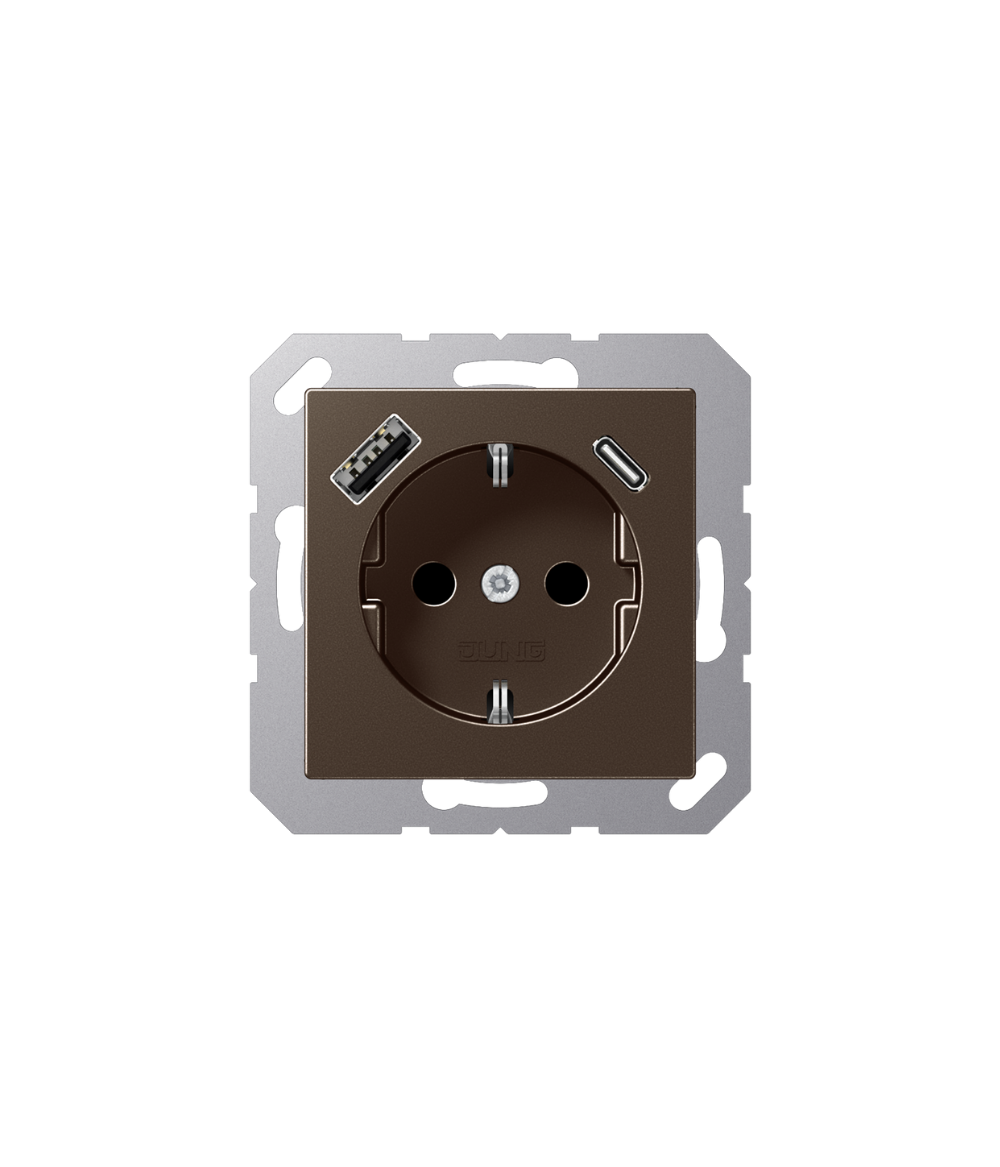

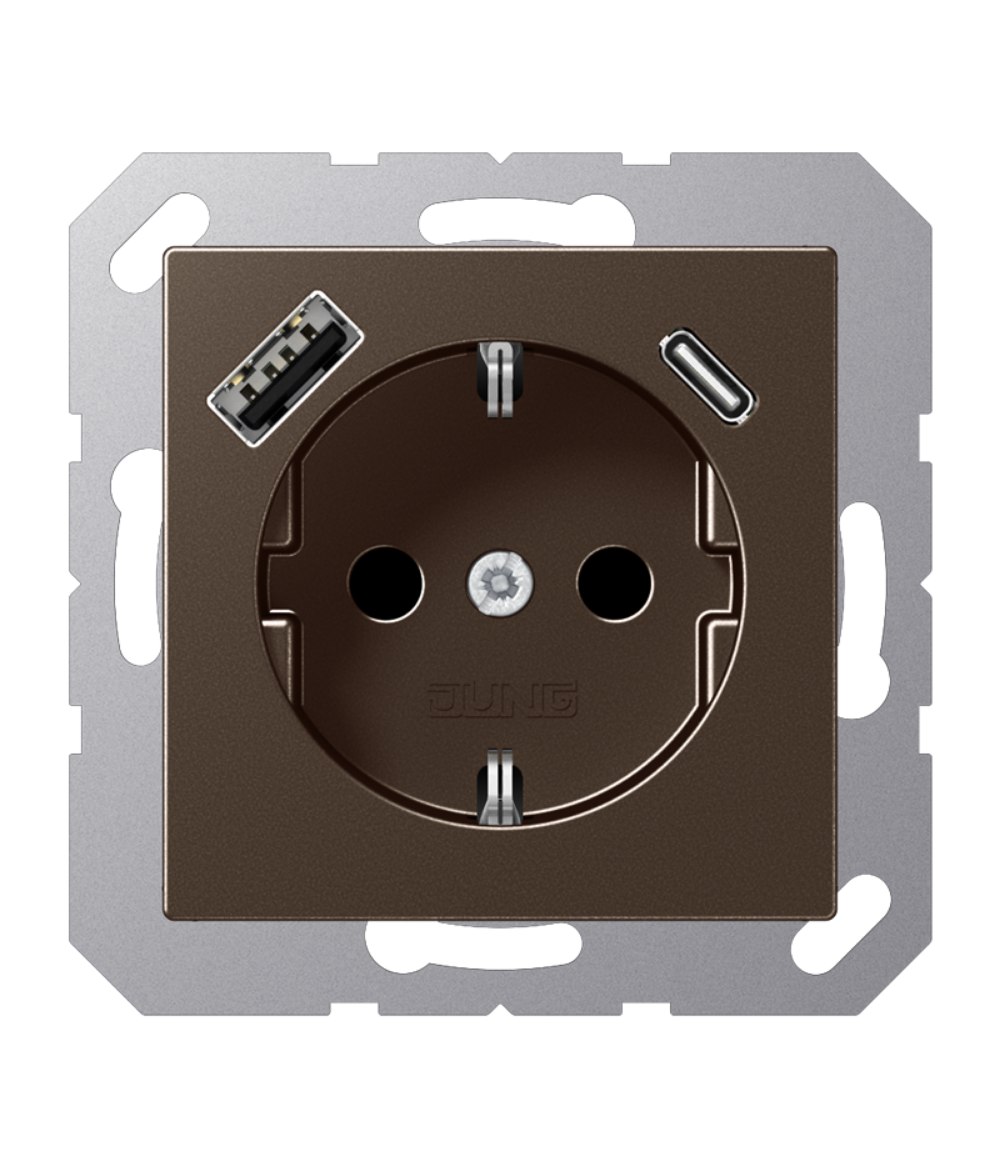

SCHUKO® socket with USB charger

0.00 inc V.A.T.

SCHUKO® socket with USB charger

with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type A and 1 USB port type C
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm2Installation in flush box with dimensions according to DIN 49073
depth of flush box (inner dimension): min. 57 mm

Technical data

Rated voltage: AC 220 … 250 V ~
Mains frequency: 50/60 Hz
Rated current, socket: 16 A
Output voltage USB: DC 5 V
Output current USB (total): 3 A
Stand-by power: ÔëĄ 25 mW
Ambient temperature: +5 … +35 ┬░C
Stora/transport temperature: Ôłĺ20 … +70 ┬░C
Protection level: IP 20
Connection mode: screwless terminals
┬á┬á┬á┬ásingle wire: 1.5 … 2.5 mm┬▓
┬á┬á┬á┬ástranded without ferrule: 1.5 … 2.5 mm┬▓
