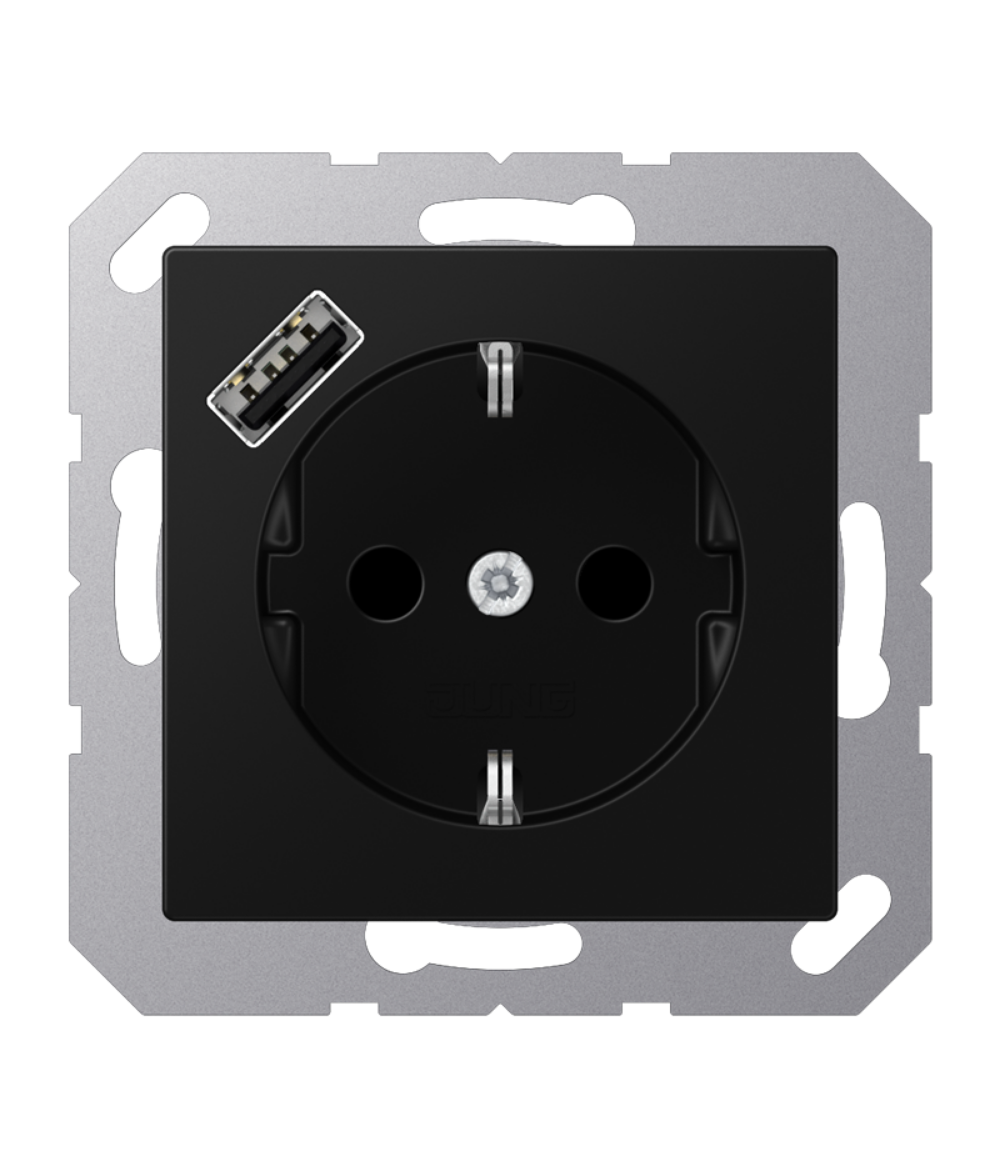

SCHUKO® socket with USB charger

with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type A
with quick charge function
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm2Installation in flush box with dimensions according to DIN 49073
depth of flush box (inner dimension): min. 57 mm
JUNG Quick Charge® supports these standards

Technical data

Rated voltage: AC 220 … 250 V ~
Mains frequency: 50/60 Hz
Rated current, socket: 16 A
Output voltage USB: DC 9 V / DC 5 V
Output current USB: 2 A / 3 A
Stand-by power: ≤ 60 mW
Ambient temperature: +5 … +35 °C
Stora/transport temperature: −20 … +70 °C
Protection level: IP 20
Connection mode: screwless terminals
    single wire: 1.5 … 2.5 mm²
    stranded without ferrule: 1.5 … 2.5 mm²
