Q E120 + i65CB SPEAKER BUNDLE

699.00 inc V.A.T.



Q Acoustics Q E120

The Q Acoustics E120 offers a wireless hi-fi system for any room in a home. Although intended for music or even watching movies on the TV, the E120 can fill any room with dynamic, immersive and superior stereo audio.

Q Acoustics Qi65CB

Using its years of experience, Q Acoustics has put its engineering prowess into creating a compact yet powerful unit. With a depth of less than 73mm and a slim bezel and grille design that clips magnetically into place, the Qi65CB will compliment your room in a discreet manner.

Wireless streaming and radio

Once installed into the living space wall (all cabling is supplied) and connected to chosen speakers, users can wirelessly stream music from popular music services, via Bluetooth® , from compatible devices such as smartphones, tablets, laptops and DAPs. Support for Bluetooth 5.0 provides greater range and a more stable wireless connection when streaming. Radio fans can enjoy broadcasts over DAB+ or FM with up to five presets configurable to access favourite stations with a single button touch.

Enhance the sound on your TV

With digital and analogue connections on hand, the E120 enables connection to a TV to enhance the audio, delivering a more immersive and dynamic television and movie watching experience. In addition, a rear analogue audio output can be configured to plug into a subwoofer for extra low-end bass sounds, an external power amplifier or even another E120 system.

Suitable for kitchens and bathrooms

Boasting an IP54-rating enables the system to be installed into bathrooms and kitchens where humidity and the ingress of water is possible. Using the supplied splash proof remote control (or control via the app/device they are using), homeowners can listen to their favourite music and radio stations while relaxing in the bath or preparing an evening meal.

Touch control and colour display

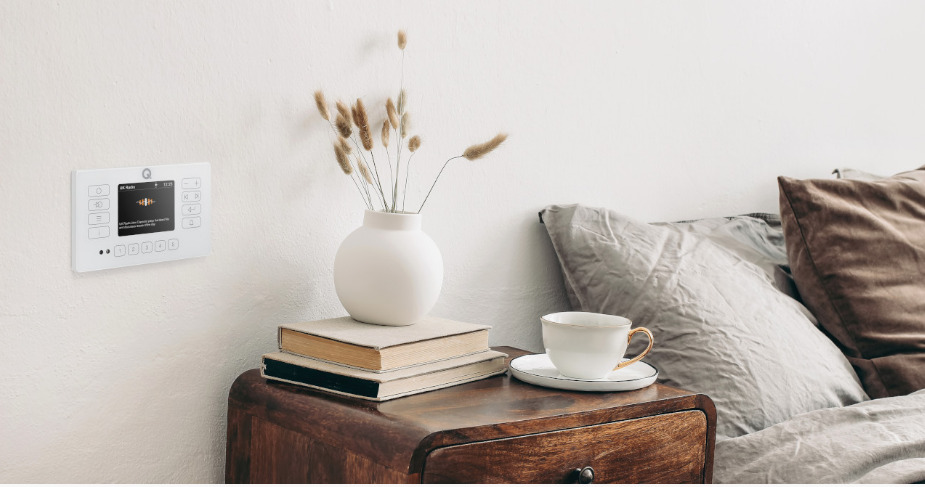

To blend seamlessly into any interior, the main wall panel arrives in two classic colours: black and white. Boasting touch sensitive controls and a sharp 3.2” colour display that shows track, artist and album name, an internal light sensor can be configured to automatically set the display brightness. Owners can also manually set the on and dim levels, an important feature when using E120 in bedrooms to avoid background light during sleeping hours. The E120 also features an alarm function.

Flexible speaker options

Powered by a high-quality class D stereo amplifier, the E120 serves up 2 x 25W of power at 6ohms – optimised for Q Acoustics’ in-ceiling and in-wall speakers. Furthermore, owners can connect any pair of passive speakers, including cabinet designs between 6 – 8 ohms. The speaker outputs can be configured as stereo or dual mono (both output left and right combined) by setting a small switch, while a pair of speakers can be wired in series on each output to support even distribution of sound in larger rooms.

E120 with Q Acoustics in-ceiling and in-wall speaker recommended combinations:

  • Q Acoustics E120 and a stereo pair of Qi65CB in-ceiling speakers for most indoor applications.
  • Q Acoustics E120 and a stereo pair of Qi65C Professional in-ceiling speakers for most indoor applications.
  • Q Acoustics E120 and stereo pair of Qi65CW Weatherproof 6.5-inch in-ceiling speakers for showers, bathrooms and verandas.
  • Q Acoustics E120 and stereo pair of Qi65RP Performance 6.5-inch in-wall speakers for a discrete hi-fi.
  • Q Acoustics E120 & stereo pair of Qi65EW Weatherproof on-wall speakers for gardens and veranda (wall mount the E120 by the exit to the garden or veranda)
Q Install
More Information
Features Q Acoustics Q E120

Audio Sources: DAB / DAB+ / FM with RDS

Bluetooth: Version 5.0, A2DP

Analogue input:

  • Type: 3.5mm stereo
  • Sensitivity: 350mV
  • Max level: 1.5V
  • Impedence: 10k ohm

Optical input:

  • Type: mini TOSLINK
  • Resolution: 16bit 48kHz

Speaker outputs: Left & right, stereo or dual mono

Analogue output:

  • Type: 3.5mm stereo
  • Modes: Fixed or variable
  • Max level: 670mV

Amplifier:

  • Type: Class D
  • Continuous power: 2 x 25W @ 6ohm
  • THD: 0.07% @ 1W / 0.2% @ rated power
  • SNR: >75dB @ Rated power
  • Frequency response: 20Hz – 20kHz +/- 1dB

IP ratings:

  • E120 wall panel: IP54
  • Splash proof remote: IP67

Control:

  • Touch sensitive buttons
  • Infra-red remote control
  • Bluetooth AVRCP v1.6: Play, pause, skip, track, artist, album name

Menu languages:

English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish

Alarms: x2 once, daily, weekdays, weekends

Power supply:

  • Input: 100 – 240V AC 50/60 Hz
  • Output : 22V DC 1.5amps
  • Dimensions (HxWxD): 30mm x 50mm x 115mm

Power consumption:

  • Typical: 10W
  • Standby: <1W
  • Deep standby: <0.5W

Wall panel

  • Net weight: 0.251kg
  • Dimensions (HxWxD): 91mm x 151mm x 33mm

Speaker cable supplied:

  • Gauge 19 AWG
  • Lengths: 2 x 7m

Power cable supplied:

  • Gauge: 16 AWG
  • Lengths: 5m
  • Connectors: 5.5mm x 2.5mm DC male / 5.5mm x 2.5mm DC female



Q Acoustics Qi65CB

Sensitivity (dB) 93
The higher the figure the easier it is to drive – meaning that a less powerful amp may be used

Impedance (ohms) 8
Resistance. A standard figure is 8 ohm. Figure halves when doubling the number of speakers

Power Rating (Watts) 50
Maximum power output long term/short term (RMS)

Depth 73
Depth of speaker (mm)

Diameter 232
Diameter of speaker inc surround (mm)

Cut out 203
Cut out required for speaker in ceiling (mm)

Color

Black, White

Brand

Qacoustics

SKU: QI0130 Categories: , ,
