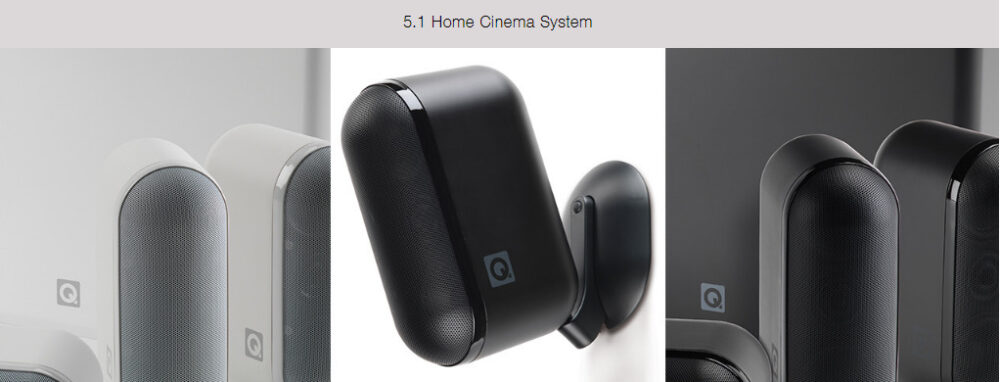

On each of the speakers 2 x 75mm drivers are mounted in a D’Appolito configuration around a 25mm HF ring radiator. Almost the whole baffle area is driver, giving this tiny speaker, huge output filling your room with sound. The compact Subwoofer has a completely concealed 200mm driver driven by 150watt class D amplifier. The controls are concealed behind a magnetic hatch except for those that are most needed, volume and phase adjustment, which discretely protrude through the cover for easy access, giving a clean, uncluttered look.
Place the Bass
The Subwoofer driver is located internally in its cabinet and is completely concealed. It faces a fixed baffle and the sound vents through a narrow grille on the top and both sides. This configuration makes the Subwoofer less sensitive to room placement, so it can be more easily hidden away in the room making the system even more discrete.
Fitting & Finishes
Each of the five speakers come with a table mount and a ball joint permits angling them in a wide variety of directions. It is also possible to hang them from the ceiling using the keyhole screw head fixings in the base. The table mount doubles as a wall bracket by revolving it 180 degrees on the ball joint and using the key-hole fixings to attach it to screws in the wall, again permitting the speaker to be pointed across a wide solid angle. All of the speakers and the Subwoofer are available in both white and black finishes.
- Enclosure Type: 2-Way Sealed Enclosure
- Enclosure Material: Aluminium
- LF Units: 2 x 3″ Long Throw (Neodymium)
- HF Unit: 1″ Ring Radiator (Neodymium)
- Power Handling: 15 – 100W
- Sensitivity: 85 dB @ 2.83V (Free Space)
- Impedance: 6 Ohm
- Frequency: 95Hz – 20KHz
- Overall Dimensions (H x W x D): 115 x 207 x 160(mm)
- Weight: 1.6 Kg
- Enclosure type: Ported
- Bass Unit: 2 x 170mm
- Amplified Power: 140W rms
- Crossover Frequency: 50Hz – 150Hz (var)
- Dimensions Max: W200 x H425 (with spikes) x D535 (with grille) mm
- Dimensions Min: W200 x H400 (w/o spikes) x D525 (w/o grille) mm
- Weight: 13.6kg
- Sold in: Single
- Warranty: 2 Years
What’s in the box?

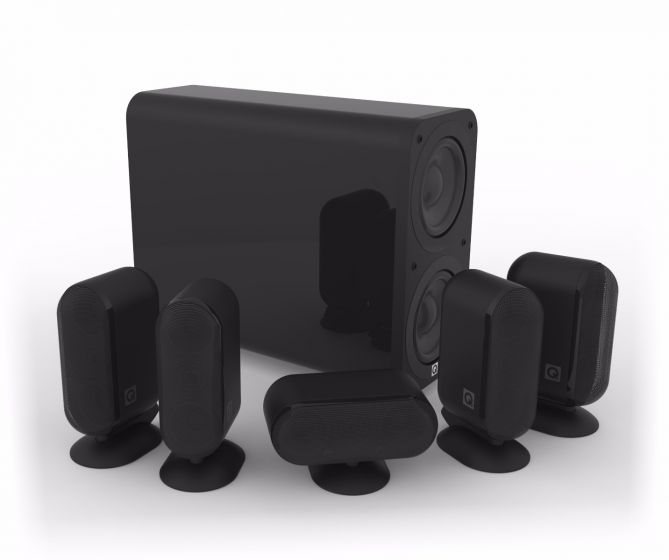

- 2 x Pairs 7000iLR Speakers
- 1 x 7000iC Centre Speaker
- 1 x 3070s Subwoofer
