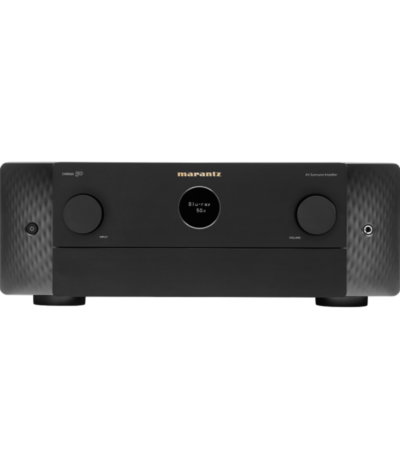

Marantz Cinema 40 9.4 Channel | 125 Watts Per Channel AV Receiver

2,799.00 inc V.A.T.

Premium 9.4 channel 125-watts-per-channel amplification, Dolby Atmos, DTS:X Auro 3D, and 8K Ultra HD plus HEOS® Built-in streaming. CINEMA 40 is a statement piece and reference level A/V Receiver.

Available on backorder

Achieve the Best Sound Possible

Dirac Live is an advanced room calibration solution that enables you to optimize the sound quality of your system. This world-class software is now available as an upgrade for CINEMA 40.

Excellence Only Begins with Performance

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world’s most demanding home theaters.

Key Benefits

Peerless Performance

Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of the Marantz sound.

Technology Leader

CINEMA 40 comes complete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

Exquisite Design

A modern expression of timeless design principles, CINEMA 40 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

Performance

The Marantz Sound Master meticulously tuned CINEMA 40 for amazing performance with careful parts selection to create the Most Musical Sound in your home.

Style

Excellence is heard and seen. CINEMA 40 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.

Customizability

Thoughtfully curated connectivity options and finetuning ability allow you to make CINEMA 40 your own.

Effortless

Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.

Power Amplifier

Number of Powered Channels 9
Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive)
Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) 125 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 165 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 235 W
70% Guarantee Yes
Discrete Power Amplifier Yes
Amplifier Topology Class A/B
Current Feedback Topology Yes
Bi-Amp Drive assignable

Multichannel Surround Technologies

DTS DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Other IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo2
Max Number of Processing (Preamp) Channels 11.4

Inputs/Outputs

Composite In / Out 2 / 0
Component In / Out 1 / 0
HDMI In / Out 7 / 3
Multi-Room Video Out via HDMI Yes
Analog In / Fixed Level Out 5 in / 0 out
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-Room Out: analog / digital 2 / 0
Multichannel Preamp Out 11.4
Subwoofer Out 4 (independent)
7.1 multichannel input No
Number of Speaker Terminals 11
Speaker A / B assignable
Multi-Room Speaker Terminal assignable
Front Inputs USB-A
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes

HDMI

Total HDMI Inputs / No. Support 8K 7 / 7
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 2 / 1
Analog to HDMI Video Conversion Yes
HDMI Upscaling 1080P/4K to 8K
Max resolution @ framerate 8K @ 60Hz, 4K @ 120Hz
Audio Return Channel ARC, eARC
Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate / Quick Frame Transport Yes / Yes
HDMI Pass-Through in Standby Mode Yes
CEC Yes
DSD Audio over HDMI Yes
Auto LipSync Yes

Performance Technologies

Copper Plated Chassis No
Toroidal Power Supply Transformer No
Hyper Dynamic Amplifier Modules (HDAM) (List version) Yes
Pure Direct Mode Yes
Gold Plated RCA Terminals Yes
Clock Jitter Reducer Yes

Acoustic / Room Correction

Audyssey MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC Yes / Yes
Dirac Live Upgradability Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync Yes

Music File Support

Lossy Formats MP3 / WMA / AAC
Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
DSD Audio 2.8MHz / 5.6MHz
Gapless Playback FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2 Yes
Network Audio Sharing Yes

Streaming Services

HEOS Multi-room and Streaming Yes
AirPlay Audio Streaming Airplay 2
Internet Radio TuneIn
Spotify* Spotify Connect
Pandora Yes
SiriusXM Yes
Other Streaming Services * Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
Roon tested Yes

Network Connectivity

Ethernet Ports Yes
Wi-Fi (include version / band) Yes
Bluetooth (Include version) Yes
Bluetooth Re-transmit for Bluetooth headphones Yes

Smart Home Integration And Control

Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android) Marantz AVR Remote App, HEOS
HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes / Yes
Multi-Room zones 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / Yes
Zone HDMI Output from HDMI Source Yes
Control Connectivity IP Control / RS232 Control / Web Control / App Control
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output 3
HDMI Diagnostics Yes

Others

Front Display 2 line FLD + port hole OLED
GUI Languages 9
Setup Assistant Yes
Smart Select on Remote Yes
Firmware Update by Network / USB Yes / Yes
ECO Mode Yes
Auto Power off Yes
Sleep Timer Yes

General

Available Colors Black/Silver-Gold
Metal Front Panel Yes
System Remote Control RC048SR
Power Consumption in W 710
Power Consumption No-Sound (ECO on/off) in W 65 / 110
Standby Consumption in W 0.2
CEC Standby Consumption in W 0.5
Network Standby Consumption in W Less than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches
Antenna:Vertical :(W x D x H) in inches
W/o Antenna:(W x D x H) in inches
17.3 x 16.2 x 7.3
17.3 x 16.2 x 10
17.3 x 15.8 x 7.3
Weight in lbs. 33.3
What’s in the box Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord
Brand

USER MANUAL

Download
SKU: 15-CINEMA40/N1B Categories: ,
