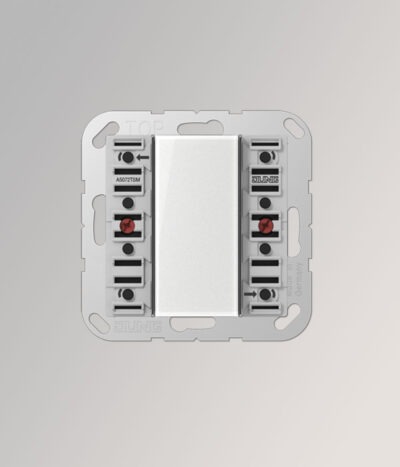

A 5073 TSM
KNX STANDARD PUSH-BUTTON MODULE, 3-GANG
including transparent cover ref.-no.: A 50 NA
for cover kit 3-gang, ref.-no.: A 503 TSA ..
ETS product family: Push-button
Product type: 3-gang push-button
- Operation of loads, e.g. light on/off, dimming, blinds up/down, calling up and saving light scenes, etc.
- Installation in flush box according to EN 60670-1
- KNX medium: TP 256
- Push-button functions switching, dimming, controlling blinds, value transmitter, calling up light scenes etc.
- To be completed with cover kit
- Inscription field
- One red status LED for a pair of buttons
- One operation LED as an orientation light and to indicate the programming status – red, green or blue adjustable
- Energy saving mode
- Integrated bus coupling unit
- Transparent cover kit (included) for temporary site use without design covers
Transparent cover ref.-no.: A 50 NA
Neutral cover ref.-no.: A 50 NA W, A 50 NA WW, A 50 NA SW, A 50 NA AL, A 50 NA CH, A 50 NA MO
