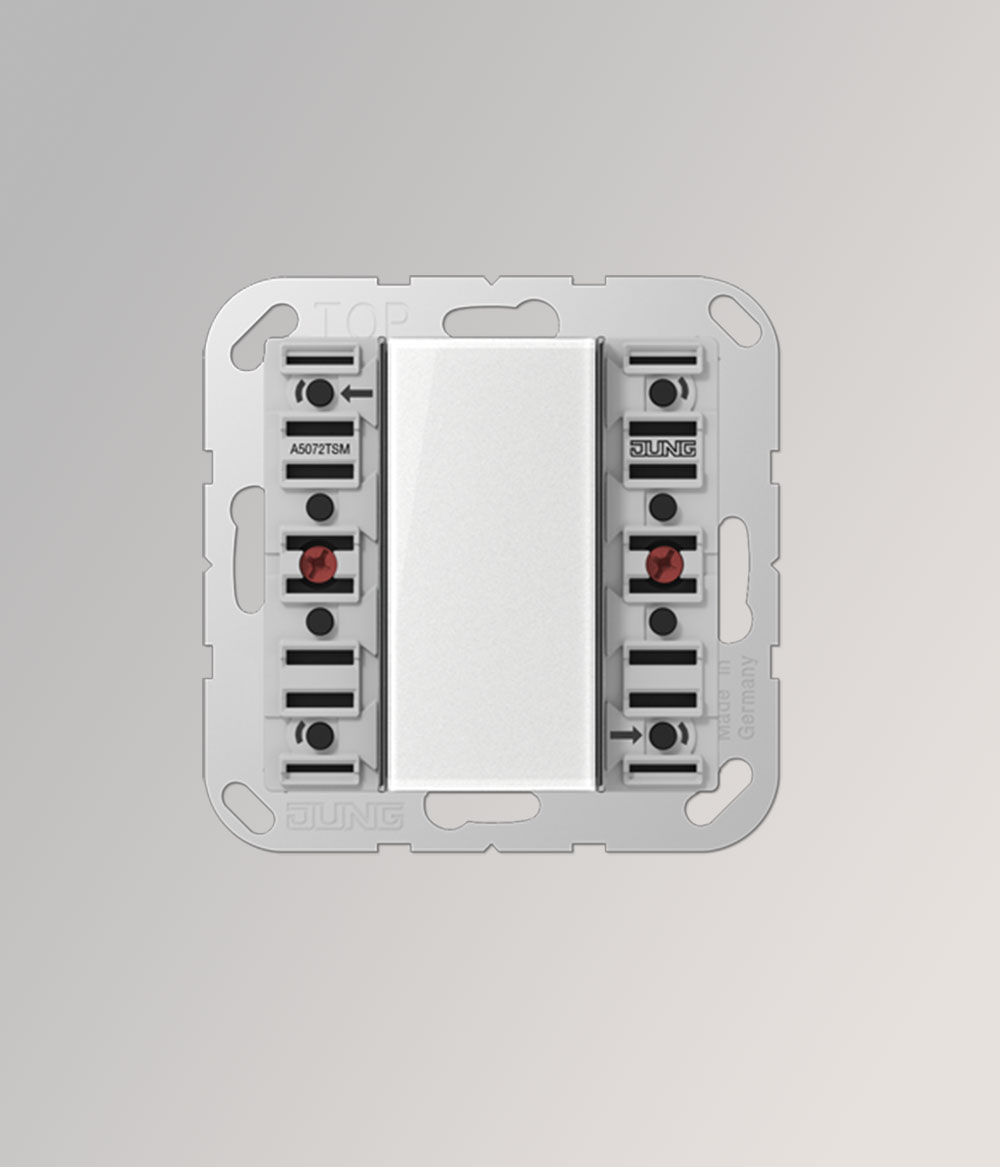

KNX standard push-button module, 2-gang

The JUNG KNX system offers a big plus in convenience, security and economy both in private dwellings and commercial construction. All the house functions and numerous multimedia functions can be networked together and controlled centrally with the KNX intelligent building system technology. The visualisation and evaluation of energy consumption, the Smart Metering, can also be implemented easily with KNX technology. The function of the individual components is determined by their programming, which can be changed and adapted at any time. What this means for the user is a convenient and flexible form of building technology that can be customised to meet his or her individual needs.

A 5072 TSM


including transparent cover ref.-no.: A 50 NA
for cover kit 2-gang, ref.-no.: A 502 TSA ..
ETS product family: Push-button
Product type: 2-gang push-button

Intended use

  • Operation of loads, e.g. light on/off, dimming, blinds up/down, calling up and saving light scenes, etc.
  • Installation in flush box according to EN 60670-1

Product characteristics

  • KNX medium: TP 256
  • Push-button functions switching, dimming, controlling blinds, value transmitter, calling up light scenes etc.
  • To be completed with cover kit
  • Inscription field
  • One red status LED for a pair of buttons
  • One operation LED as an orientation light and to indicate the programming status – red, green or blue adjustable
  • Energy saving mode
  • Integrated bus coupling unit
  • Transparent cover kit (included) for temporary site use without design covers

Spare part:

Transparent cover ref.-no.: A 50 NA


Neutral cover ref.-no.: A 50 NA W, A 50 NA WW, A 50 NA SW, A 50 NA AL, A 50 NA CH, A 50 NA MO

Product documentation


Product documentation


Database ETS3 + ETS4 + ETS5


Product data sheet


SKU: A 5072 TSM Categories: , ,
