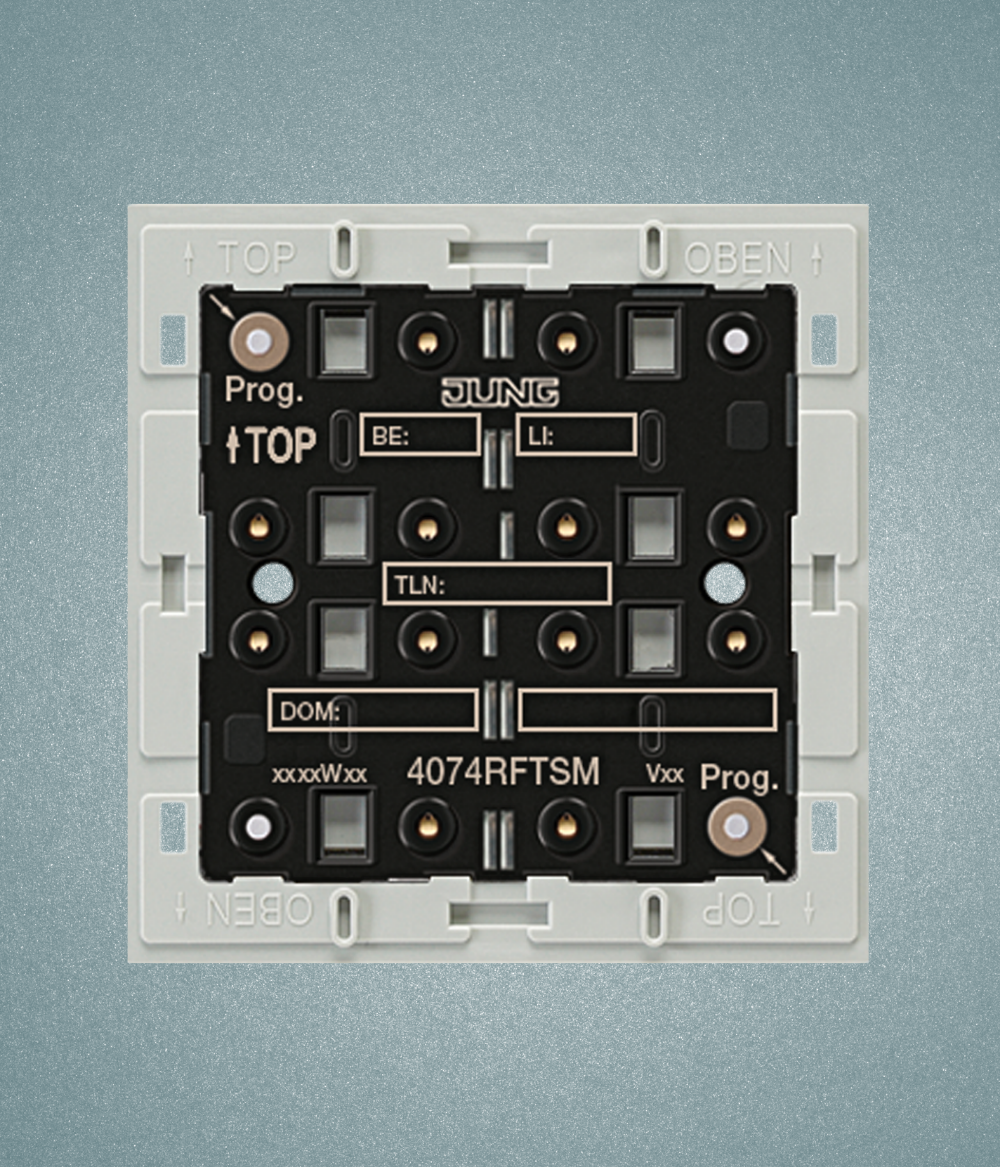

4074 RF TSM
Intended use
- Radio operation of loads, e.g. light on/off, dimming, Venetian blinds up/down, brightness values,
calling up and saving light scenes - Operation in cabled KNX systems via radio converter (ref.-no.: MK 100 RF)
- Mounting on flush box according to EN 60670-1, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)
Product characteristics
- Push-button functions switching, dimming, controlling blinds, value transmitter, calling up light scenes etc.
- Button pairs for push-button function or rocker function
- Status indication with LED
- Battery-powered device
- Project design and commissioning with ETS5 or a more recent version
- Cannot be combined with frames in FLAT DESIGN.
Technical data
| Rated voltage: | DC 3 V |
| Battery type: | 1 x lithium CR 2450N (included) |
| Ambient temperature: | −5 … +45 °C |
| Radio frequency: | 868.0 … 868.6 MHz |
| Transmitting power: | max. 20 mW |
| Transmission range in free field: | typical 100 m |
