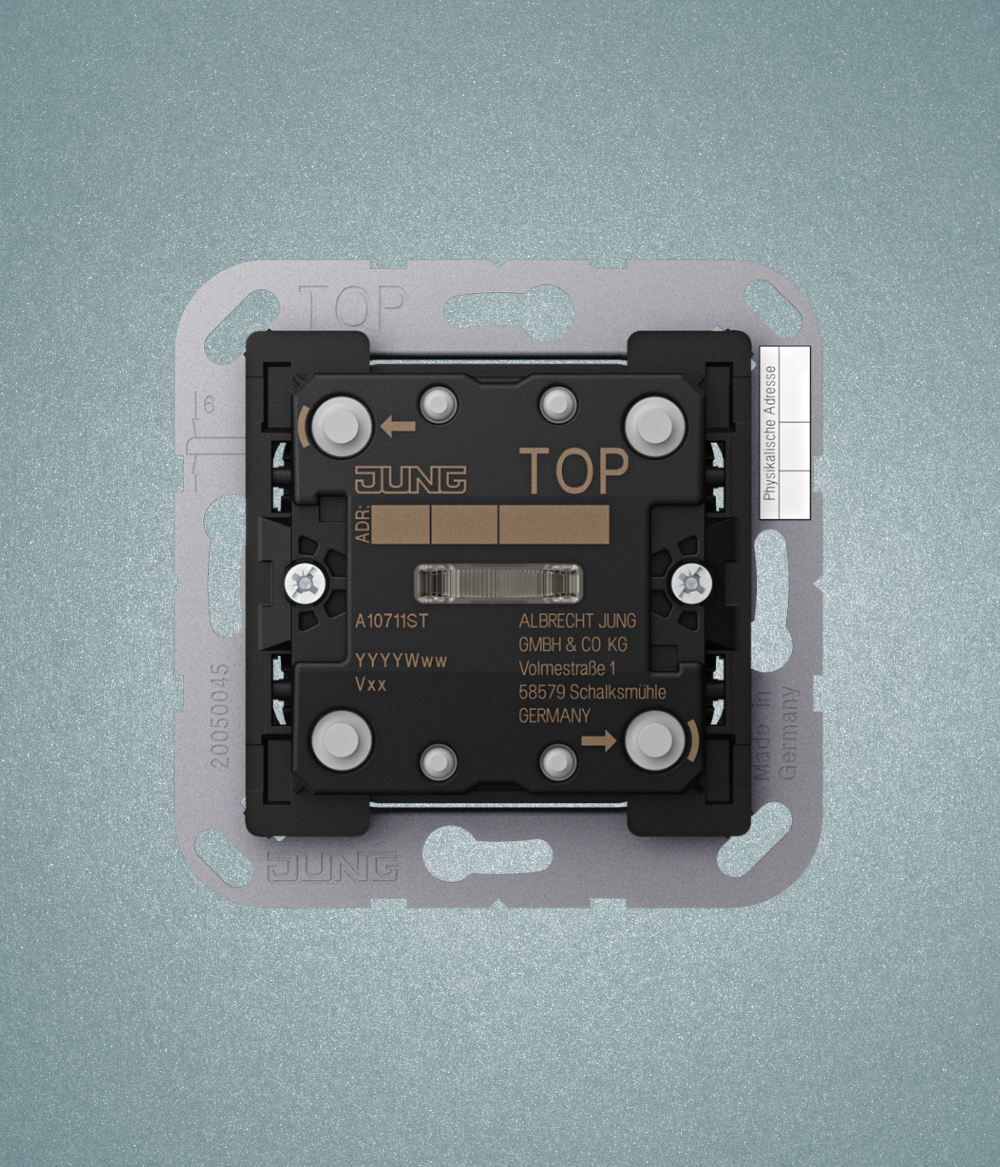

KNX PUSH-BUTTON STANDARD 1-GANG

KNX push-button standard 1-gang

Project design and commissioning with ETS5 or a more recent version
ETS product family: Push-button
Product type: 1-gang push-button

A 10711 ST

Intended use

  • Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc.
  • Installation in flush box according to EN┬á60670-1



Product characteristics

  • KNX medium: TP┬á256
  • Operating concept (rocker or button) adjustable for each operating area
  • Button evaluation (single- or dual-area operation) adjustable
  • One or two functions per operating area
  • Integrated bus coupling unit
  • One status┬áLED per operating area ÔÇô red
  • KNX Data┬áSecure compatible with┬áETS┬á5.7.3 or higher

Technical data

KNX
    KNX medium: TP 256
    Security: X-Mode
    Commissioning mode: S-mode
┬á┬á┬á┬áRated voltage: DC 21 … 32 V SELV
Current consumption KNX: 5.9 … 8.2 mA
Connection, KNX: terminal
Connection cable: EIB-Y (St)Y 2x2x0.8
Protection class: III
Ambient conditions
┬á┬á┬á┬áAmbient temperature: Ôłĺ5 … +45 ┬░C
┬á┬á┬á┬áStorage/transport temperature: Ôłĺ25 … +70 ┬░C
Brand
Product Type
Insert Type
Range

Operating instructions

Download

Product documentation

Download

EC Declaration of Conformity

Download

Database ETS5 Secure

Download

How-to

Download

Product data sheet

Download

SKU: A 10711 ST Categories: ,
