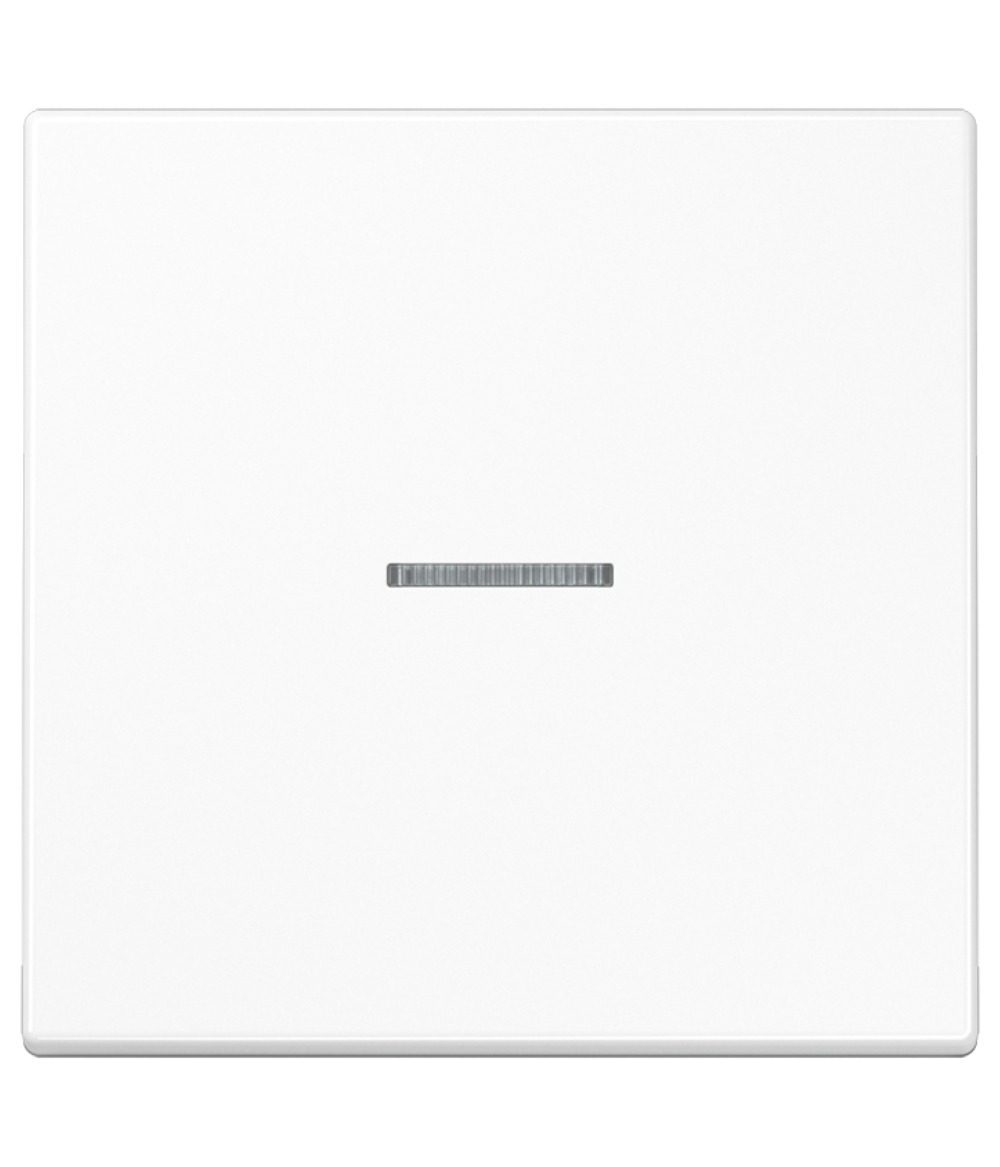

JUNG HOME PUSH-BUTTON 1-GANG

0.00 inc V.A.T.

for inserts “blinds” ref.-no.: 1730 JE and 1731 JE
for inserts “light” ref.-no.: 1701 SE, 1701 PSE, 1704 ESE1702 SE1710 DE1711 DE1712 DE1713 DSTE1723 NE
available April 2023

Inserts for JUNG HOME push-button 1-gang

Frames for JUNG HOME push-button 1-gang

Intended use

  • Manual and automatic operation of e.g. blinds/shutters, lighting or fans
  • Wireless linking with JUNG HOME system devices
  • Operation with system insert for switching, dimming, blind or satellite insert 3-wire

Product characteristics

  • Commissioning and operation using JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
  • Top, bottom and full-surface operation with up to 2 linked functions per rocker
  • Use the operating buttons to control groups, central functions or to call up light scenes
  • Use the operating buttons to operate wirelessly linked JUNG HOME devices
  • Multi-coloured status indicator with optional night mode
  • Actuator status feedback via status LED
  • Disabling of local operation
  • Local actuator integrated into groups, central functions and light scenes
  • Up to 16 time programs control the functions of the respective insert (e.g. switch ON/OFF, dim, move blind, adjust temperature)
  • Staircase lighting function (lighting cannot be switched off manually) with switch-off warning
  • Run-on time
  • Activate/deactivate automatic operation using JUNG HOME app
  • Automatic summer/winter time changeover
  • Automatic date and time update when connecting with smartphone
  • Maximum and minimum brightness adjustable, with dimming insert
  • Switch-on with last brightness or fixed switch-on brightness, with dimming insert
  • Ventilation position, blind/shutter running time, slat change-over time, change-over time for direction change and inverse operation adjustable, with blind insert
  • Evaluation of the satellite inputs (if present) for controlling the insert
  • Bluetooth® SIG Mesh for fully encrypted wireless communication and repeater function
  • Can be updated using JUNG HOME app

Available in future via update:
(Notes on updates and schedules can be found at www.jung.de/JUNGHOME)

  • Use the operating buttons to trigger the disable and override functions
  • Time programs with sunrise or sunset (astro function)
  • Time programs with random timing
  • Disable and override functions: Lock-out protection, continuous ON/OFF or ON/OFF for a fixed time
  • Night light function with period for brightness reduction, with dimming insert
  • Hotel function (orientation light instead of OFF), with dimming insert
  • Warm dimming (changing of the colour temperature with simultaneous brightness increase), with dimming insert
  • Switch-on delay / switch-off delay

A labelling request in the GRAPHIC TOOL must be submitted together with the order: www.jung.de/gt
Subsequent labelling of the buttons is not possible.

Technical data

Ambient temperature: +5 … +45 °C
Stora/transport temperature: −25 … +70 °C
Accuracy per month: ± 13 s
Power reserve: approx. 4 h
Radio frequency: 2402.0 … 2480.0 MHz
Transmitting power: max. 10 mW (class 1.5)
Transmission range
    in buildings: approx. 30 m
