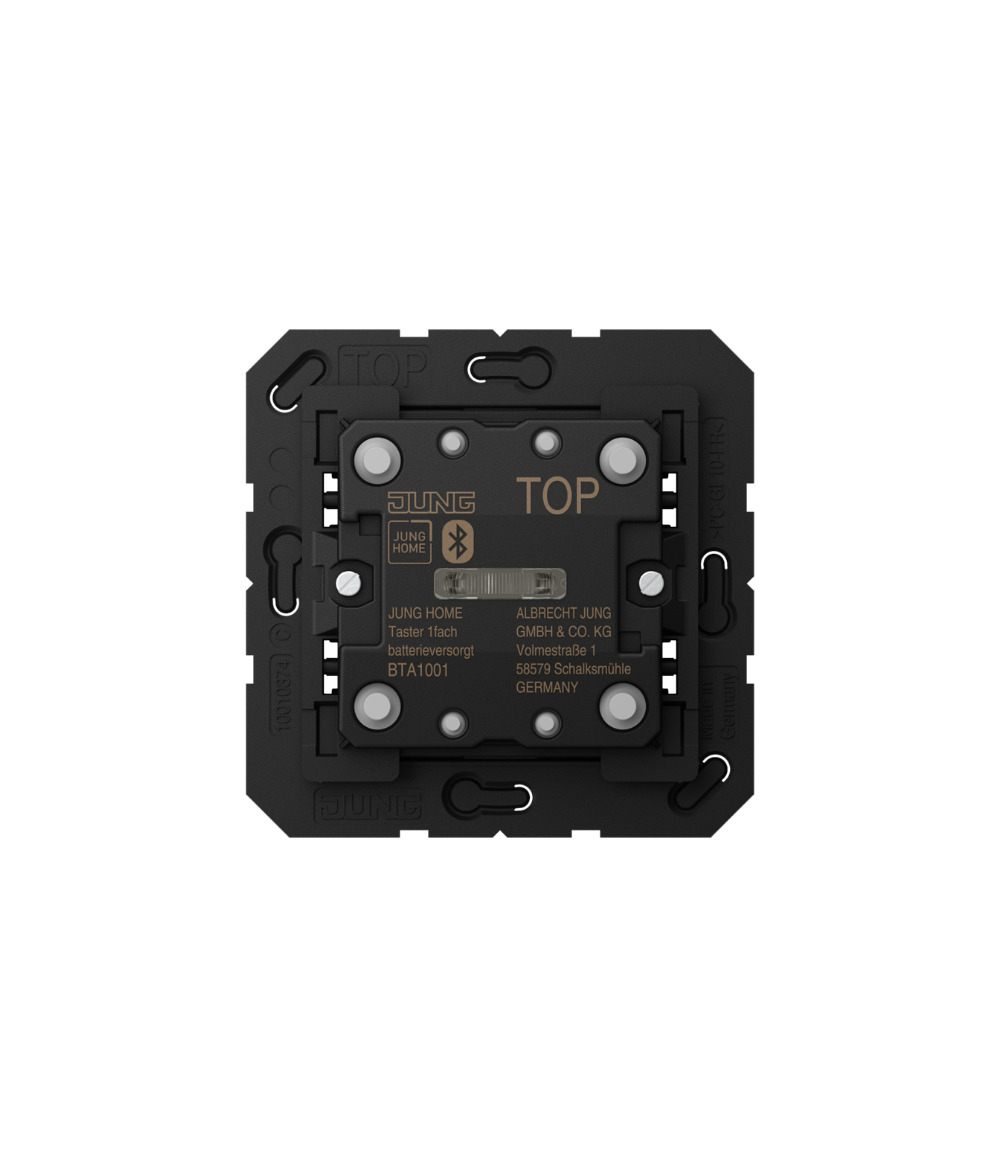

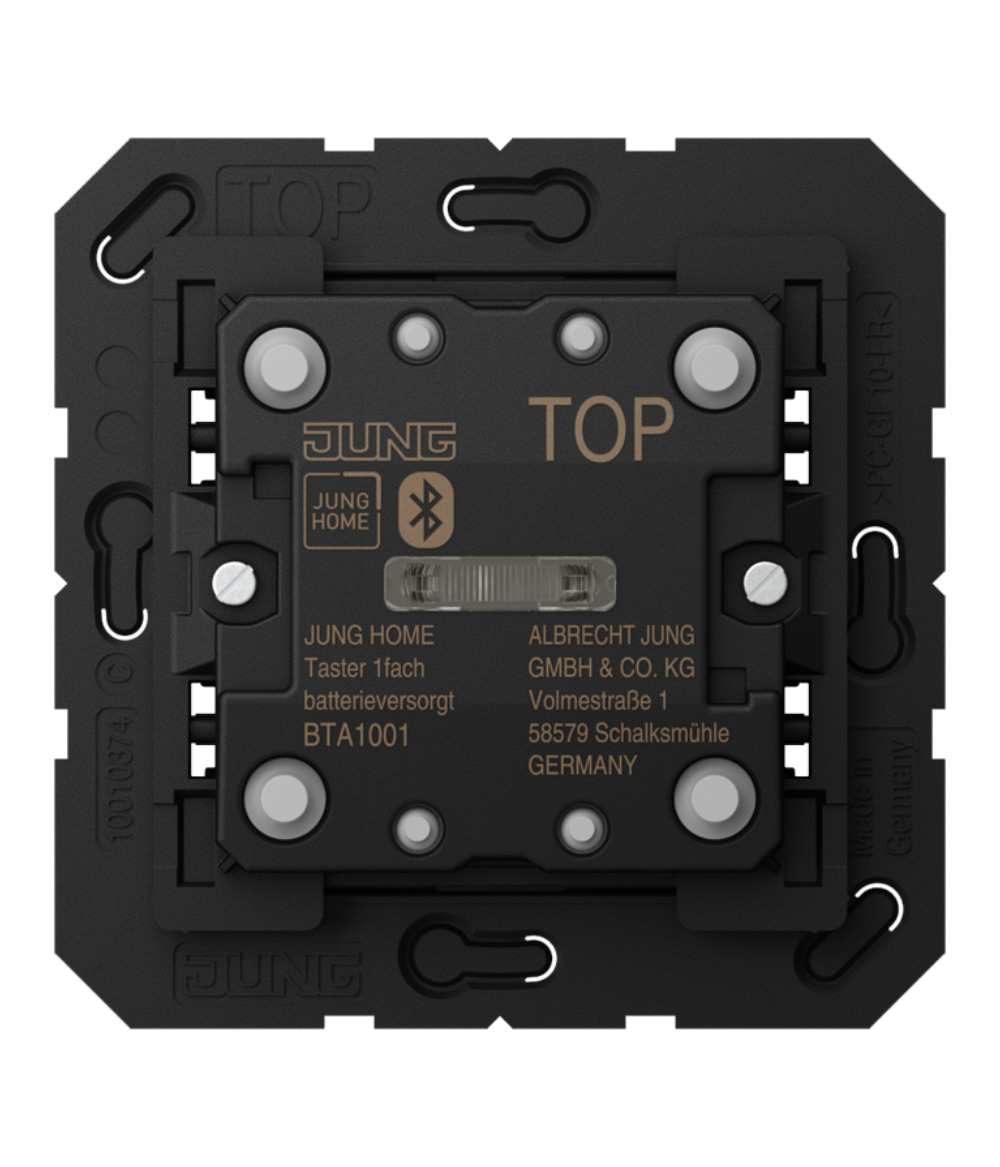

SKU: BT A 1001

including mounting plate, adhesive film and fastening screw
for rockers ref.-no. .. 101 KO5 .. of the AS and A ranges
available in the 2nd half of 2023

Covers for JUNG HOME push-button 1-gang, battery-powered BT A 1001

Frames for JUNG HOME push-button 1-gang, battery-powered BT A 1001

Intended use

  • Operation of e.g. blinds/shutters, lighting or fans
  • Wireless linking with JUNG HOME system devices
  • Mounting on wall box with dimensions according to DIN 49073
  • Screw fixing on walls or adhesive fixing on smooth surfaces

Product characteristics

  • Commissioning and operation using JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
  • Top, bottom and full-surface operation with up to 2 linked functions per rocker
  • Use the operating buttons to operate wirelessly linked JUNG HOME devices
  • Use the operating buttons to control groups, central functions or to call up light scenes
  • Multi-coloured status indicator
  • Battery status message via LED and JUNG HOME app
  • Actuator status feedback via status LED
  • Disabling of local operation
  • Bluetooth® SIG Mesh for fully encrypted wireless communication and repeater function
  • Can be updated using JUNG HOME app

Available in future via update:
(Notes on updates and schedules can be found at www.jung.de/JUNGHOME)

  • Use the operating buttons to trigger the disable and override functions

Technical data

Rated voltage: DC 3 V
Ambient temperature: −5 … +45 °C
Stora/transport temperature: −25 … +70 °C
Battery type: 1 x Lithium CR 2450N
(recommended) or CR 2450
Battery life typical 4 to 5 years
Radio frequency: 2402.0 … 2480.0 MHz
Transmitting power: max. 10 mW, class 1.5
Transmission range
    in buildings: approx. 30 m
