IDEAL LUX Play pl1

101.15 inc V.A.T.

Indoor ceiling or wall mounted adjustable projector with integrated LED sources and
direct light emission.

Powder coated die-cast aluminum base, junction and orientable body. Knurled clear acrylic diffuer. Available with black finish or white finish with black rear cover and front inner ring.

INFORMATION Play pl1
Power output 220-240 V AC 50/60 Hz
Power supply In-built, included

Replaceable (by qualified operators only),

electronic

Adjustability vert. 0°-90° , orizz. 0°-350°
Protection index (Insulation Class) IP20 ( II )
Integrated source Integrated LED module
Repleaceable source Replaceable (by qualified operators only)
Power LED 7W
Emission Direct
Max consuption Max 7W
Features LED LED COB
CCT 3000 K
Duration LED (t. 25°c) 30000 h
CRI > 90
Light beam flux 520 lm
Useful light flux 360 lm
Standby power < 0.50
Weight
N/A

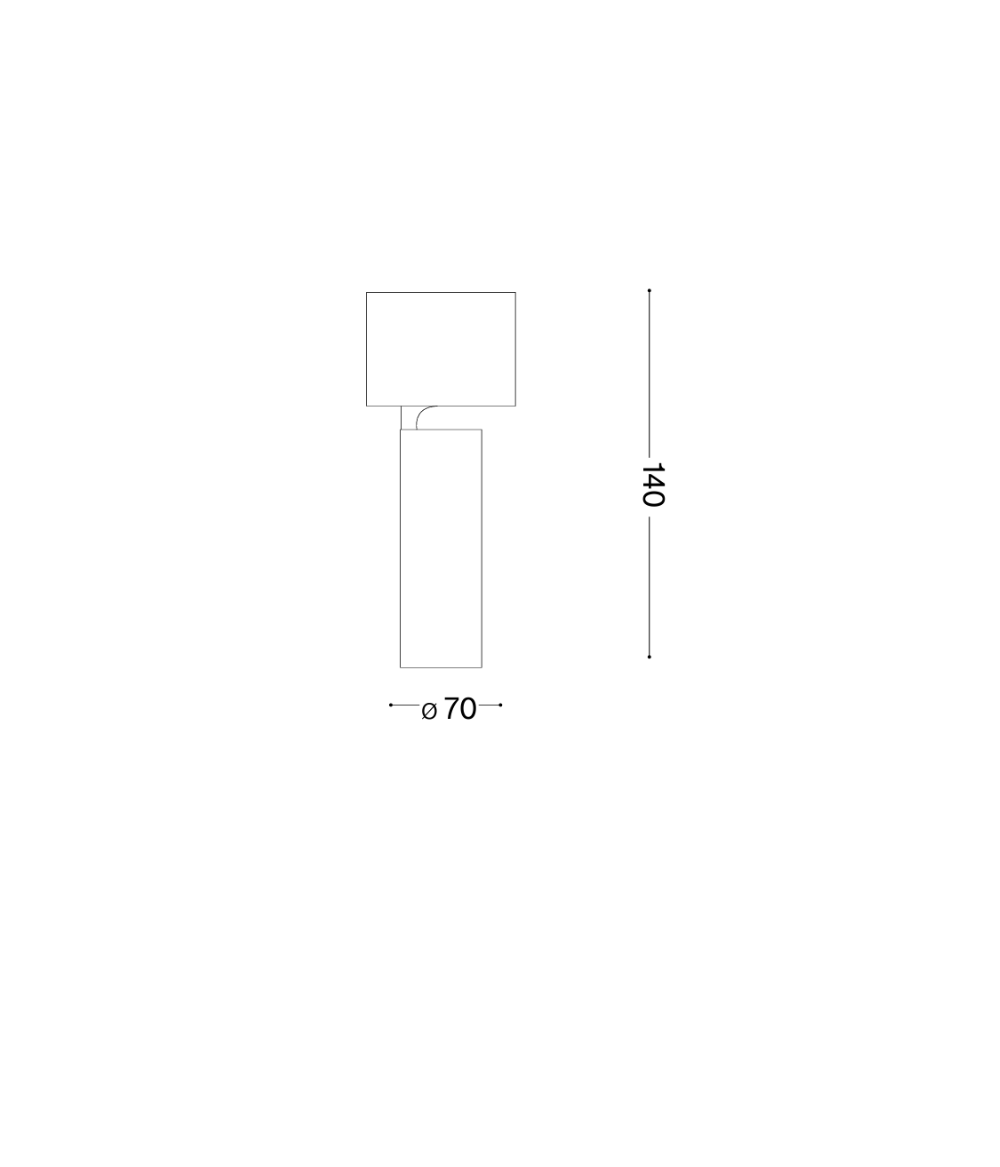

Dimensions
N/A
Brand
Colours
Materials
Source Included
LED
Color Temperatures
Lumen

Technical Sheet

Download

Assembly Instructions

Download

Energy Label

Download

Photometry LTD

Download

SKU: N/A Categories: ,
