IDEAL LUX OZ PL

380.80470.05 inc V.A.T.

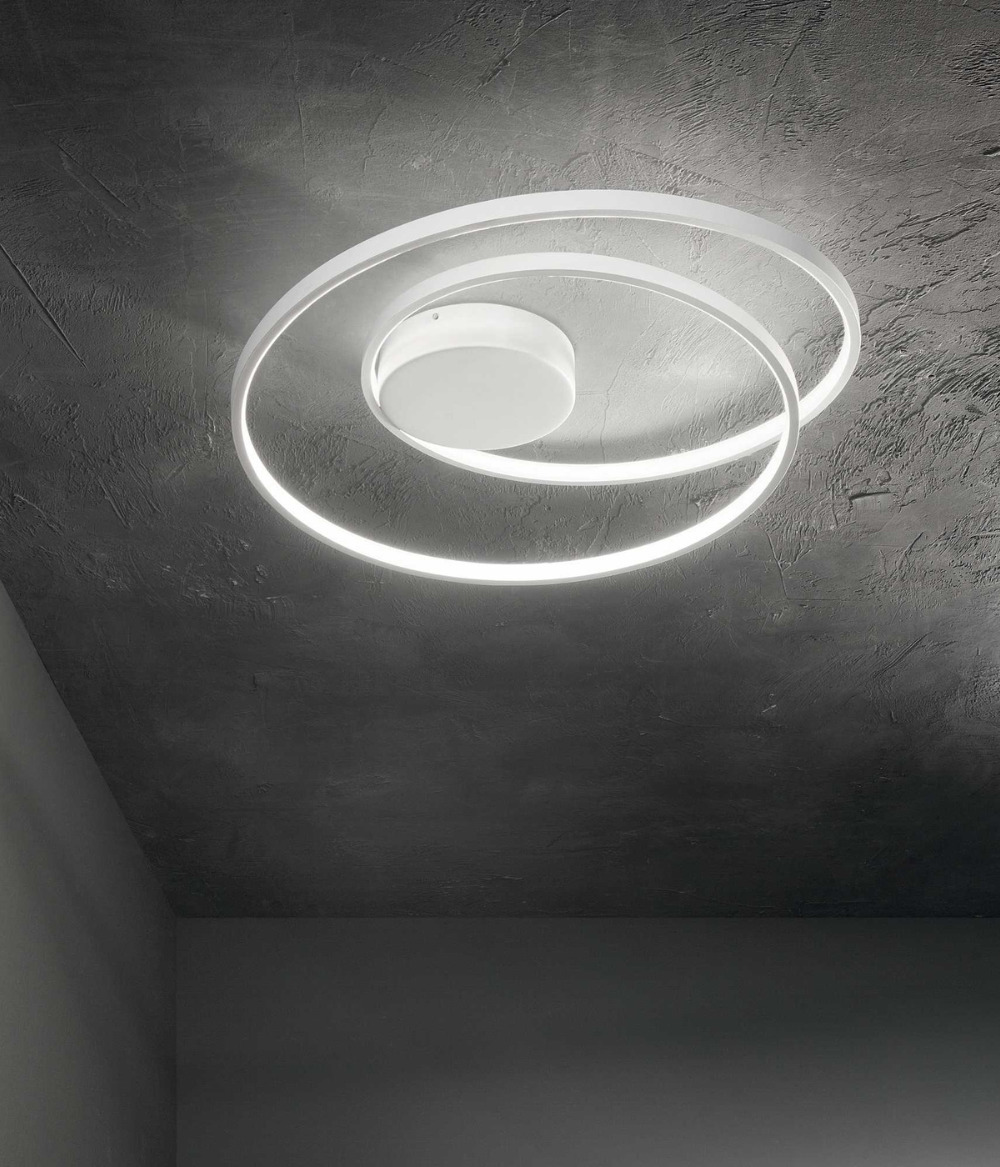

Indoor ceiling mounted lamp with integrated LED sources and diffuse light emission. DALI/Push dimmable version available.

Plated or powder coated metal base and frame. Opal rubber diffuser. Available finishes: white, black or brushed brass.

Technical Information

INFORMATION Oz PL
Power output 220-240 V AC 50/60 Hz
Power supply In-built, included YES (by qualified operators only), electronic
Protection index IP20
Integrated source Integrated LED module
Repleaceable source
Power LED 48W
Emission Diffuse
Max consuption Max 48W
Features LED LED SMD
CCT 3000 K
Duration LED (t. 25°c) 30000 h
CRI > 80
Light beam 120o
Light beam flux 5200 lm
Useful light flux 1920 lm
Photobiological risk 1
Standby power < 0.50
Weight
2.01 kg
Dimensions
60 × 60 × 18 cm
Brand
Colours
Materials
Source Included
Dimmable
Dimming Type
Color Temperatures
Lumen

OZ PL_Technical Sheet

Download

OZ PL_Assembly Instructions

Download
