IDEAL LUX Essence ap

216.58285.60 inc V.A.T.

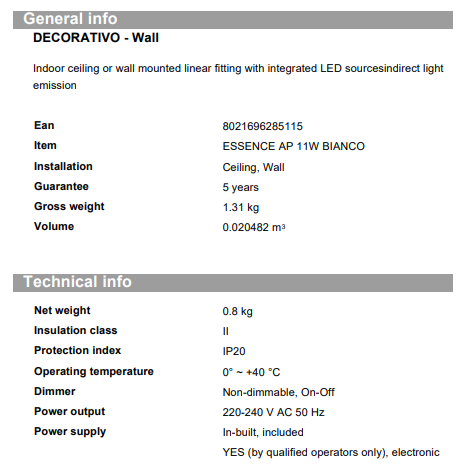

Indoor ceiling or wall mounted linear fitting with integrated LED sourcesindirect light emission.

Base and light body in powder-coated aluminium. Diffuser in opal acrylic material. Indirect light emission. Colors: white or black.

INFORMATION Essence ap d70 Essence ap d124
Power output 220-240 V AC 50 Hz 220-240 V AC 50 Hz
Power supply In-built, included Replaceable (by qualified operators only), electronic In-built, included Replaceable (by qualified operators only), electronic
Protection index (Insulation Class) IP20 ( II ) IP20 ( II )
Dimmer NO, On-Off NO, On-Off
Adjustability orizz. 0°-358° orizz. 0°-358°
Integrated source Integrated LED module Integrated LED module
Repleaceable source No No
Power LED 12,5 W LED 20 W
Emission Indirect Indirect
Max consuption max 12,50 W max 20,00 W
Features LED LED SMD LED SMD
CCT 3000 K 3000 K
Duration LED (t. 25°c) 30000 h 30000 h
CRI >80 >80
Light beam flux 1650 lm 2650 lm
Useful light flux 1320 lm 2130 lm
Photobiological risk 1 1
Weight
N/A

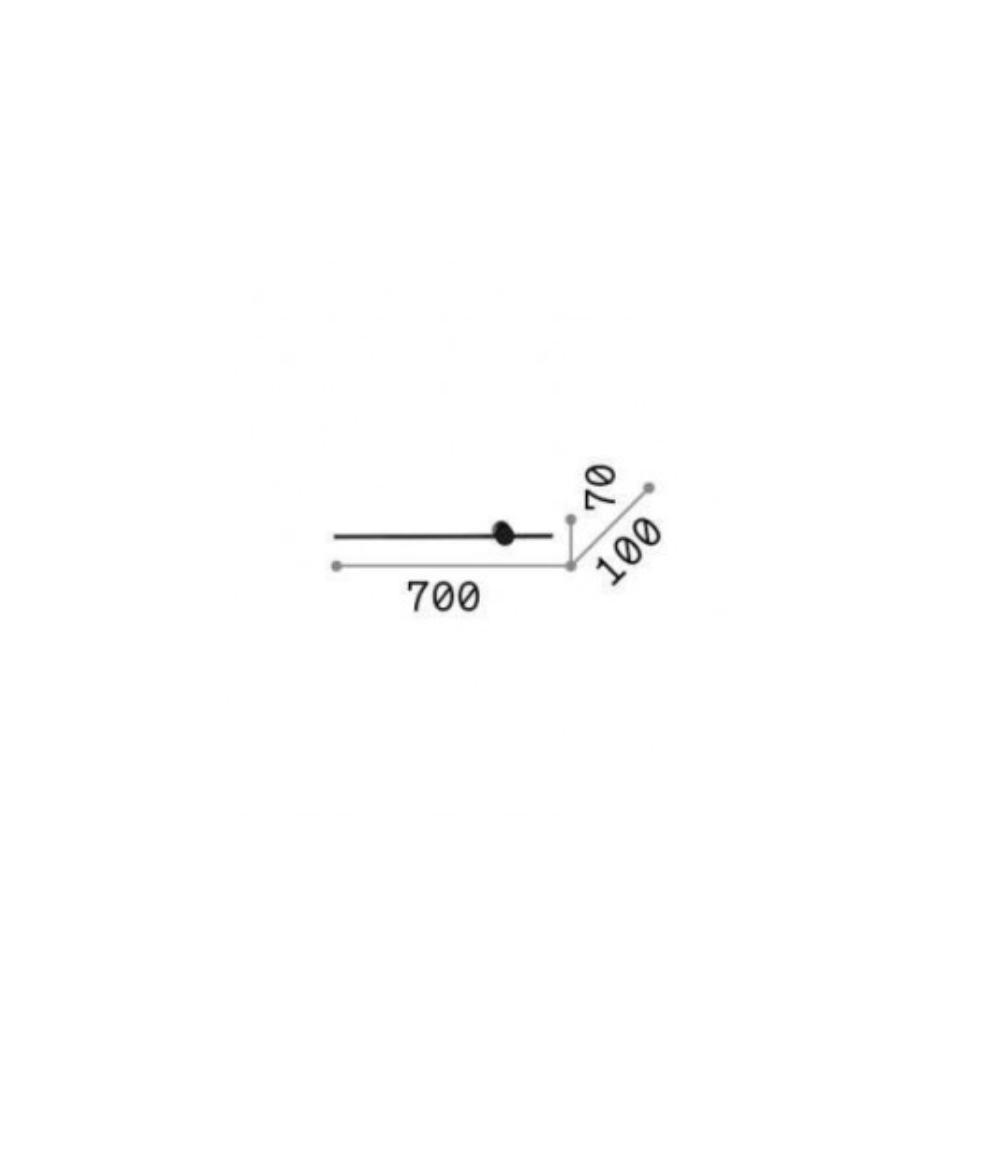

Dimensions
N/A
Brand
Length (cm)
Colours
IP Rating
Light Source
Source Included
Lumen
Color Temperatures

Data Sheet_IDEAL LUX Essence ap d70

Download

Data Sheet_IDEAL LUX Essence ap d124

Download

Assembly Instructions_IDEAL LUX Essence ap d124

Download
SKU: N/A Categories: ,
