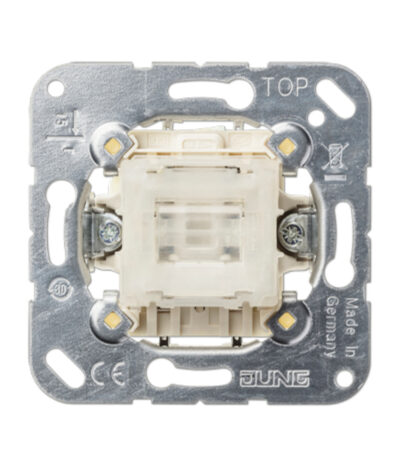

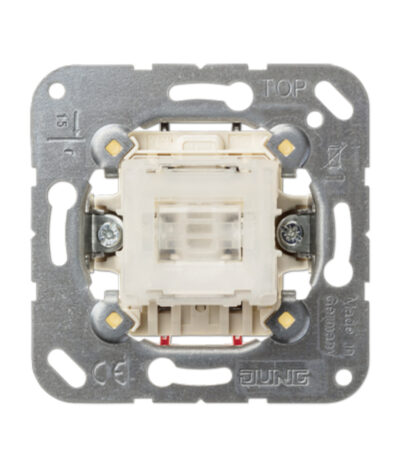

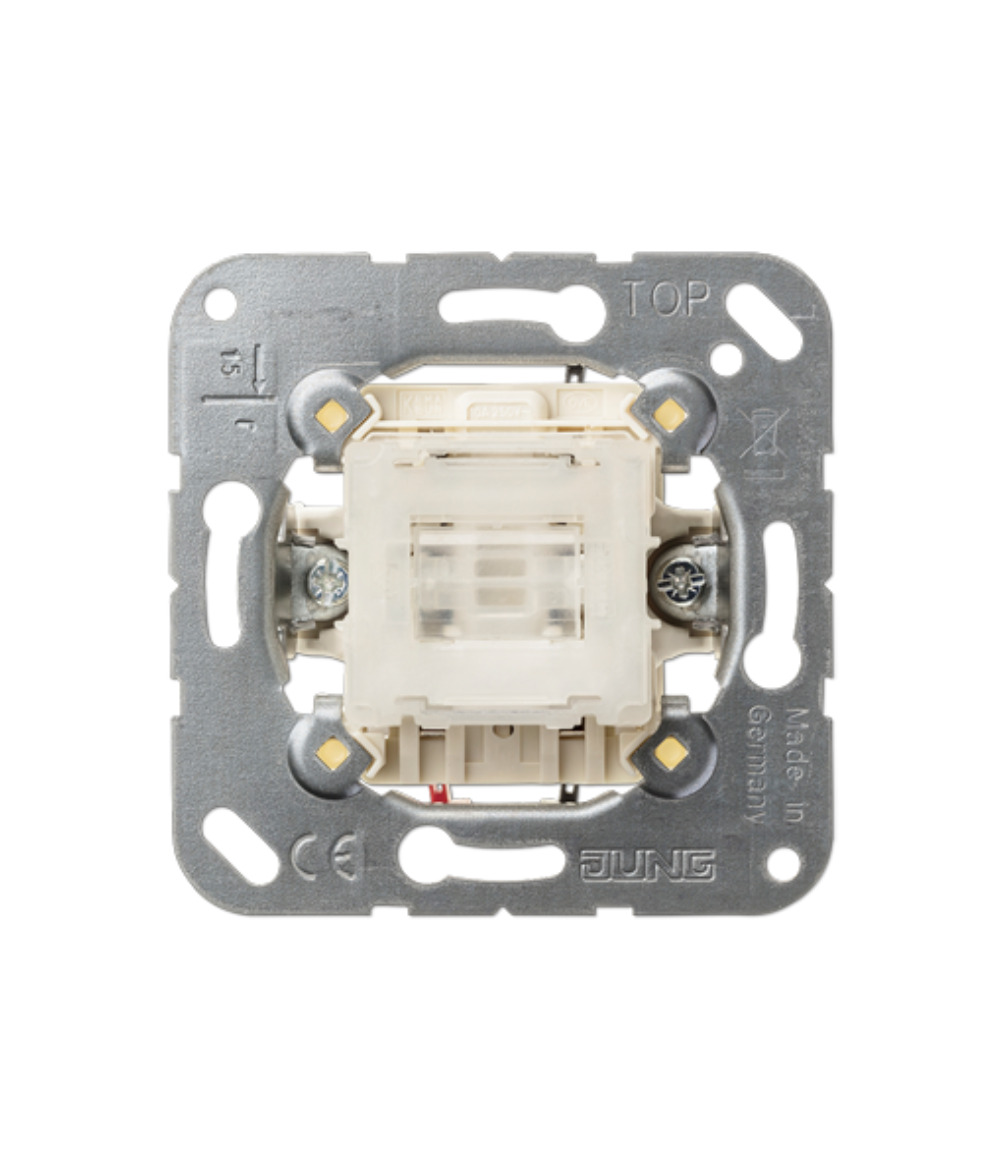

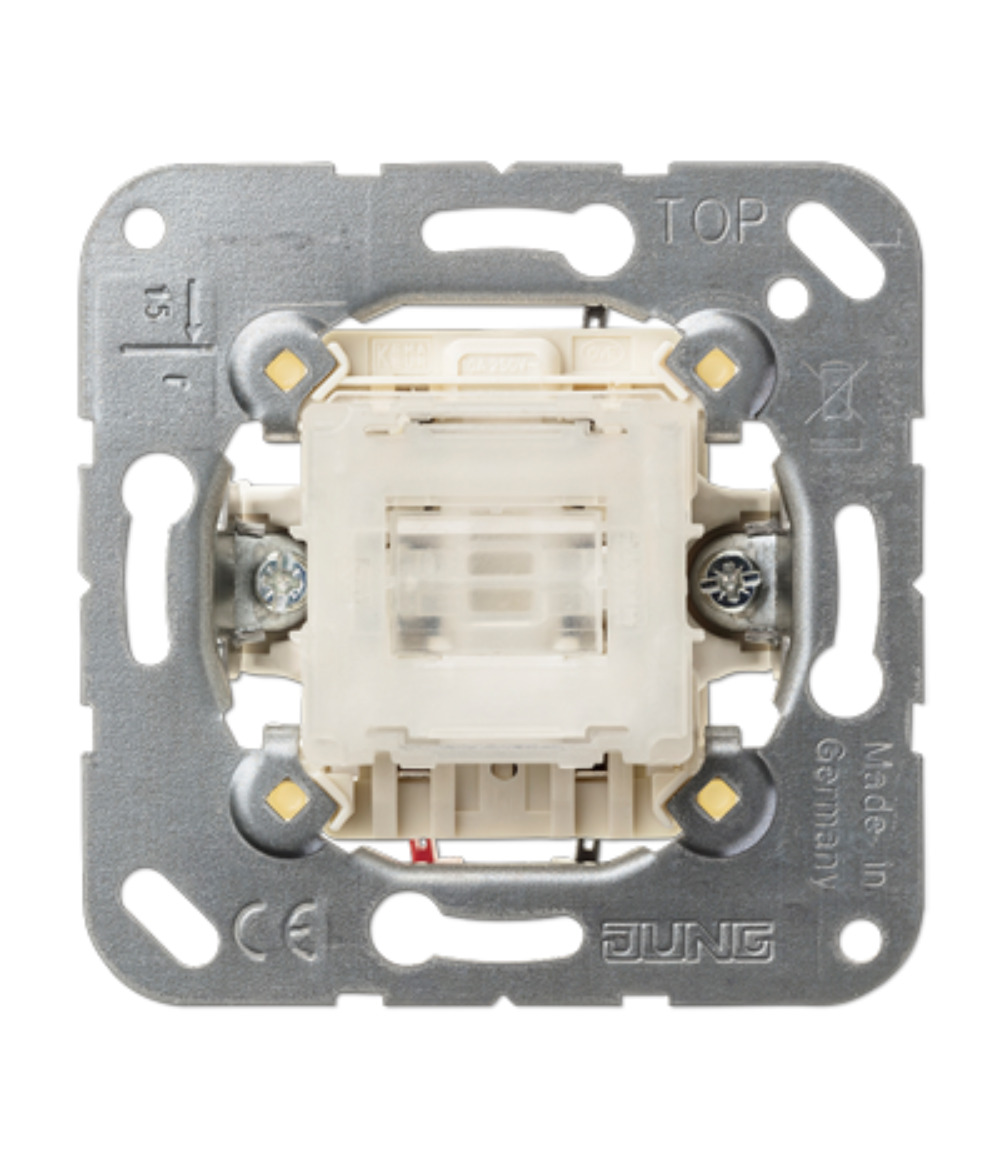

1-gang push switch (insert) 10 A / 250 V ~ 1-pole, 2-way

SKU: 506 TU

with screwless terminals for rigid wires up to 2.5 mm²

Rockers of push switches jump back to original position.
Can be converted into pull cord switch by means of pull cord insert ref.-no. 34 or 34 KO5.
without claws: ref.-no. with additional “E”, e.g.: 506 ETU

Switch can be illuminated in OFF-position with lamp ref.-no. 90/95 (230 V), 96-.. (low voltage), or LED lamp ref.-no. 90-LED.. (230 V) or 961248 LED.. (low voltage).

illumination not possible in 2-way and intermediate circuits
