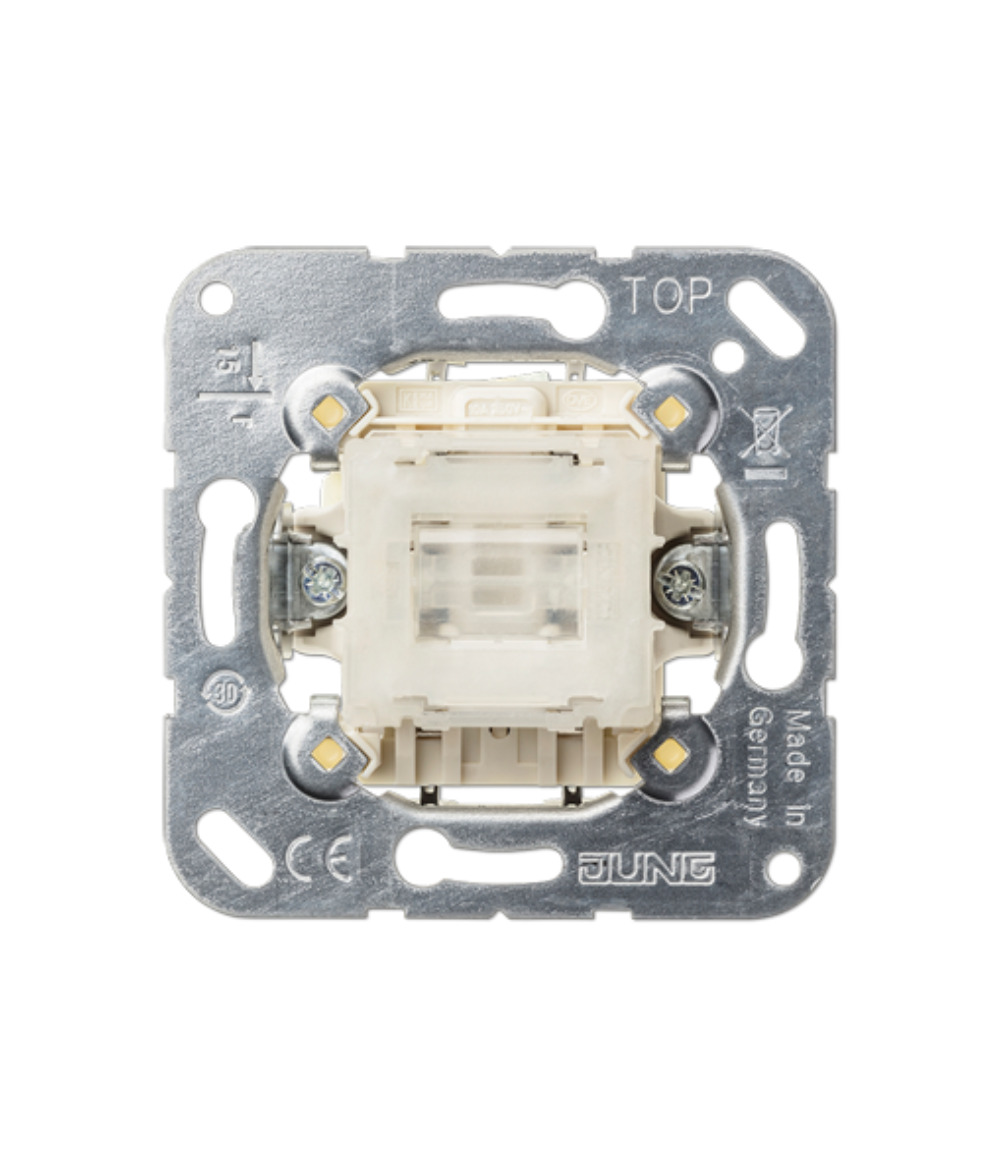

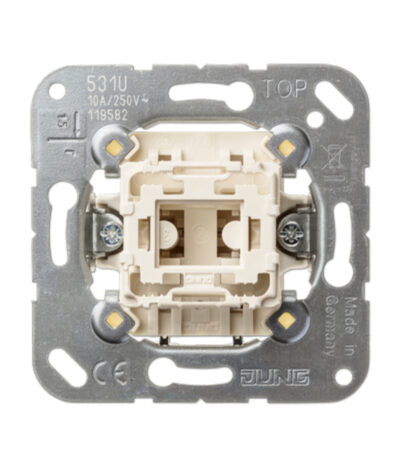

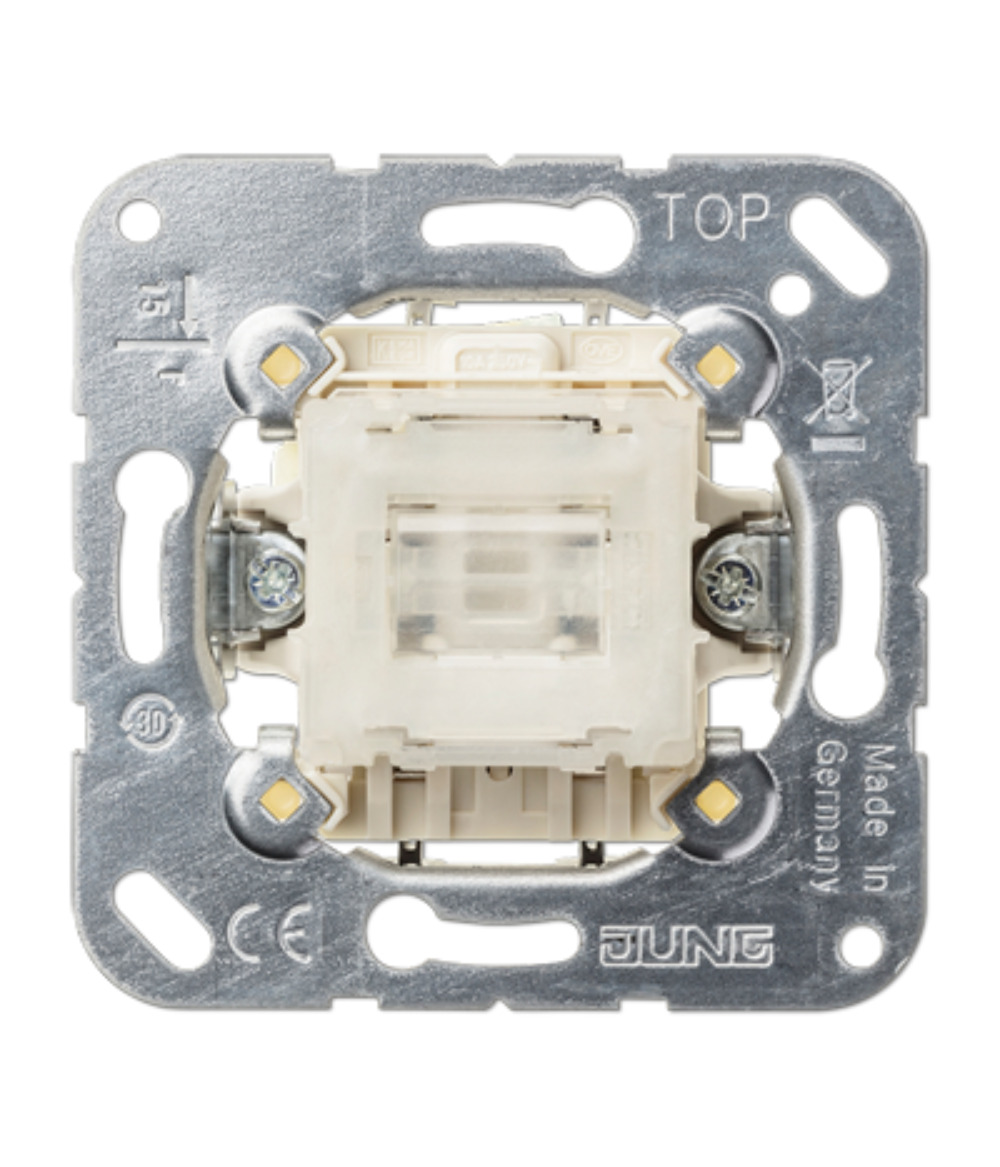

1-gang push switch (insert) 10 A / 250 V ~ 1-pole, 2-way with indicator light

with screwless terminals for rigid wires up to 2.5 mm²

neutral conductor required
with glow lamp ref.-no. 90
Rockers of push switches jump back to original position.
Can be converted into pull cord switch by means of pull cord insert ref.-no. 34 or 34 KO5.
without claws: ref.-no. with additional “E”, e.g.: 506 KOETU

Glow lamp can be replaced with LED lamp ref.-no. 90-LED.. (230 V) or 961248 LED.. (low voltage).
